Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER 500 6X6 (A10RF50AB) Polaris SERIES 10 RANGER FRONT HOUSING - A10RF50AB (4970927092D03) | FRONT HOUSING - A10RF50AB (4970927092D03)

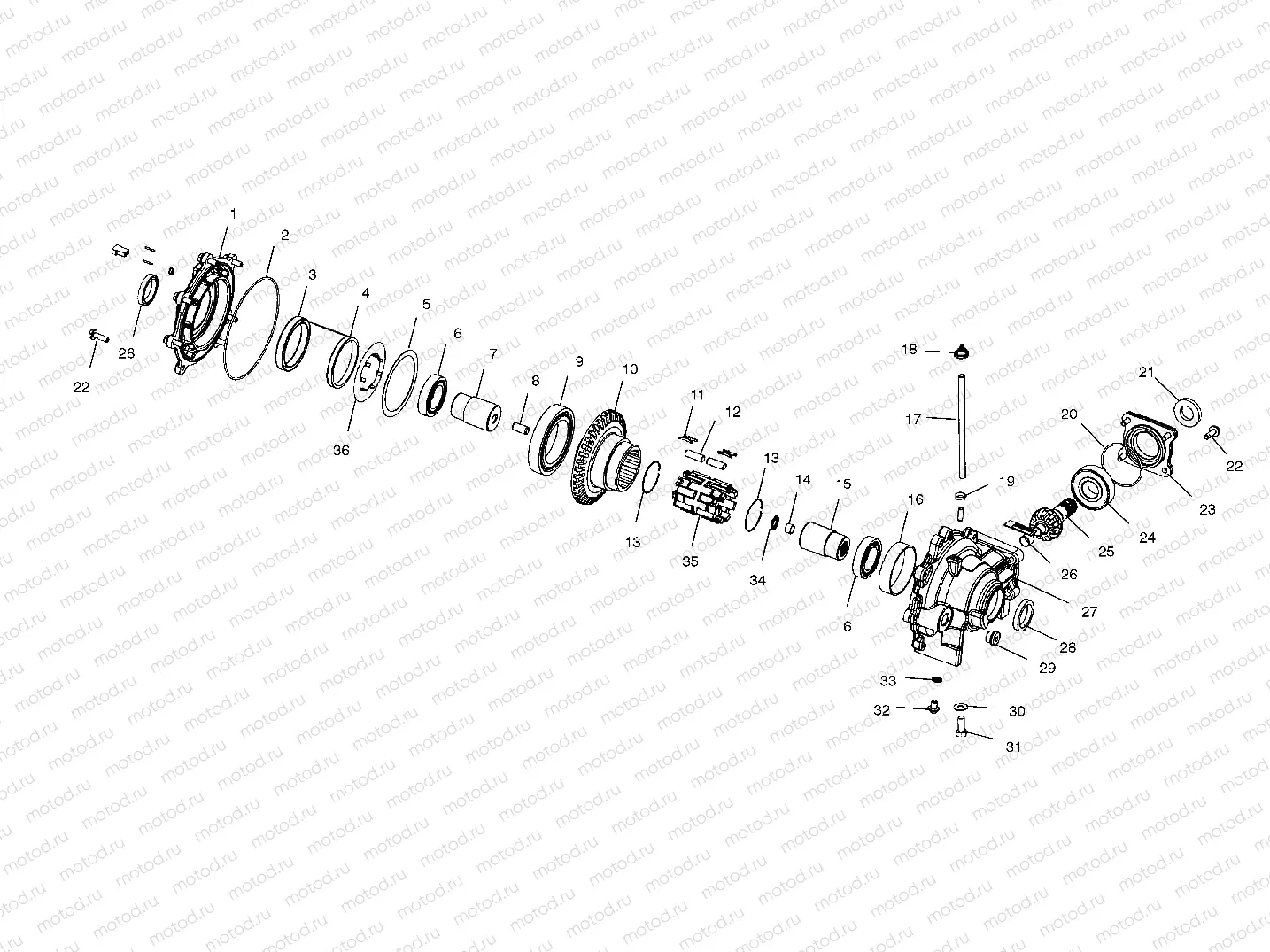

FRONT HOUSING - A10RF50AB (4970927092D03) | FRONT HOUSING - A10RF50AB (4970927092D03)

FRONT HOUSING - A10RF50AB (4970927092D03) | FRONT HOUSING - A10RF50AB (4970927092D03)

Например: 3233953

0

3233953

ASM-RACE/OUTPUT HUB

0

1332990

ASM-GEARCASE FRONT

0

3234455

ASM ROLL CAGE

0

3233954

ASM-CLUTCH

0

3233951

ASM-DRAIN PLUG

0

3233956

KIT-SEAL GEARCASE-FRONT

0

1332990

ASM-GEARCASE FRONT

0

1332990

ASM-GEARCASE FRONT

5

3233925

Kit, Shim Set [Incl. Shims]

6

3233926

BEARING-ROLLER BALL

8

3233928

Dowel pin

9

3233932

BEARING-ROLLER BALL

10

3233933

Clutch Housing/Ring Gear

11

3234096

SPRING-H-CLIP .008

12

3233957

KIT-ROLLER

13

3233934

RING-RETAINING WIRE FORM

17

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

18

7080693

CLAMP HOSE NYLON

19

7080307

CLAMP HOSE

22

3233955

KIT-BOLT

23

3234619

COVER-INPUT

24

3233945

BEARING-ROLLER BALL

25

3235387

KIT-GEAR HARD TURNED 62039U117

27

LR--

CALIPER, BRAKE, RH

29

3233942

PLUG-OIL FILL 3/4-16 HOLLOW

30

7552603

Rondelle (Lock)

31

7512492

Vis

34

3233929

BEARING-NEEDLE ROLLER THRUST

36

3234101

Plate, Armature
