Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER 500 6X6 (A10RF50AB) Polaris SERIES 10 RANGER FUEL SYSTEM - A10RF50AB (4970927092A11) | FUEL SYSTEM - A10RF50AB (4970927092A11)

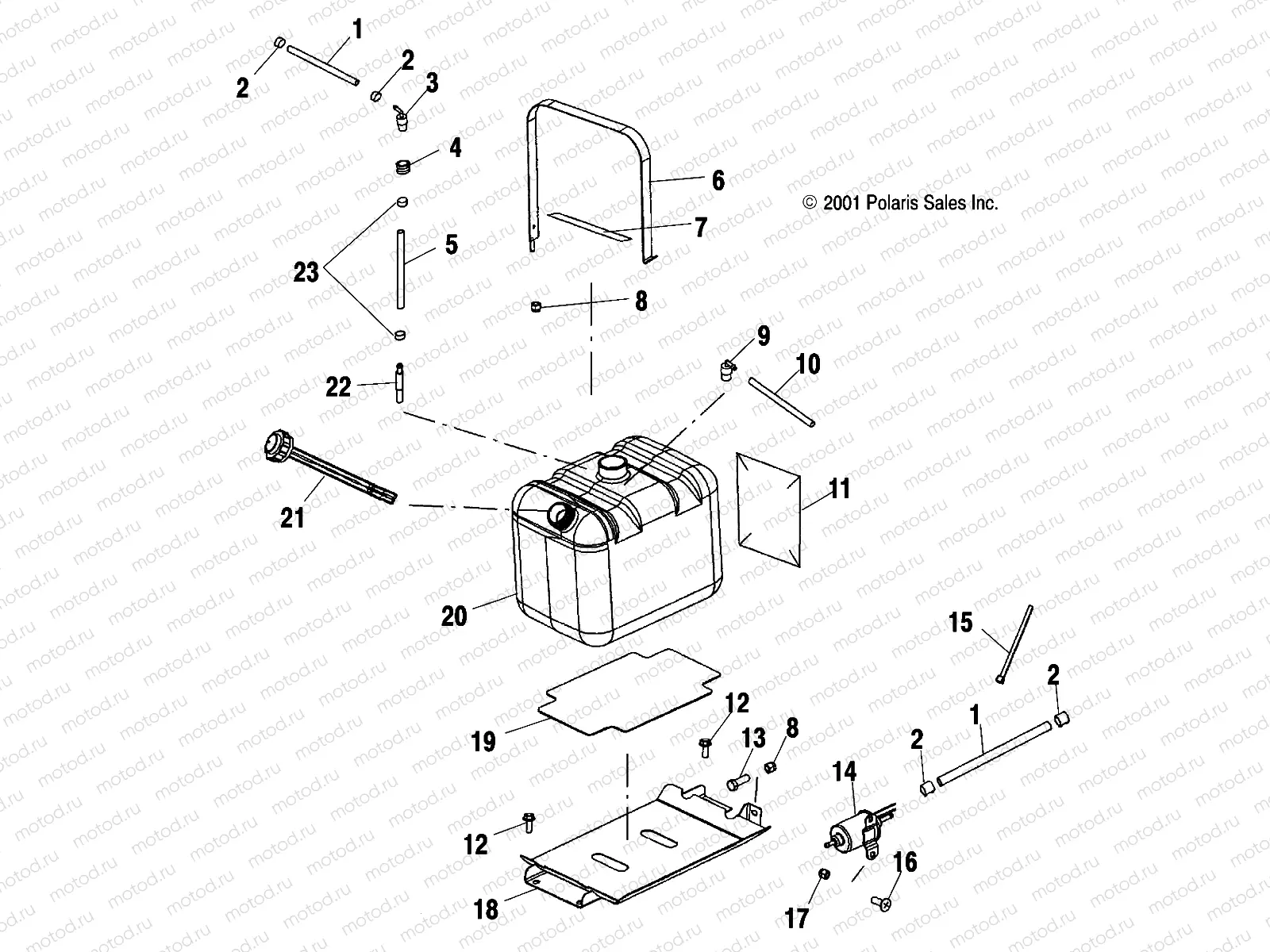

FUEL SYSTEM - A10RF50AB (4970927092A11) | FUEL SYSTEM - A10RF50AB (4970927092A11)

FUEL SYSTEM - A10RF50AB (4970927092A11) | FUEL SYSTEM - A10RF50AB (4970927092A11)

Например: 8450040-600

1

8450040-600

LINE FUEL 1/4 ID(600 CM.)

2

7080003

CLAMP HOSE

3

7052259

FITTING 1/4 90? DEX

4

7052362

GROMMET-FLANGED .36X.56X1.06

5

8350019-45

Tubing

6

1013471-067

TANK STRAP BLK.

7

5812231

Pad, Fuel Tank, Top

8

7542324

Nut (SELF-LOCKING)

9

7052095

FITTING 90 DEG 1/8

10

8360009-50

Line

11

5812252

FOIL-TANK

12

7512399

Vis

13

7515398

Vis

14

4011545

PUMP-FUEL 12V PRSS RELIEF 1-4P

15

7080138

CABLE TIE

16

7517264

Vis

17

7542122

NUT-NYLOK

18

5247174-067

BRKT-FUEL TANK MNT BLK

19

5812230

Pad, Bottom

20

1240085

ASM TANK-FUEL RANGER

21

1240119

CAP-GAS W/GAUGE

22

7052301

PICK-UP-FUEL W/FILTER 105MICRN

23

7080402

RING COMPRESSION
