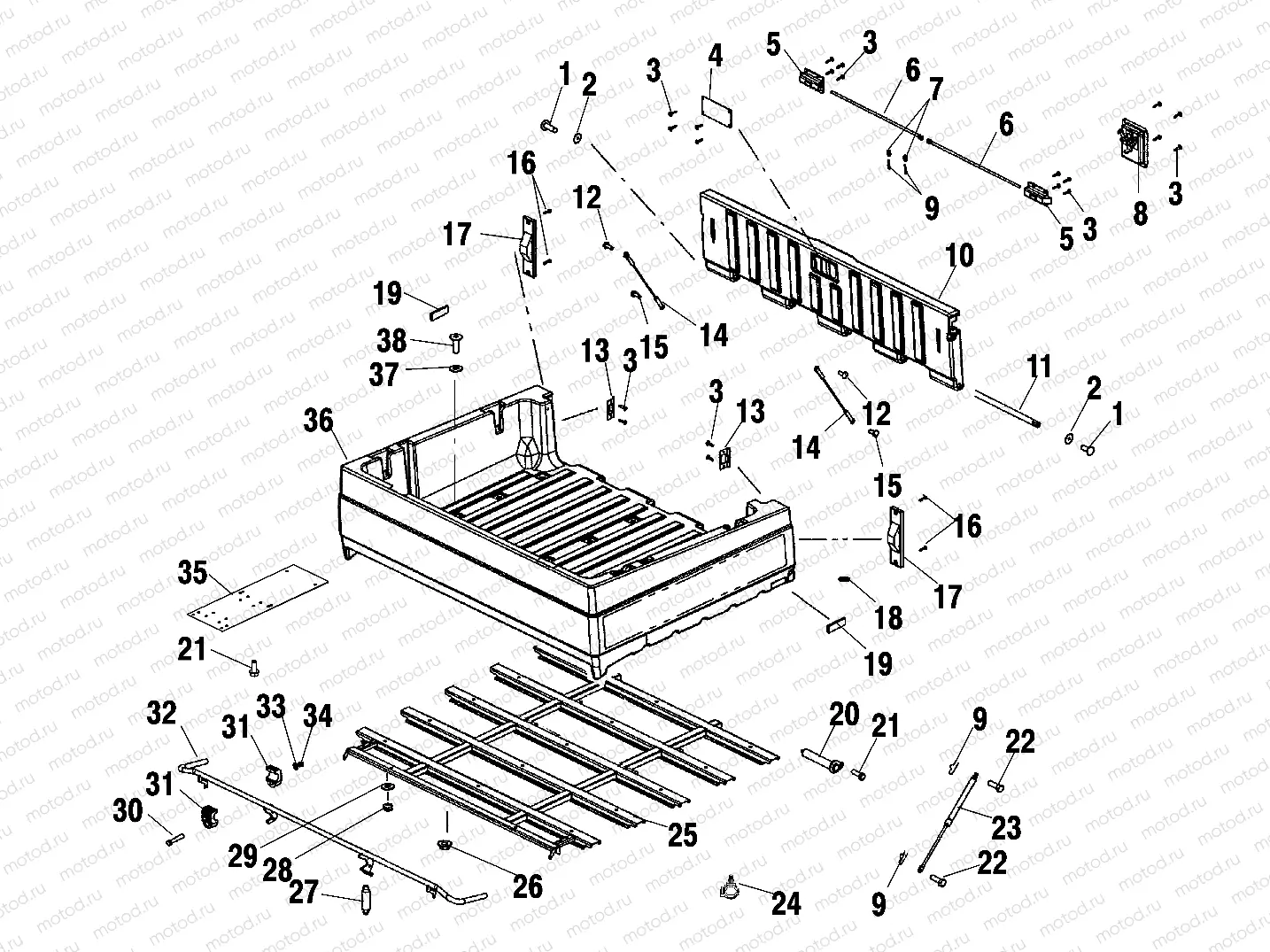

DUMP BOX - A10RF50AB (4970927092A08) | DUMP BOX - A10RF50AB (4970927092A08)

DUMP BOX - A10RF50AB (4970927092A08) | DUMP BOX - A10RF50AB (4970927092A08)

Например: 7515177

1

7515177

Vis

2

7555859

WASHER FLAT

3

7517561

Vis

4

5244068-067

COVER-TAILGATE BLK

5

5433656

LATCH FLSHBLT TLGATE BLK

6

5132810

Shaft, Tailgate Latch

7

7556143

WSHR RUBBER W/METAL BACK

8

5433655

LATCH PADDLE T-GATE BLK

9

7661644

PIN HITCH

10

5433951

Tailgate

11

5132811

Rod, Hinge, Tailgate

12

7517742

SCREW1/4-20X3/4PA PN LK G2-Y

13

5243304

BRKT-BOX LATCH

14

7081001

CABLE-TAILGATE RANGER

15

7517938

SCREW-1/4-20X2

16

7517790

SCR #10X3/4 HI/LO

17

4010340

BULB TAILLIGHT

17

2410322

ASM-TAILIGHT W/BRAKE LIGHT NP

18

5411009

PLUG HOLE

19

7079925

DECAL-REFLECT.2.88 RED

20

1016695-329

WELD-PIN BOX HINGE BLK

21

7517386

Vis

22

7661037

PIN CLEVIS

23

7041996

SHOCK-DUMP BOX 19.50

24

7670116

CLIP ROUTING .472 B.D. HINGED

25

1013634-067

"""WELD-BOX BASE 6X6 BLK"""

26

7547089

NUT-3/8-16 FLG LOCK-Y

27

7041687

Spring

28

5410414

BUMPER RUBBER

29

7555788

WASHER THRUST

30

7515319

Vis

31

5434226

BUSHING-BOX LATCH

32

1013814-067

Latch, Box [6x6]

33

7558402

WASHER FLAT

34

7542324

Nut (SELF-LOCKING)

35

5246389

Shield, Exhaust, Box

36

5434639-070

Box [6x6]

37

7556157

WASHER .391X1.25X.105-M

38

7517959

SCR-3/8-16X1
