Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER 500 6X6 (A10RF50AB) Polaris SERIES 10 RANGER CHASSIS/BODY - A10RF50AB (4970927092A04) | CHASSIS/BODY - A10RF50AB (4970927092A04)

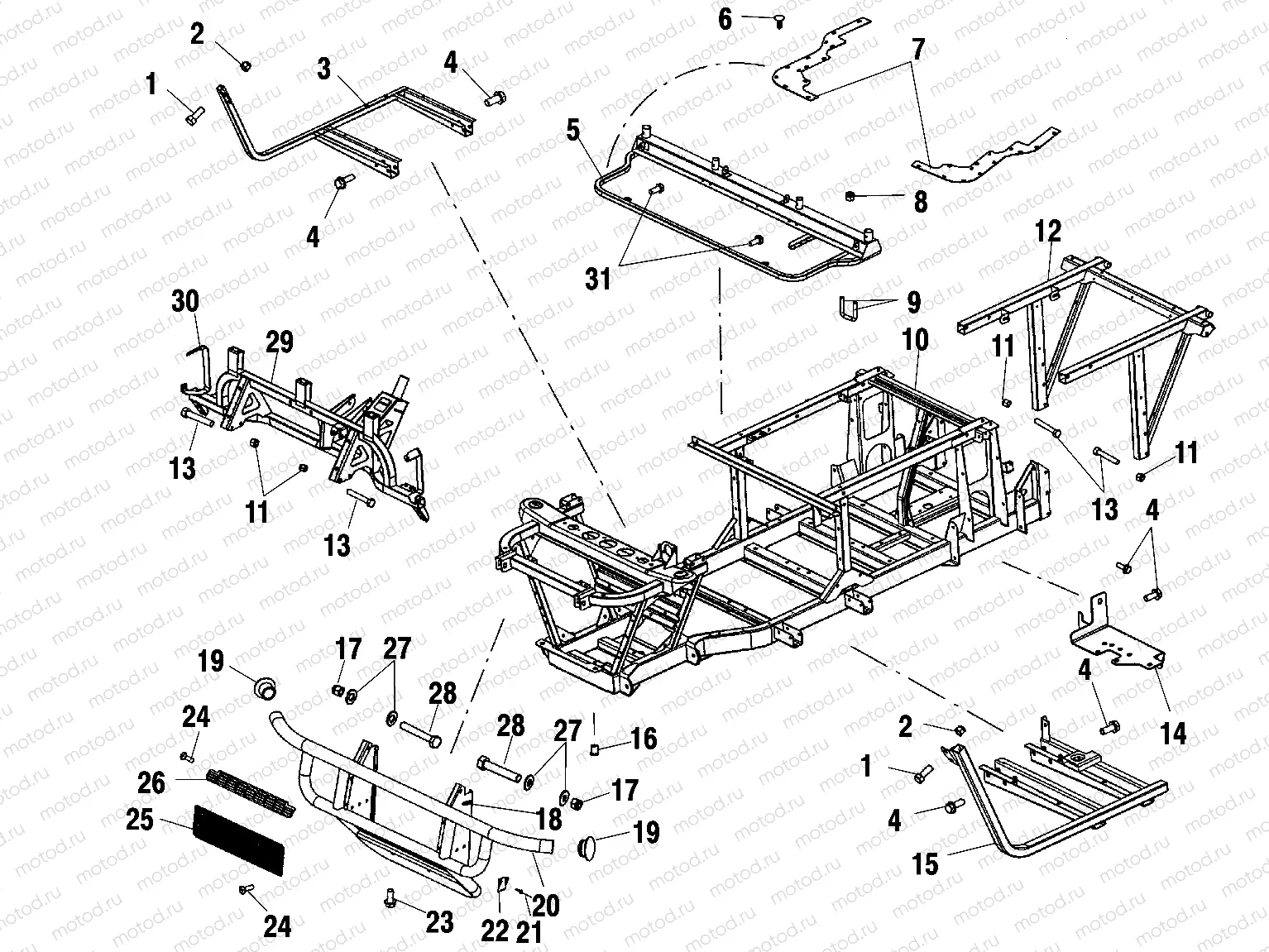

CHASSIS/BODY - A10RF50AB (4970927092A04) | CHASSIS/BODY - A10RF50AB (4970927092A04)

CHASSIS/BODY - A10RF50AB (4970927092A04) | CHASSIS/BODY - A10RF50AB (4970927092A04)

Например: 7515522

1

7515522

Vis

2

7542449

NUT FLANGE LOCK

3

1013374-067

Support, Floor, RH

4

7515399

Vis

5

LR--

CALIPER, BRAKE, RH

6

7670090

CLIP PLASTIC DART NYLON

7

5434028

Panel, Seat Frame Floor Cover

8

7542451

NUT NYLOK

9

5245209

U-Bolt

10

1013633-067

"""WELD-FRAME MAIN BLK"""

12

1013747-067

Extension, Frame [6x6]

13

7515415

Vis

14

5246110-067

BRKT-OIL TANK SUPPORT BLK

15

1013373-067

Support, Floor, LH

16

7547182

Nut, Insert [If built to 7/07/03]

17

7542439

Nut (SELF-LOCKING)

18

7175521

DECAL-REFLECTOR AMBER

19

5434191

CAP-BUMPER

20

1013485-067

Bumper

21

7621334

RIVET

22

5430733

CUP HOOD LATCH

23

7515547

Vis

24

7517685

Vis

25

5245329-067

PLATE-GRILLE BUMPER UPPER BLK

26

5245626-067

Plate, Grill, Bumper, Top (AA)

27

7555801

Rondelle

28

7517583

SCR-3/8-24X2 HX/CP GR5-Y-SP

29

1013375-067

Support, Cab, Front

30

7547069

NUTSERT HEX

31

7512399

Vis
