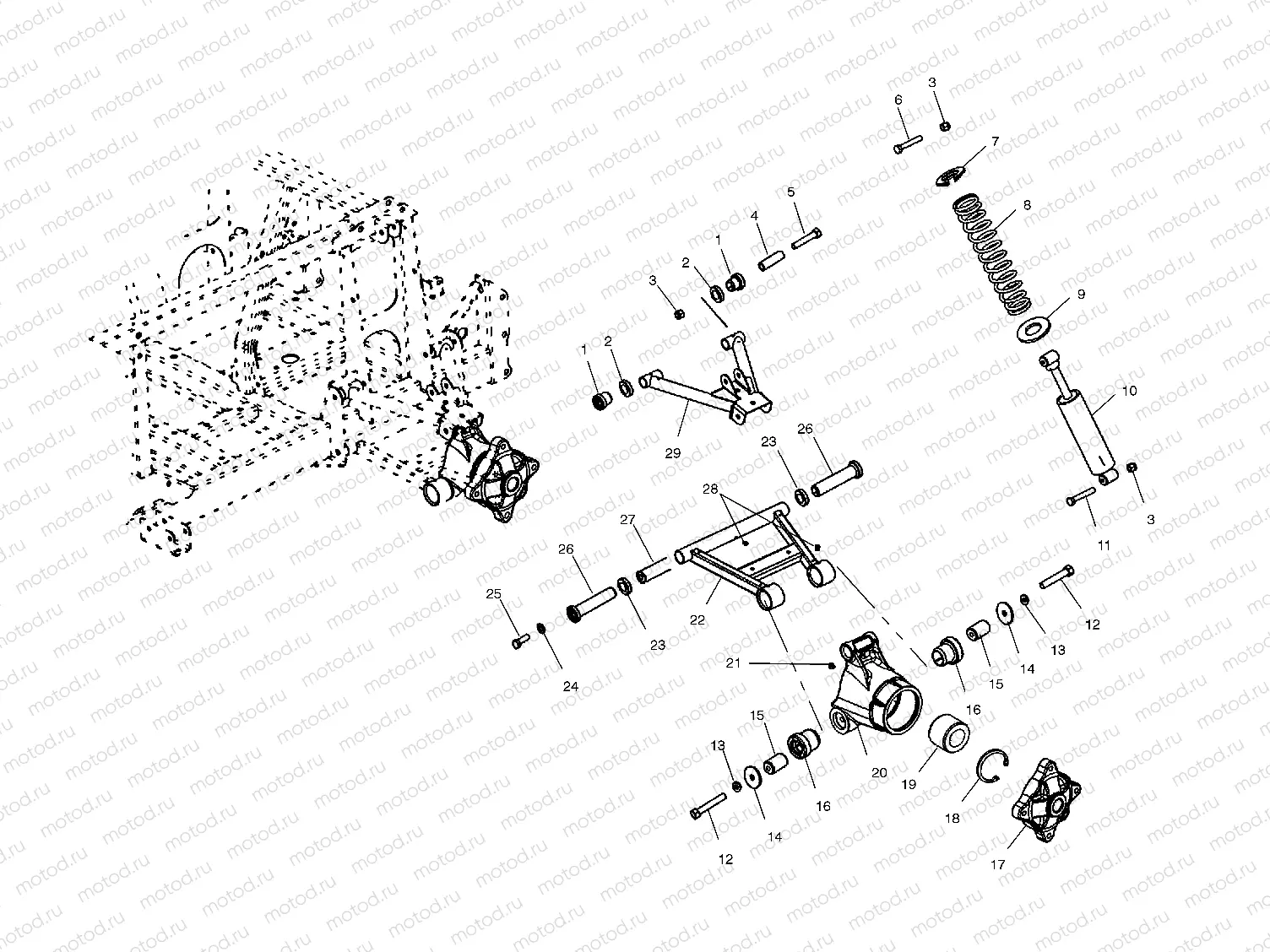

MID DRIVE A-ARMS - A10RF50AB (4970927092C07) | MID DRIVE A-ARMS - A10RF50AB (4970927092C07)

MID DRIVE A-ARMS - A10RF50AB (4970927092C07) | MID DRIVE A-ARMS - A10RF50AB (4970927092C07)

Например: 5439270

1

5439270

BUSHING-A-ARM-SHORT BLK

2

5020677

BUSHING A-ARM SPACER

3

7542439

Nut (SELF-LOCKING)

4

5020826

SHAFT A-ARM SHORT

5

7515472

Vis

6

7515433

Vis

7

5251753

RETAINER-SPRING STEEL

8

7042169-067

SPRING-MIDDLE AXLE BLK

9

7556142

WASHER 2.085X2.88X.135

10

7042078

SHOCK-MIDDLE AXLE

11

7515415

Vis

12

7517297

Vis

13

7552603

Rondelle (Lock)

14

7555936

Rondelle

15

7512589

Vis

16

5438902

BUSHING-CONTROL LOWER BLK

17

5131649

HUB,R.WHEEL,MACH

18

7710440

RING RETAINING

19

3514635

BEARING-WHEEL 40X74X40MM

20

5134206

CARRIER-BEARING WHEEL(MACH)

21

7080586

FITTING LUBE 45 DEG.

22

1013666-067

A-Arm, Mid, Lower

23

5132532

BUSHING-.970 X 1.38 X .250

24

7553101

Rondelle (Lock)

26

5434547

BUSHING-A-ARM .760X.952 BLK

27

5133676

SHAFT-A-ARM

28

7080433

FITTING LUBRICATION THREADED(1

29

1013665-067

A-Arm, Mid, Upper
