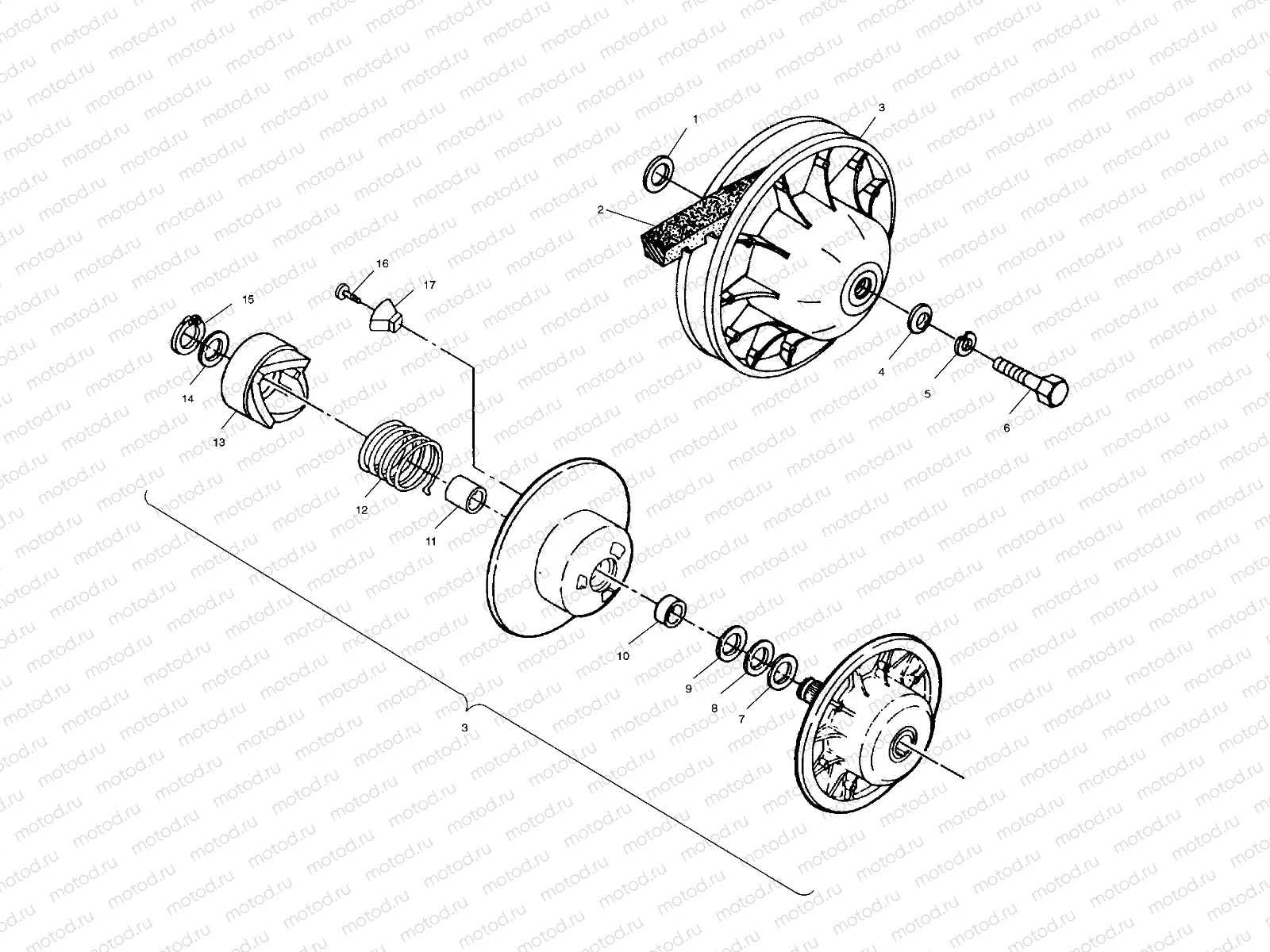

Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER 500 6X6 (A10RF50AB) Polaris SERIES 10 RANGER DRIVEN CLUTCH - A10RF50AB (4970927092C10) | DRIVEN CLUTCH - A10RF50AB (4970927092C10)

DRIVEN CLUTCH - A10RF50AB (4970927092C10) | DRIVEN CLUTCH - A10RF50AB (4970927092C10)

DRIVEN CLUTCH - A10RF50AB (4970927092C10) | DRIVEN CLUTCH - A10RF50AB (4970927092C10)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

3211113

Courroie

3

1322072

ASM-DRIVEN CLUTCH

4

5220646

WASHER DOMED

5

7552901

Rondelle (Lock)

6

7515382

Vis

7

7555898

WASHER-1.5X2.0X.020-Y

8

7556076

WASHER-1.50X2.00X.025-Y

9

7556804

WSHR-1.505X2.00X.030-Y

10

3576504

BUSHING MOVEABLE 1/2 INCH

11

3576511

BUSHING MOVEABLE 1 INCH

12

7041499

SPRING CLUTCH SVR.

13

5132344

RAMP STA COMP (MACH)

14

5210752

SPACER .020

15

7710448

RING RETAINING

16

7511854

Vis

17

5450873

BUTTON (3)
