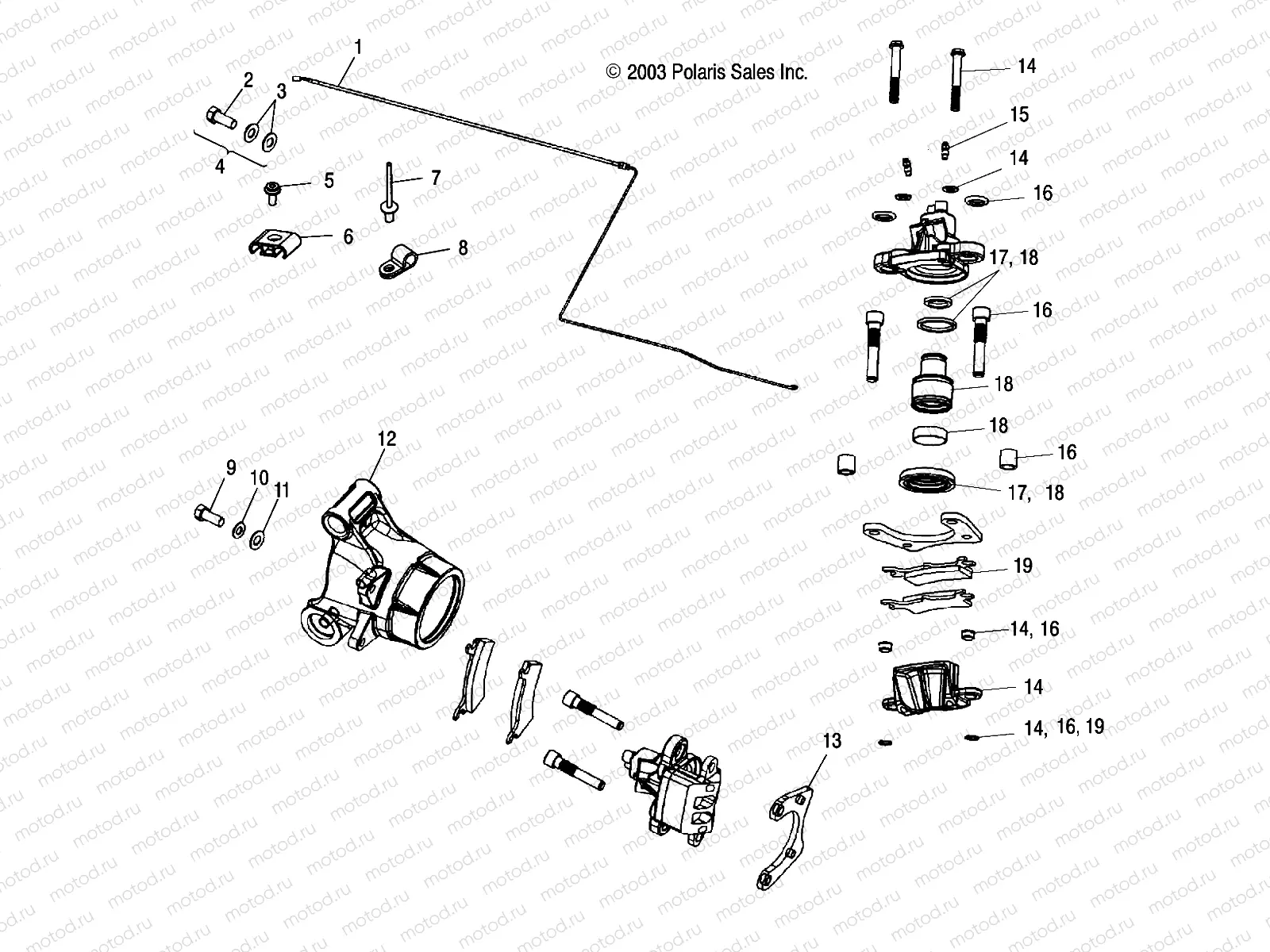

REAR CALIPER - A04CH42AQ/AR/AS/AT/AV (4987258725B09) | REAR CALIPER - A04CH42AQ/AR/AS/AT/AV (4987258725B09)

REAR CALIPER - A04CH42AQ/AR/AS/AT/AV (4987258725B09) | REAR CALIPER - A04CH42AQ/AR/AS/AT/AV (4987258725B09)

Например: 1910690

0

1910690

ASM-CALIPER DH4P W/INS PADS-RE

1

1910760

LINE-BRAKE REAR CALIPER

2

1910499

BOLT-BANJO 10MMX1.00

3

5413212

SEAL-STAT-O-3/8 70EP

4

2202660

KIT-LINE BRAKE RR FROM J/B

5

7517756

SCREW 10-24X5/8

6

7670126

CLIP-RETAINING DUAL .250 LINE

7

7621462

RIVET

8

7080960

CLAMP-CABLE NYLON 5/16

9

7512365

SCREW CAP

10

7552901

Rondelle (Lock)

11

7558402

WASHER FLAT

12

LR--

CALIPER, BRAKE, RH

13

1910529

BRACKET-CALIPER DH4P Z120-5866

14

2201873

ANVIL BODY-KIT

15

1910538

FITTING-BLEED COMPACT

16

2201870

SLIDE BOLT-KIT DH4P

17

2201872

SEAL KIT DH4P

18

2201869

PISTON/SEAL-KIT DH4P

19

2202414

Plaquette de frein
