Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV Polaris 2004 ATV AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02) | AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02)

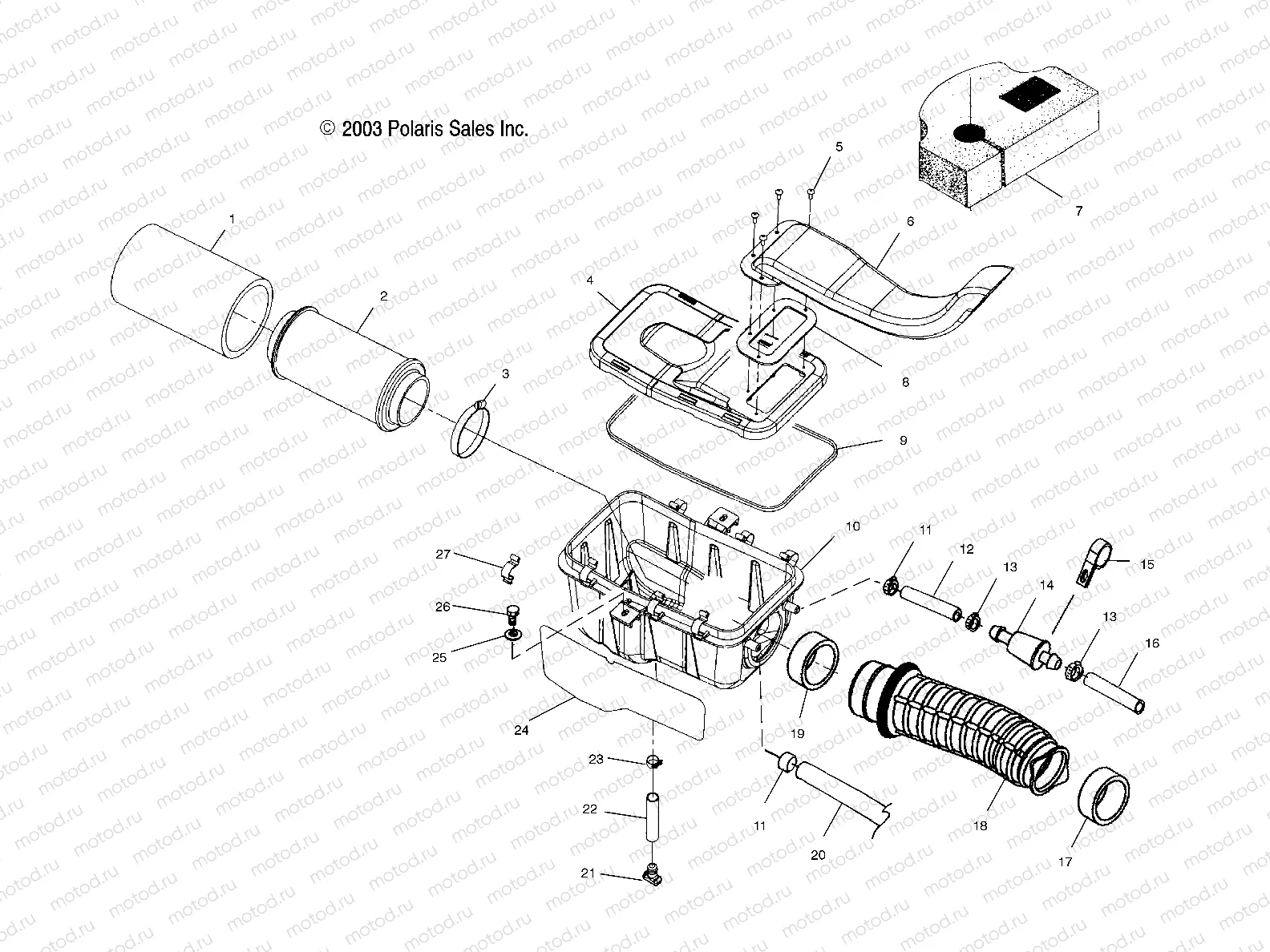

AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02) | AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02)

AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02) | AIR BOX - A04CH42AQ/AR/AS/AT/AV (4987258725B02)

Например: 5811633

1

5811633

FILTER PRECLEAN SLEEVE

2

7082101

FILTER-AIR INTAKE

3

7080413

CLAMP BAND NARROW

4

5432868

COVER AIRBOX

5

7517317

Vis

6

5436937

DUCT-AIR INLET

7

5811626

SEAL FOAM

8

5411422

GASKET INTAKE

9

5813949

SEAL-AIRBOX COVER

10

5433387

BOX AIR

11

7080699

CLAMP HOSE

12

8450073-600

LINE BREATHER 3/8 ID.

13

7080544

CLAMP HOSE

14

2530029

FILTER BREATHER IN LINE

15

7080913

CLAMP-P STL 1 BDL DIA-B

16

5411858

HOSE BRTHR FORMED 500CC

17

7080694

CLAMP HOSE SPRING

18

5412283

BOOT-CARB 34MM

19

5433847

SLEEVE-CARB INNER

20

5413003

BREATHER-LINE-115 CM SLIT

21

5435299

PLUG-TRAP

21

5432377

PLUG TRAP

22

8450059-150

FUEL LINE

23

7080650

CLAMP HOSE

24

5811650

FOIL

25

7555859

WASHER FLAT

26

7515179

Vis

27

5242044

CLIP
