Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV Polaris 2004 ATV MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13) | MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13)

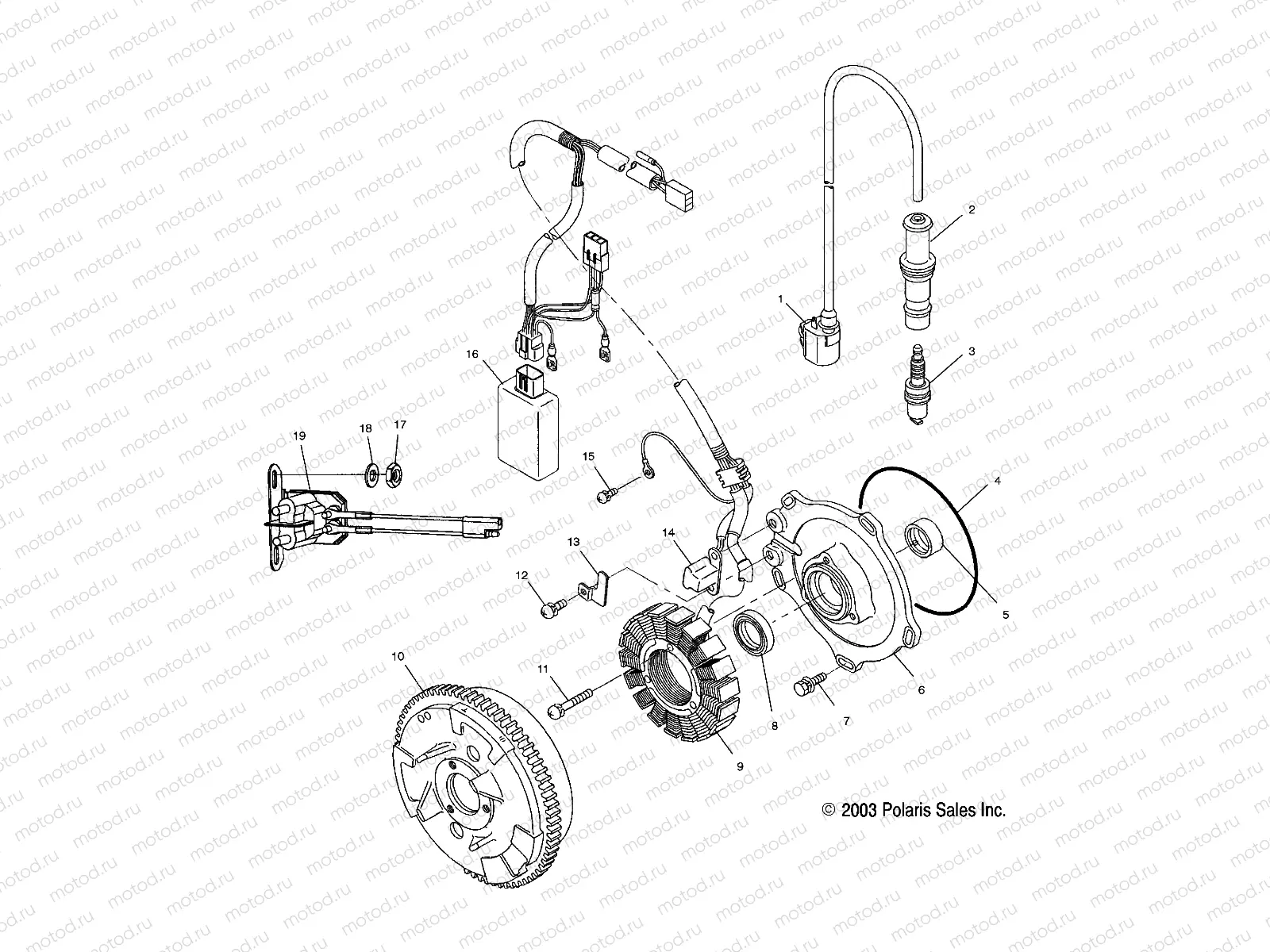

MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13) | MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13)

MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13) | MAGNETO - A04CH42AQ/AR/AS/AT/AV (4987288728D13)

Например: 3089239

1

3089239

ASM. IGNITION COIL

2

3084980

Spark plug cap

3

3070175

Bougie d'allumage

4

3084978

O-Ring

5

3084972

BEARING METAL

6

3089248

PLATE

6

3089572

ASM. PLATE

7

3081657

BOLT&WASHER ASM.

8

3084973

SEAL OIL

9

3089249

STATOR

10

3089247

FLYWHEEL-W/RING GEAR

11

3089251

ASM-SCREW AND WASHER

12

3084976

SCREW&WASHER ASM.

13

3089250

BAND-PULSE

14

3089254

COIL-PULSER

15

3081256

SCREW&WASHER ASM

16

3089238

CDI SYSTEM

17

7547283

NUT-1/4-20 HX JAM-Y

18

7552801

Rondelle (Lock)

19

4011335

SWITCH-MAGNETIC
