Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV Polaris 2004 ATV FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05) | FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05)

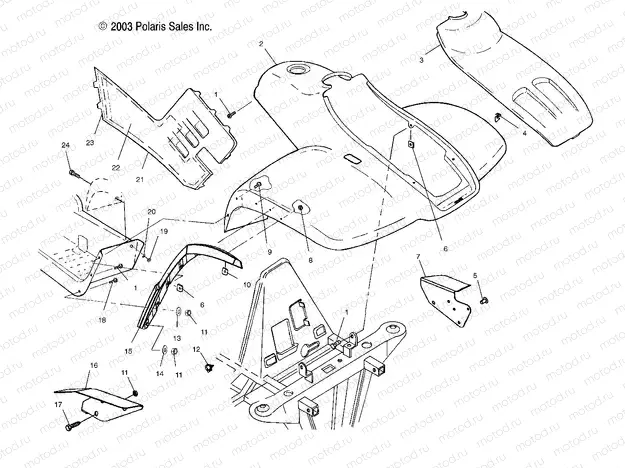

FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05) | FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05)

FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05) | FRONT CAB - A04CH42AQ/AR/AS/AT/AV (4987258725A05)

Например: 7517312

1

7517312

Vis

2

2632818-456

ASM-CAB FR.SVC SHADOW GRSS SUB

2

2632748-400

Cab, Front [AA]

2

2632818-455

Cab, Front, Break-Up [AT]

2

2632748-341

Cab, Front [AG]

2

2632748-053

Cab, Front,Med. Yellow (AR)

3

5435110-341

Cover, Front, Sonic Blue Met (If built after 5/01/03)(AA)(FA)

3

5435166-455

COVER-FR N.B.U.SUB.CAMO

3

5435110-400

COVER-FRONT CAMO GREEN MET

3

5435166-456

Cover, Front, Shadowgrass [AV]

3

5435110-053

Cover, Front, Med. Yellow (AR)

4

7670085

CLIP SPRING

5

7621509

RIVET PLASTI-LOCK

6

7670057

NUT SPEED

7

5246872

GUARD SPLASH LH

8

7670135

NUT-SPEED 3/16

9

7512232

Vis

10

7670156

CLIP-RETAINING BARBED

11

7542122

NUT-NYLOK

12

4020139

CLIP ROSEBUD

13

7556034

Rondelle

14

7555859

WASHER FLAT

15

5434703-070

GUARD-MUD FRONT RH BLK

15

5434702-070

GUARD-MUD FRONT LH BLK

16

5246021-067

GUARD-SPLASH RH BLK

17

7512126

Vis

18

7515158

Vis

19

7541925

NUT NYLOK 10-24 Y

20

7555792

Rondelle

21

5435322-053

Panel, Side, Med. Yellow, LH (AR)

21

5435335-455

PANEL-SIDE LH N.B.U. SUB CAMO

21

2632819-455

Panel/Foil, Break-Up, RH [AT]

21

2632471-400

Panel/Foil, RH [AA]

21

2632471-053

Panel/Foil, Yellow, RH (AC)

21

2632819-456

ASM-PANEL/FOIL RH SHADW GR SUB

21

5435335-456

Panel, Side, Shadowgrass, LH [AV]

21

2632471-341

Panel/Foil, RH [AG]

21

5812138

FOAM-LH

21

5435322-400

Panel, Side, Green Met, LH [AQ]

21

5435322-177

PANEL-SIDE LH GEN IV BLK MET

22

5812327

Foil

22

5812326

FOIL-SIDE PANEL RH

23

5811491

FOIL-RH

24

7519641

BLT-10-24X3/4 MACHSCR PHL PAN
