Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH42AQ SPORTSMAN 400 - A04CH42AQ/AR/AS/AT/AV Polaris 2004 ATV GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13) | GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13)

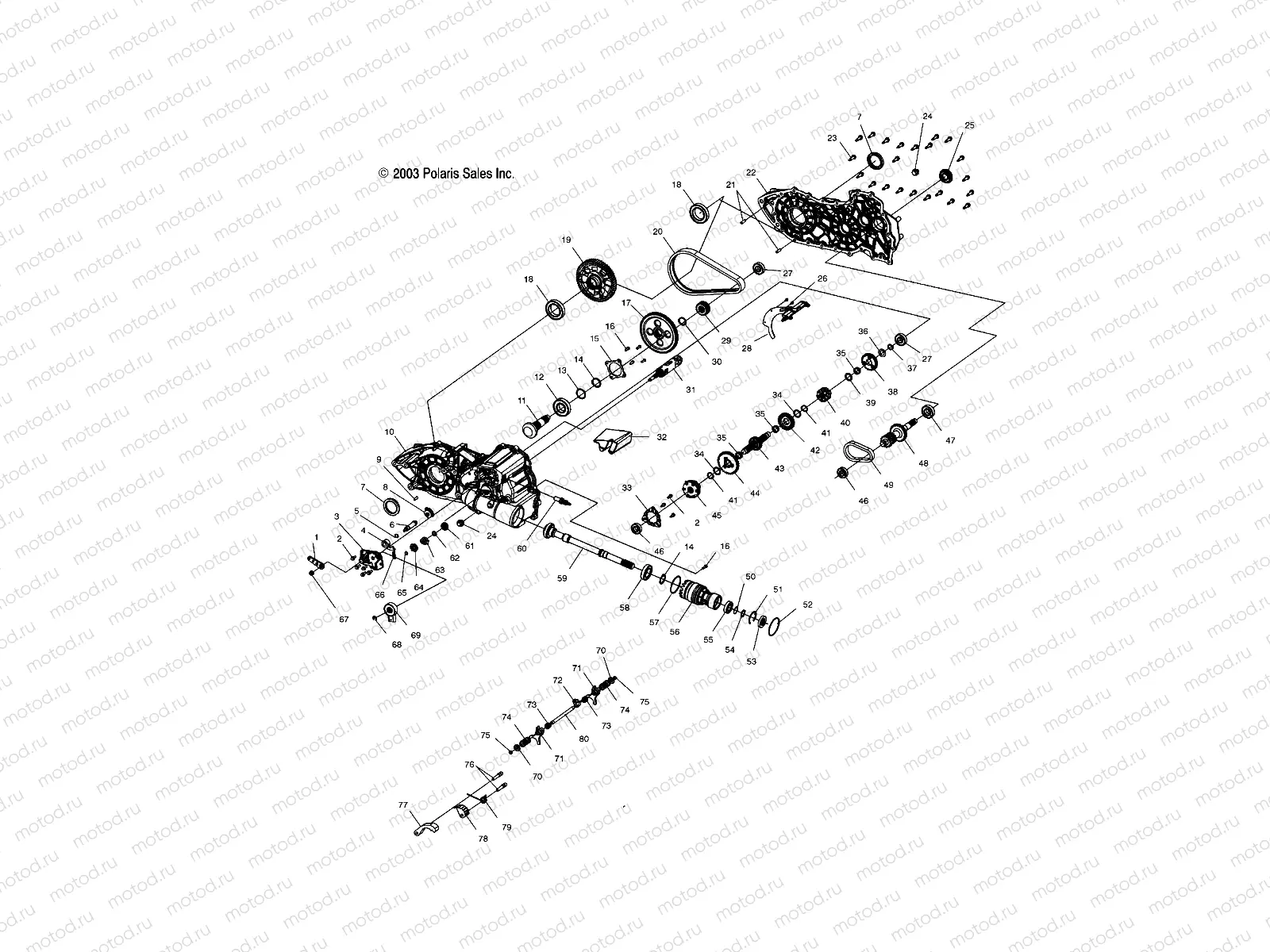

GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13) | GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13)

GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13) | GEARCASE - A04CH42AQ/AR/AS/AT/AV (4987258725C13)

Например: 9990000

0

9990000

Suspension, Rear

1

3233906

BELLCRANK-SHIFT DRUM

2

3233826

Vis

3

3233827

COVER-SECTOR GEARS

4

3233829

PAWL-DETENT

5

3233869

O-Ring

6

3233831

SHAFT-SHIFT

7

3233878

SEAL-TRIPLE LIP

8

3233832

GEAR-SECTOR 31T-CUT TO 11T

9

3233524

TUBE VENT

10

3234059

Gearcase, RH

11

3234066

SHAFT-CENTER DRIVE

12

3234065

BEARING-BALL

13

3234064

Entretoise

14

3233364

RING RETAINING

15

3234063

COVER-CENTER DRIVE BEARING

16

3234086

SCREW-TORX TRUSS HD

17

3234062

GEAR OUTPUT 91T

18

3233268

BEARING BALL

19

3234421

SUBASSEMBLY 59T FINAL OUTPUT

20

3234057

Chaîne

21

3233247

Dowel pin

22

3234056

GEARCASE LH

23

3234114

SCR-TAPPING HEX WASHER HD 5/16

24

3233794

PLUG-HEX HOLLOW WITH O-RING

24

3233794

PLUG-HEX HOLLOW WITH O-RING

25

3233874

SEAL-DUAL LIP

26

3233749

Vis

27

3233018

Roulement

28

3234061

OIL DEFLECTOR

29

3234060

SPROCKET 19T

30

3233699

RING-RETAINING

31

3234360

DRUM SHIFT

32

3234088

OIL-BAFFLE

33

3233915

PLATE-PARK 12 FACE

34

3233851

Rondelle

35

3233718

BEARING NDL SPLIT CAGE

36

3233176

Rondelle

37

3234067

RING-RETAINING

38

3234068

GEAR-28T

39

3233855

Rondelle

40

3234258

ENGAGEMENT DOG 6 FACE

41

3233850

RING-RETAINING

42

3233854

SPROCKET-24T 6 FACE ENGAGEMENT

43

3234071

SHAFT-REVERSE 26T

44

3233852

GEAR-33T 6 FACE ENGAGEMENT

45

3234257

DOG L/P

46

3234074

BEARING-BALL

47

3233019

Roulement

48

3234075

SUBASM-INPUT SHAFT

49

3233036

CHAIN SILENT 34P

50

3233357

Entretoise

51

3234092

RING-RETAINING

52

3234076

O-Ring

53

3233788

SEAL-TRIPLE LIP

54

3233106

RING SNAP

55

3233305

BEARING BALL

56

3234085

TUBE-SNORKEL

57

3234084

O-Ring

58

3233265

BEARING BALL

59

3234083

SHAFT-SNORKEL

60

3233917

SUBASM-PARK LOCKOUT

61

3233839

GEAR-SECTOR 16T

62

3233548

O-Ring

63

3235243

Entretoise

64

3234082

STAR-DETENT

65

3233076

O-Ring

66

3233830

SPRING-COMPRESSION

67

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

68

3233834

RING-RETAINING

69

3236115

SWITCH-ROTARY 6 PIN

70

3234091

WASHER-CUP

71

3234077

SHIFT FORK

72

3234073

COLLAR-SHIFT

73

3234089

SPRING-COMPRESSION

74

3234078

SPRING-COMPRESSION

75

3234090

RING-RETAINING

76

3233432

Dowel pin

77

3233433

SHOE CHAIN TENSIONER

78

3233434

CAM CHAIN TENSIONER

79

3233431

SPRING TORSION

80

3235542

RAIL-SHIFT SHAFT(353622)
