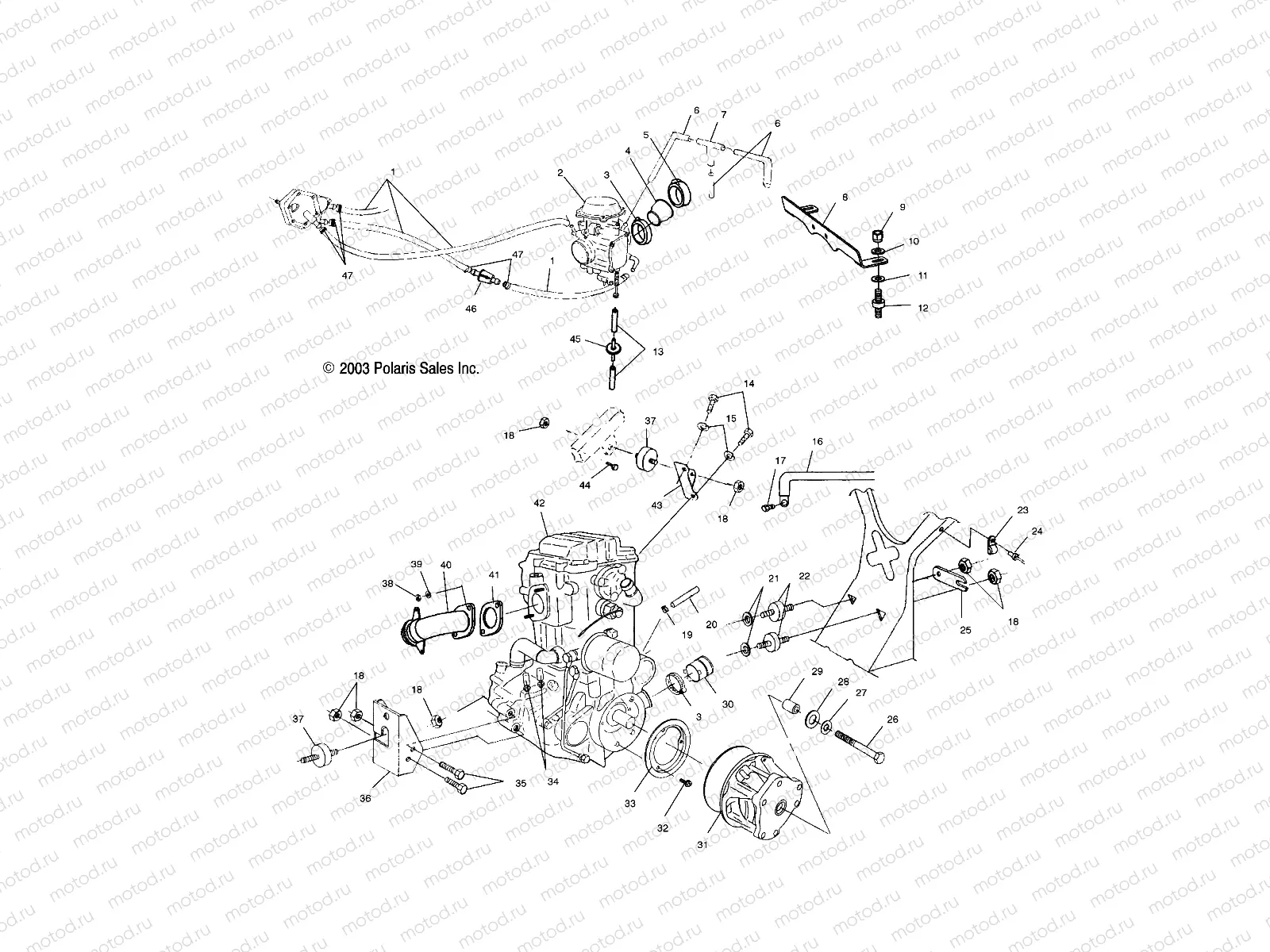

ENGINE MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A13) | ENGINE MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A13)

ENGINE MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A13) | ENGINE MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A13)

Например: 8450040-600

1

8450040-600

LINE FUEL 1/4 ID(600 CM.)

3

7080511

CLAMP NARROW BAND

4

5412283

BOOT-CARB 34MM

5

7080909

CLAMP NARROW BAND(1.77/2.75)

6

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

7

7052075

FITTING TEE

8

5247154

STRAP-CARB MNT

9

7542105

NUT HEX

10

7558203

Rondelle

11

7542143

INSERT

12

3110050

MOUNT CARBURETOR

13

8360009-600

LINE FUEL 1/8 ID 600 CM.

14

7512315

Vis

15

7552901

Rondelle (Lock)

16

4010895

CABLE-BLK(FRAME/ENGINE)

17

3082038

BOLT&WASHER ASM.

18

7547108

Nut

19

7080694

CLAMP HOSE SPRING

21

7555815

WASHER FLAT

22

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

23

7080539

CLAMP NYLON CABLE

24

7621462

RIVET

25

5224658-067

STRAP FRAME SUPPORT BLK

26

7512566

Vis

27

7575202

Rondelle (Lock)

28

5210748

Rondelle

29

5430261

BUSHING

30

5410421

BOOT CLUTCH INTAKE

30

5412487

BOOT-CLUTCH INTAKE

34

7080474

CLAMP HOSE

35

7515417

Vis

36

5241150

Mount, Engine, Front

37

3024012

ISOLATOR-3/8-24M/M 60DURO

38

LR--

CALIPER, BRAKE, RH

40

1261688-489

WELD-MANIFOLD 1.625 BLK

42

3087023

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

43

5241453

MOUNT-ENGINE TOP PLTD

44

7512232

Vis

45

7051011

VALVE CHECK

46

2530009

Filtre à carburant (IN-LINE)

47

7080003

CLAMP HOSE
