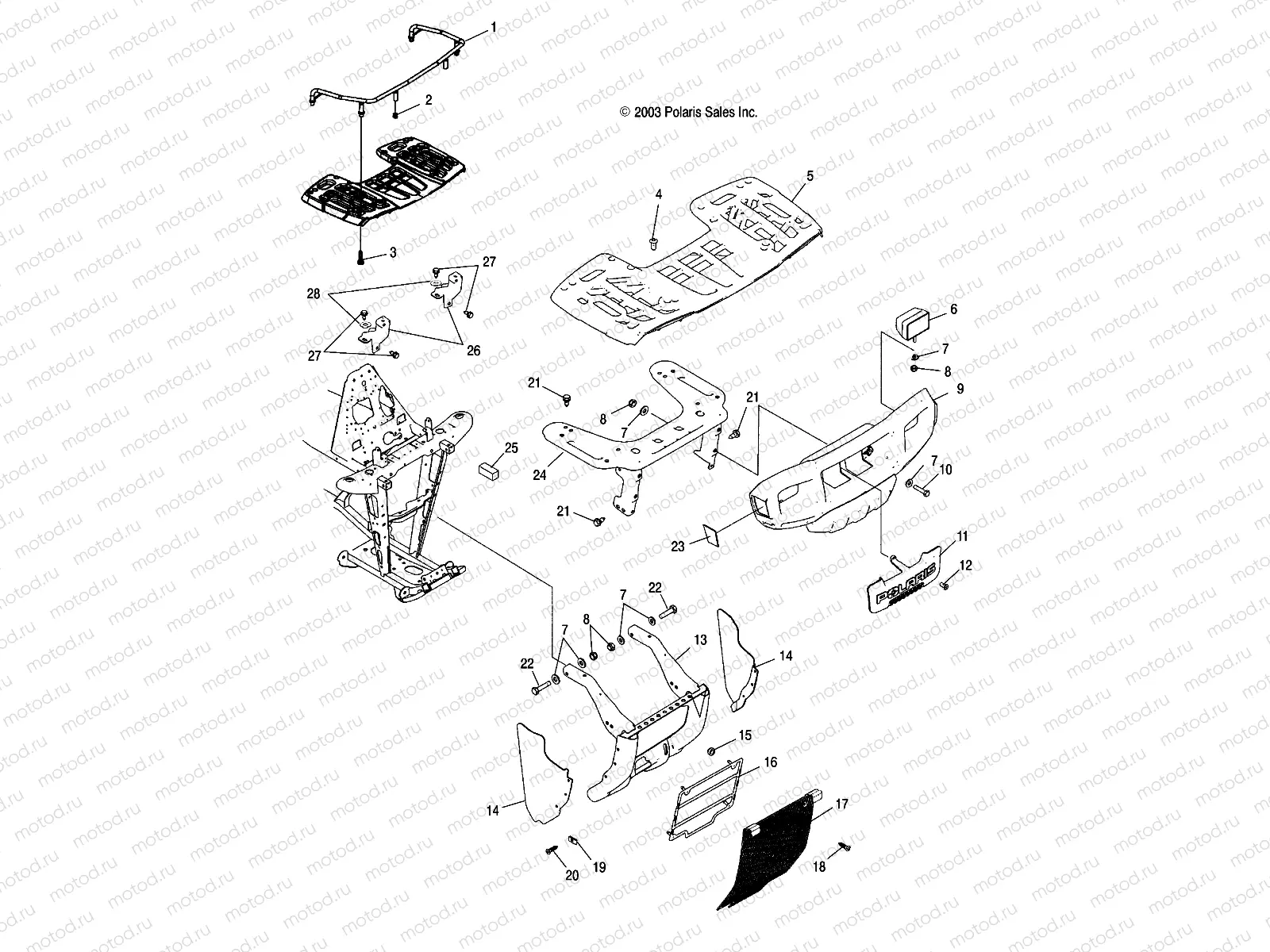

FRONT RACK AND BUMPER MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A07) | FRONT RACK AND BUMPER MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A07)

FRONT RACK AND BUMPER MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A07) | FRONT RACK AND BUMPER MOUNTING - A04CH42AQ/AR/AS/AT/AV (4987258725A07)

Например: 1013972-418

1

1013972-418

WELD-FR.RACK.EXT.BLK-KRINKL

2

7081085

PLUG-BARBED .625

3

7517208

Vis

4

7517685

Vis

5

5435240-070

RACK-FRONT GEN VI BLK

5

5434697-070

Rack, Front, Black [If built before 2/03/03]

6

4030059

BULB H/L 27W.HOBBS

6

2431017

H/L ASM 27W BOTT.MT.

7

7558402

WASHER FLAT

8

7542324

Nut (SELF-LOCKING)

9

2632758-070

ASM-FRONT BUMPER BLK

10

7515352

Vis

11

5434699-070

PANEL-BUMPER FRONT BLK

12

7512094

Vis

13

1013366-067

WELD-GUARD BRUSH BLK

14

5434315

SHIELD-RADIATOR SIDE RH

14

5434314

SHIELD-RADIATOR SIDE LH

15

5412504

GROMMET-RUBBER MOUNT 25

16

5435046

COVER-RADIATOR MESH LG

17

5247507-067

GRILL-BRUSH GUARD BLK

18

7518046

SCR-#8X1 PN-PH H/L-Y

19

7670094

Nut

20

7512097

Vis

21

7515399

Vis

22

7512329

Vis

23

7171474

Decal, Reflector, Amber, LH

23

7171475

Decal, Reflector, Amber, RH

24

1014020-067

WELD-SUPPORT RACK FRONT BLK

25

5810467

PLUG FRAME

26

1014261-067

WELD-SUPPORT RACK FRONT LH BLK

26

1014262-067

WELD-SUPPORT RACK FRONT RH BLK

27

7512232

Vis

28

7555960

WASHER FLAT
