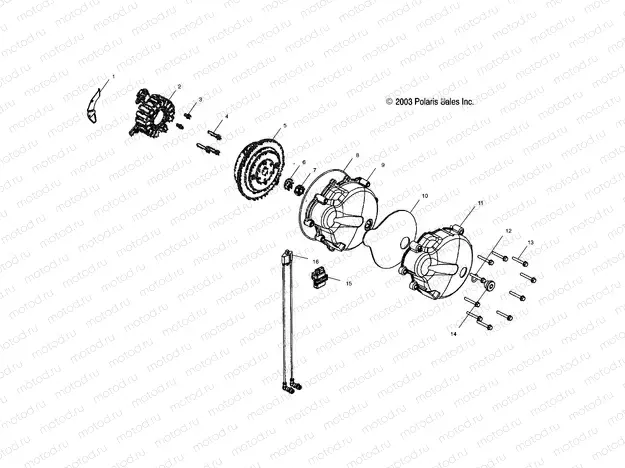

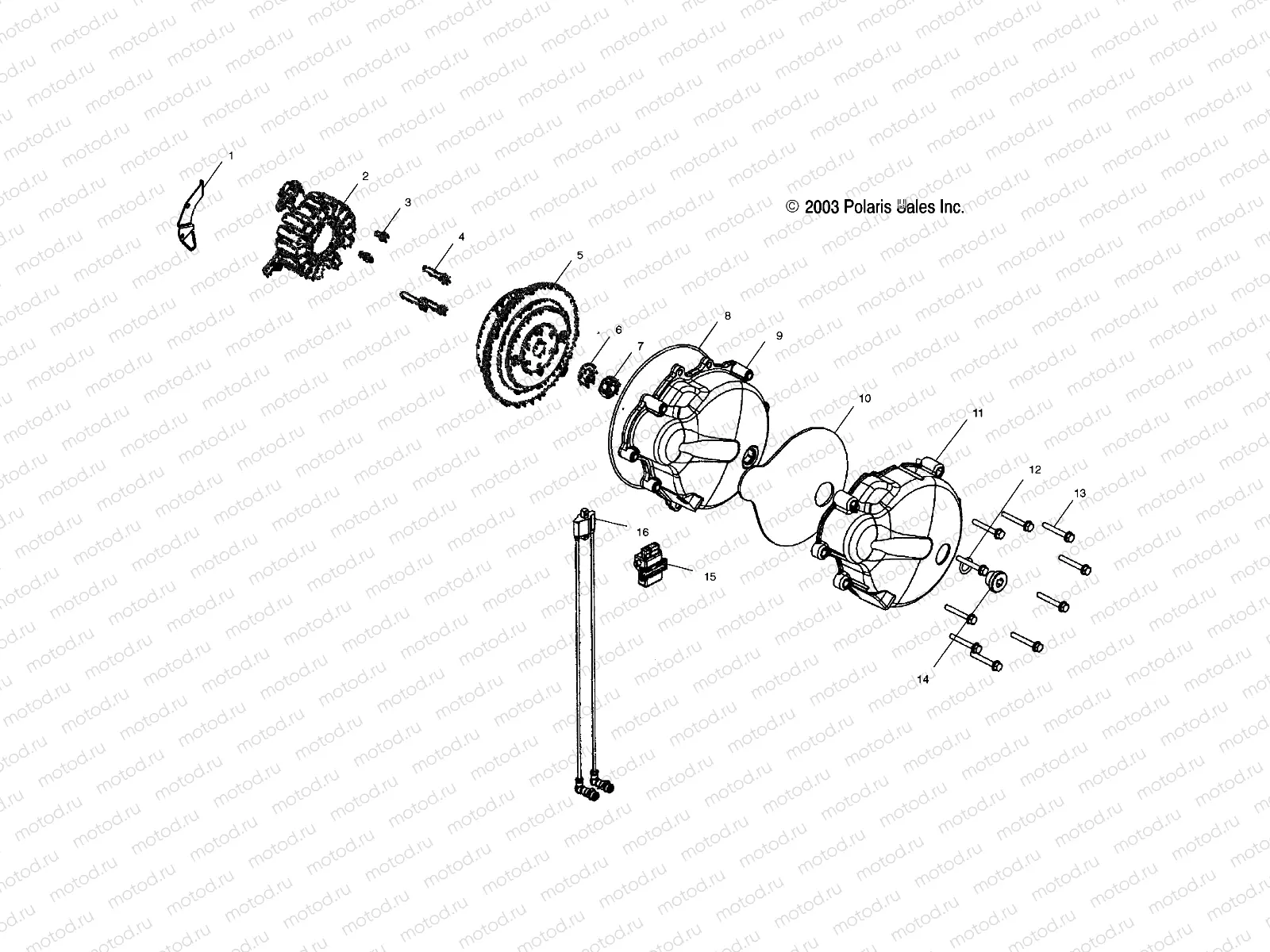

MAGNETO - A04CH59AK/AL/AN/AQ/AW (4987318731D13) | MAGNETO - A04CH59AK/AL/AN/AQ/AW (4987318731D13)

MAGNETO - A04CH59AK/AL/AN/AQ/AW (4987318731D13) | MAGNETO - A04CH59AK/AL/AN/AQ/AW (4987318731D13)

Например: 5245364

1

5245364

STATOR-BRACKET WIRE-HOLD-DOWN

2

4010901

ASM-STATOR KOKUSAN

2

2202603

KIT-IGNITION 600 KOK ATV

3

7517847

SCR-M5X0.8X10 SOC/CP-D

4

7517714

Vis

5

4010899

ASM-FLYWHEEL IGNITION KOK

6

7555907

Rondelle

7

7546909

Nut

7

7547213

NUT-M14X1.50 HEX-Y

8

5812359

SEAL-O-RING .128X7.895

8

5412458

Gasket - clutch cover (2)

9

1204345

ASM-COVER STATOR SVC

9

1204345

ASM-COVER STATOR SVC

10

5812283

COVER-SOUND DAMPENING

11

5434310

Cover, Outer

11

5435099

COVER-STATOR OUTER

12

5411564

O-Ring

13

7517950

SCR-M6X1.0X45 HX-FL-Y/D

14

5433820

PLUG HOLE TMNG 3/4-16 NYLON

15

4011017

CONTROLLER-IGNITION

15

4010920

CONTROLLER-IGN 600 ATV KOK

16

4010898

COIL-IGNITION KOK
