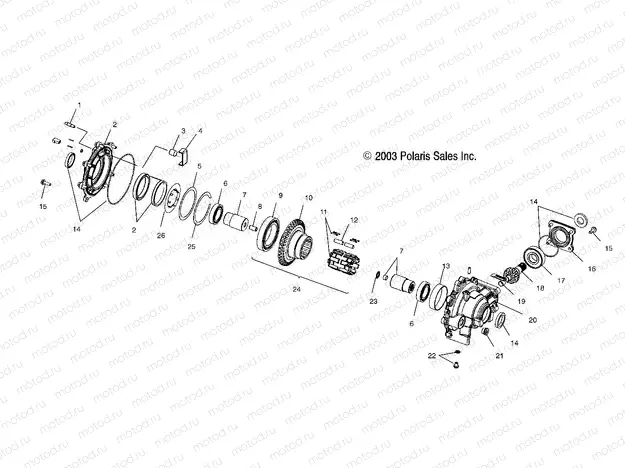

FRONT HOUSING - A04CH59AK/AL/AN/AQ/AW (4987258725D01) | FRONT HOUSING - A04CH59AK/AL/AN/AQ/AW (4987258725D01)

FRONT HOUSING - A04CH59AK/AL/AN/AQ/AW (4987258725D01) | FRONT HOUSING - A04CH59AK/AL/AN/AQ/AW (4987258725D01)

Например: 1332990

0

1332990

ASM-GEARCASE FRONT

0

1332990

ASM-GEARCASE FRONT

0

3233955

KIT-BOLT

1

3234163

SCREW-SET

2

3234159

ASM-COVER PLATE

2

1332990

ASM-GEARCASE FRONT

3

3234164

BUTTON-THRUST

4

3234165

PLATE-THRUST

5

3233925

Kit, Shim Set [Incl. Shims]

5

3234161

PLATE-ARMATURE SHIM

6

3233926

BEARING-ROLLER BALL

7

3233953

ASM-RACE/OUTPUT HUB

8

3233928

Dowel pin

9

3233932

BEARING-ROLLER BALL

10

3234376

CLUTCH-HOUSING/RING GEAR

10

3233933

Clutch Housing/Ring Gear

11

3234455

ASM ROLL CAGE

12

3233957

KIT-ROLLER

13

LR--

CALIPER, BRAKE, RH

14

3233956

KIT-SEAL GEARCASE-FRONT

15

3233918

Vis

16

3234619

COVER-INPUT

17

3234112

BEARING-DEEP GROVE ROLLER BALL

18

3235387

KIT-GEAR HARD TURNED 62039U117

21

3233942

PLUG-OIL FILL 3/4-16 HOLLOW

22

3233951

ASM-DRAIN PLUG

23

3233929

BEARING-NEEDLE ROLLER THRUST

24

3233954

ASM-CLUTCH

24

3234168

ASM. CLUTCH

25

3234162

RING-RETAINING INTERNAL

26

3234101

Plate, Armature

26

3234101

Plate, Armature
