Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH59AK SPORTSMAN 600 - A04CH59AK/AL/AN/AQ/AW Polaris 2004 ATV HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13) | HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13)

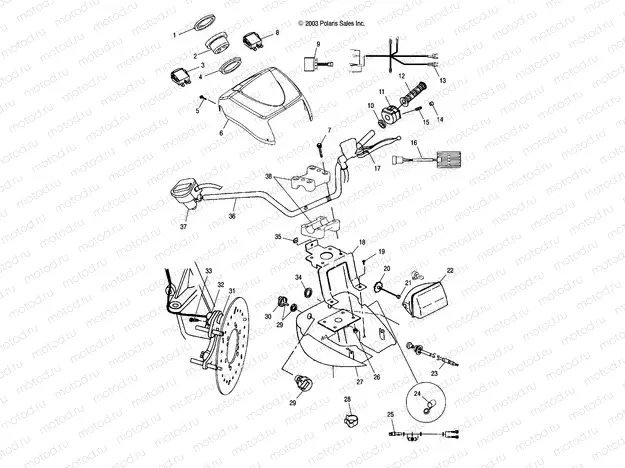

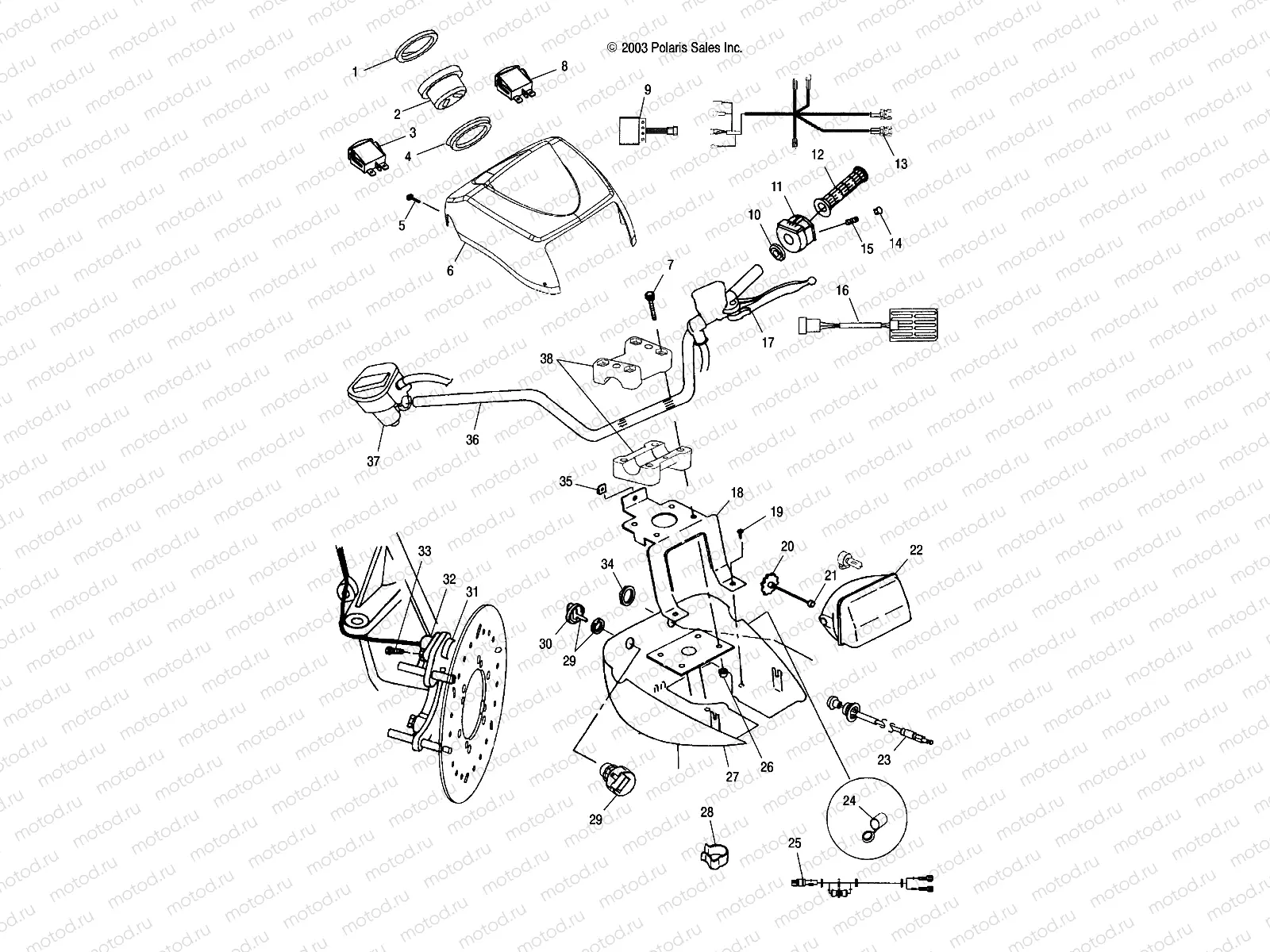

HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13) | HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13)

HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13) | HANDLEBAR and HEADLIGHT POD - A04CH59AK/AL/AN/AQ/AW (4987318731B13)

Например: 5437258

1

5437258

BEZEL-REPLACEMENT ATV CLUSTER

2

3280431

ASM-CLUSTER 110MM W/FUEL

3

4010964

SWITCH-THUMB WARMER HI/LO

4

5412138

MOUNT-RUBBER INSTR. CLUSTER

5

7511881

Vis

6

5435330-455

Pod, Headlight, Upper [AT]

6

5434706-053

POD-HDLT UPPR SNAP GENVI M YLW

6

5434706-400

POD-HDLT UPPR SNAP GENVI CGRNM

6

5434706-341

POD-HDLT UPPR SNAP SONIC BLUE

6

5434706-288

Pod, Headlight, Upper (AW)

7

7517238

Vis

8

4010963

SWITCH-HAND WARMER HI/LO

9

4010970

MODULE-LOAD SHED LR 64

10

5433903

SPACER-SWITCH LH 99

11

4019044

CONTROL-LH HI/LO/OFF

12

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

13

2461213

HARNESS-WIRE ATV POD WARMERS

14

5432952

PLUG HOLE

15

7517625

SCREW SET

16

2410567

ASM-HAND WARMER ATV

18

5244969-329

BRKT-POD MOUNTING E-COAT

19

7517317

Vis

20

4032079

KNOB ADJUSTING

21

4032078

ROD ADJUSTING

22

2204143

KIT-HARNESS HEADLIGHT

22

4010253

BULB-HEADLIGHT 50 WATT

22

2410268

HEADLAMP ASM. 50 WATT

23

7081008

CABLE-CHOKE FRICTION 40

23

7081008

CABLE-CHOKE FRICTION 40

24

4010638

RECEPTACLE-POD MNT 12 VOLT

25

2461045

Harness, Light, Pod/Accy.

26

7542122

NUT-NYLOK

27

5433762-382

POD-HEADLIGHT LOWER SNAP SLV

27

5433762-070

POD-HEADLIGHT LOWER SNAP BLK

27

5433762-177

POD-HEADLIGHT LOWER SNAP BLKMT

28

7080631

CLIP CABLE RETAIN

29

4010321

Clé Vierge

29

4010278

Clé Vierge

29

4012165

SWITCH-KEY 3 POS MT SLV

30

5433534

KEY COVER-KEYSWITCH

31

5132382

CAP-HALL SENSOR

32

4010298

SENSOR HALL EFFECT

33

7517658

Vis

34

7080922

NUT CHOKE M24X1.5 THD M29 HEX

35

7670127

CLIP-SCREW #8/10 .03-.10 PANEL

36

5242987-067

TUBE-HANDLEBAR BLK

37

LR--

CALIPER, BRAKE, RH

38

5631972

BLOCK-HANDLEBAR PEG 89 ID

38

5631973

BLOCK-HANDLEBAR .89 ID

38

5631146

Block Handlebar Pegged

38

5631147

Block Handlebar
