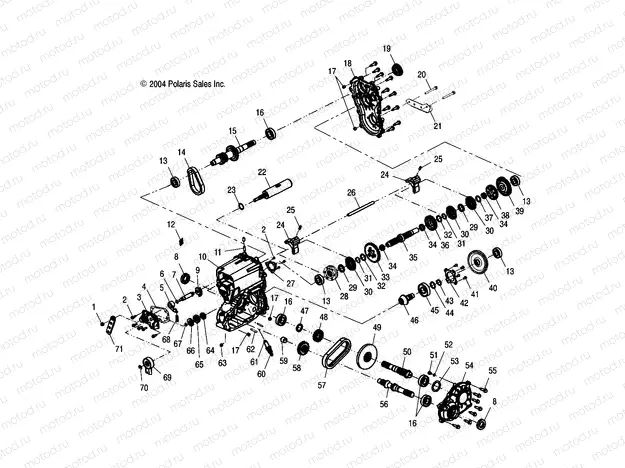

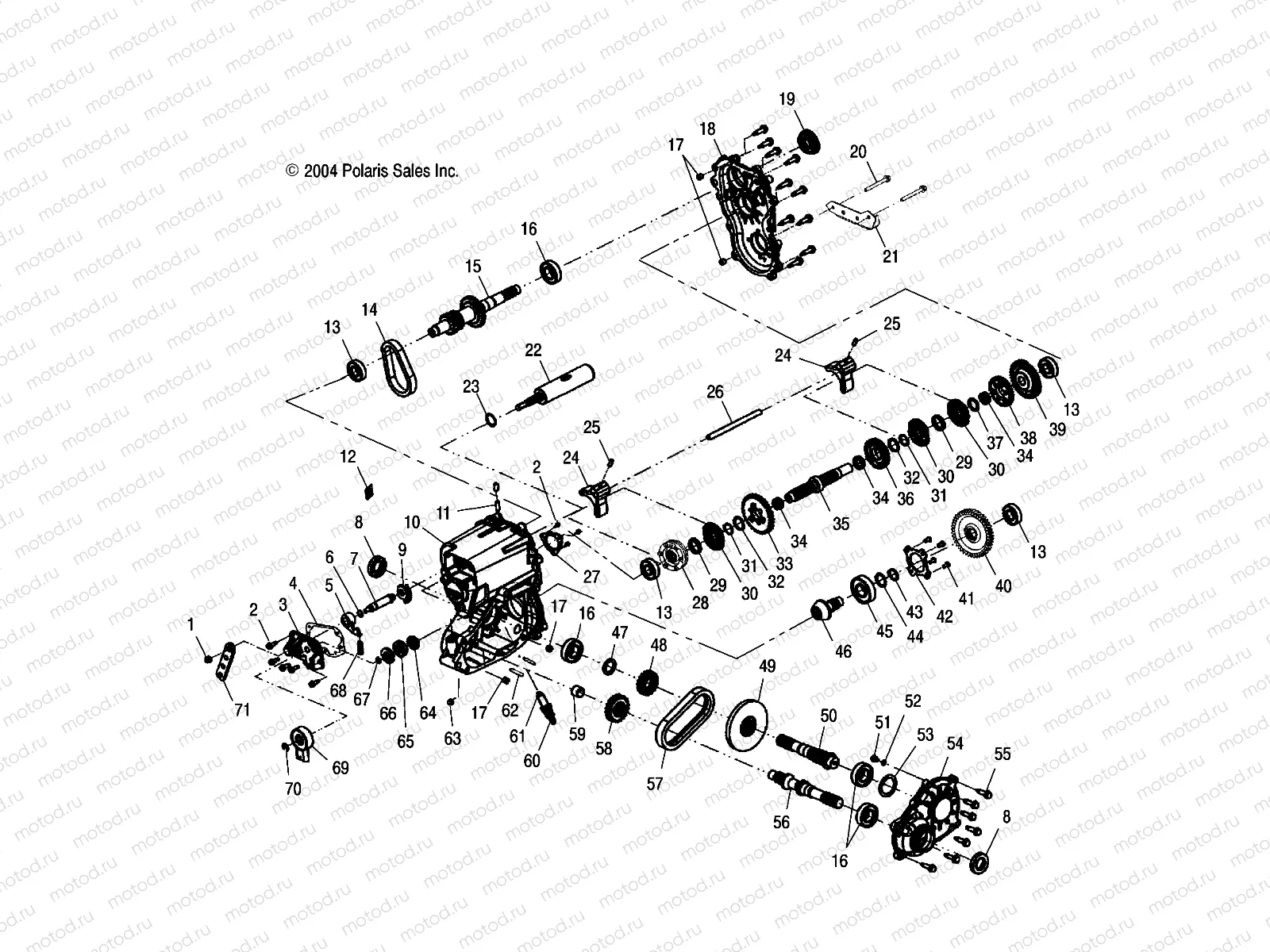

GEARCASE - A04CH59AK/AL/AN/AQ/AW (4994199419D02) | GEARCASE - A04CH59AK/AL/AN/AQ/AW (4994199419D02)

GEARCASE - A04CH59AK/AL/AN/AQ/AW (4994199419D02) | GEARCASE - A04CH59AK/AL/AN/AQ/AW (4994199419D02)

Например: 1332350

0

1332350

ASM-GEARCASE GEN 2 3.08 H 4X4

1

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

2

3233826

Vis

3

3234188

COVER GEARCASE

4

LR--

CALIPER, BRAKE, RH

5

3233829

PAWL-DETENT

6

3233869

O-Ring

7

3233831

SHAFT-SHIFT

8

3233788

SEAL-TRIPLE LIP

9

3233832

GEAR-SECTOR 31T-CUT TO 11T

10

3234128

GEARCASE-MAIN MACH

11

3233524

TUBE VENT

12

3234143

LABEL-OIL FILL/LEVEL CHECK

13

3233018

Roulement

14

3233036

CHAIN SILENT 34P

15

3234012

SUB ASM-INPUT SHAFT

16

3233019

Roulement

17

3233794

PLUG-HEX HOLLOW WITH O-RING

18

3234127

COVER LH MAIN

19

3233874

SEAL-DUAL LIP

20

3234042

Vis

21

3234142

BRACKET-TRANSMISSION MOUNT

22

3233910

DRUM-SHIFT

23

3233548

O-Ring

24

3234141

SUB ASM-SHIFT FORK W/PIN

26

3233860

RAIL-SHIFT SHAFT C VERSION

27

3233915

PLATE-PARK 12 FACE

28

3234040

ENGAGEMENT-DOG PARK 6-FACE

29

3234144

SPRING-WAVE 1.35 ID X .353

30

3233875

DOG-ENGAGEMENT 6 FACE

31

3233850

RING-RETAINING

32

3233851

Rondelle

33

3233852

GEAR-33T 6 FACE ENGAGEMENT

34

3233718

BEARING NDL SPLIT CAGE

35

3233853

SHAFT-REVERSE

36

3233854

SPROCKET-24T 6 FACE ENGAGEMENT

37

3233855

Rondelle

38

3234011

GEAR-29T

39

3234136

GEAR-HELICAL MID OUTPUT 51T

40

3234137

GEAR-HELICAL MID OUTPUT 56T

41

3234086

SCREW-TORX TRUSS HD

42

3234122

COVER-BEARING

43

3233106

RING SNAP

44

3233357

Entretoise

45

3233607

BEARING BALL

47

3233619

WASHER THRUST

48

3233873

SPROCKET-22T/18T

49

3234911

SUBASM-GRND SPIRL BVL(411466)

50

3233911

SHAFT-OUTPUT MAIN REAR

51

3233582

BUTTON THRUST

52

3233583

SHIM .450 X .265

53

3233611

SHIM (KIT)

54

3234130

COVER-FRONT OUTPUT MACH

55

3234114

SCR-TAPPING HEX WASHER HD 5/16

56

3233625

SHAFT FRONT OUTPUT

57

3233784

CHAIN-SILENT REXNORD

58

3233844

SPROCKET-22T

59

3233552

BUSHING GARLOCK

60

3234013

CLAMP-TIE

61

3233917

SUBASM-PARK LOCKOUT

62

3233247

Dowel pin

63

3234043

Nut

64

3233839

GEAR-SECTOR 16T

65

3233838

DISC-LOCKOUT

66

3234082

STAR-DETENT

67

3233076

O-Ring

68

3233830

SPRING-COMPRESSION

69

3236115

SWITCH-ROTARY 6 PIN

70

3233834

RING-RETAINING

71

3233906

BELLCRANK-SHIFT DRUM
