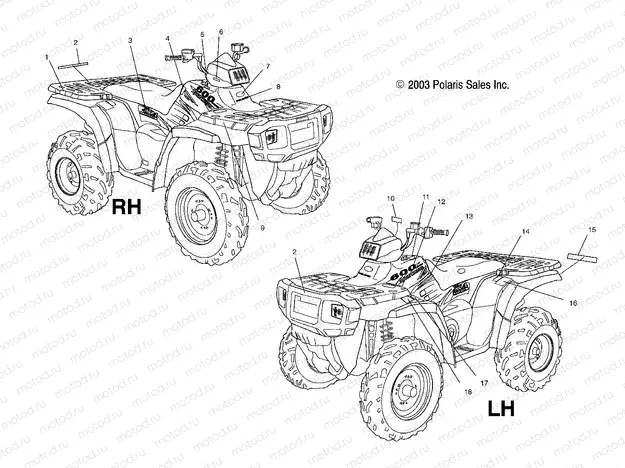

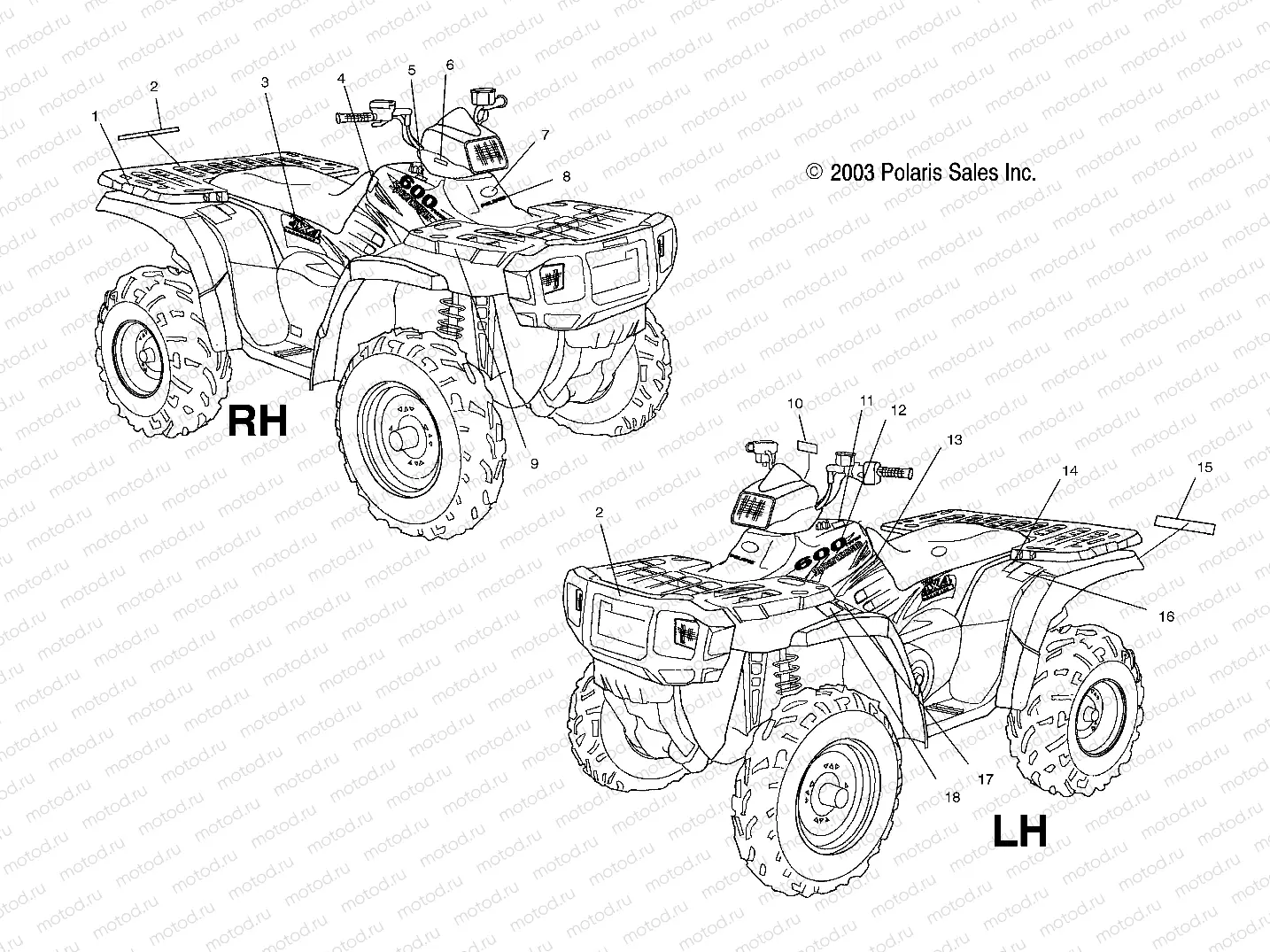

DECALS - A04CH59AK/AL/AN/AQ/AW (4987318731A09) | DECALS - A04CH59AK/AL/AN/AQ/AW (4987318731A09)

DECALS - A04CH59AK/AL/AN/AQ/AW (4987318731A09) | DECALS - A04CH59AK/AL/AN/AQ/AW (4987318731A09)

Например: 7170991

1

7170991

Decal, Reflector, Red

2

7170912

Decal, Warning, Front/Rear Rack

3

7172372

Decal, "AWD", Side Panel, RH (If built after 10/27/03)

3

7172365

DECAL-AWD SIDE PANEL LH

3

7172061

DECAL-4X4 SIDE PANEL RH

3

7172371

Decal, "AWD", Side Panel, LH (If built after 10/27/03)

3

7171016

Decal, "4X4", Side Panel, LH [AH]

3

7172368

Decal, "AWD", Side Panel, RH [AK](If built after 10/06/03)

3

7171009

Decal, "4X4", Side Panel, RH [AJ]

3

7171008

Decal, "4X4", Side Panel, LH [AJ]

3

7172366

DECAL-AWD SIDE PANEL RH

3

7171801

"""DECAL-SIDE PANEL 700 4X4 RH"""

3

7172060

DECAL-4X4 SIDE PANEL LH

3

7172367

Decal, "AWD", Side Panel, LH [AK](If built after 10/06/03)

3

7172369

DECAL-AWD SIDE PANEL LH

3

7172364

DECAL-AWD SIDE PANEL RH

3

7172370

Decal, "AWD", Side Panel, RH (AW)(If built after 9/15/03)

3

7171017

Decal, "4X4", Side Panel, RH [AH]

3

7171799

Decal, "4X4", Side Panel, LH [AF](If built after 3/10/03)

3

7172363

Decal, "AWD", Side Panel, LH [AL](If built after 10/13/03)

4

7078253

DECAL,AGE WARN 16 ATV

5

7175485

DECAL-CAUTION 4X4(AWD)

6

7078003

DECAL-HEADLIGHT ADJUSTMENT

7

7078465

LOGO-POLARIS STAR

8

7079916

Decal, Front Cover, "POLARIS" (AC) (AC)

8

7079773

DECAL-POLARIS FRONT COVER

8

7171879

Decal, "POLARIS", Front Cover

9

7171474

Decal, Reflector, Amber, LH

9

7171475

Decal, Reflector, Amber, RH

10

7079672

Decal, Foot Brake

11

7079604

DECAL-WARN,OVERRIDE,AWD

12

7172336

Decal, Tank Side, RH [AK][AL](AN)(If built after 10/13/03)

12

7172056

Decal, Tank Side, LH (AW)(If built before 9/15/03)

12

7172337

Decal, Tank Side, LH (AW)(If built after 9/15/03)

12

7172346

Decal, Tank Side, RH (AT)(AV)(If built after 10/27/03)

12

7172338

Decal, Tank Side, RH (AW)(If built after 9/15/03)

12

7172057

Decal, Tank Side, RH (AW)(If built before 9/15/03)

12

7172336

Decal, Tank Side, RH [AK][AL](AN)(If built after 10/13/03)

12

7172335

Decal, Tank Side, LH [AK][AL](AN)(If built after 10/13/03)

12

7171004

Decal, Tank Side, LH (AF)(If built after 3/17/03)

12

7172345

Decal, Tank Side, LH (AT)(AV)(If built after 10/27/03)

13

7171006

Decal, Side Panel, Top, LH [AJ]

13

7171015

Decal, Side Panel, Top, RH [AH]

13

7171007

Decal, Side Panel, Top, RH [AJ]

13

7171797

Decal, Side Panel, Top, LH [AF](If built after 3/17/03)

13

7171798

Decal, Side Panel, Top, RH [AF](If built after 3/17/03)

13

7172058

DECAL-SIDE PANEL TOP LH

13

7171014

Decal, Side Panel, Top, LH [AH]

13

7172059

Decal, Side Panel, Top, RH (AW)

14

7172566

Decal, Passenger Warning

15

7079959

Decal, "POLARIS", Rear, White

15

7079960

Decal, "POLARIS", Rear (AC) (AC)

15

7172066

Decal, "POLARIS", Rear, Gold

16

7172748

Decal, Tire Pressure/Load

17

7172561

Decal, Warning, Discretionary, Drum Shift

18

7079083

DECAL-WARN,GENERAL,CPSC (AL)
