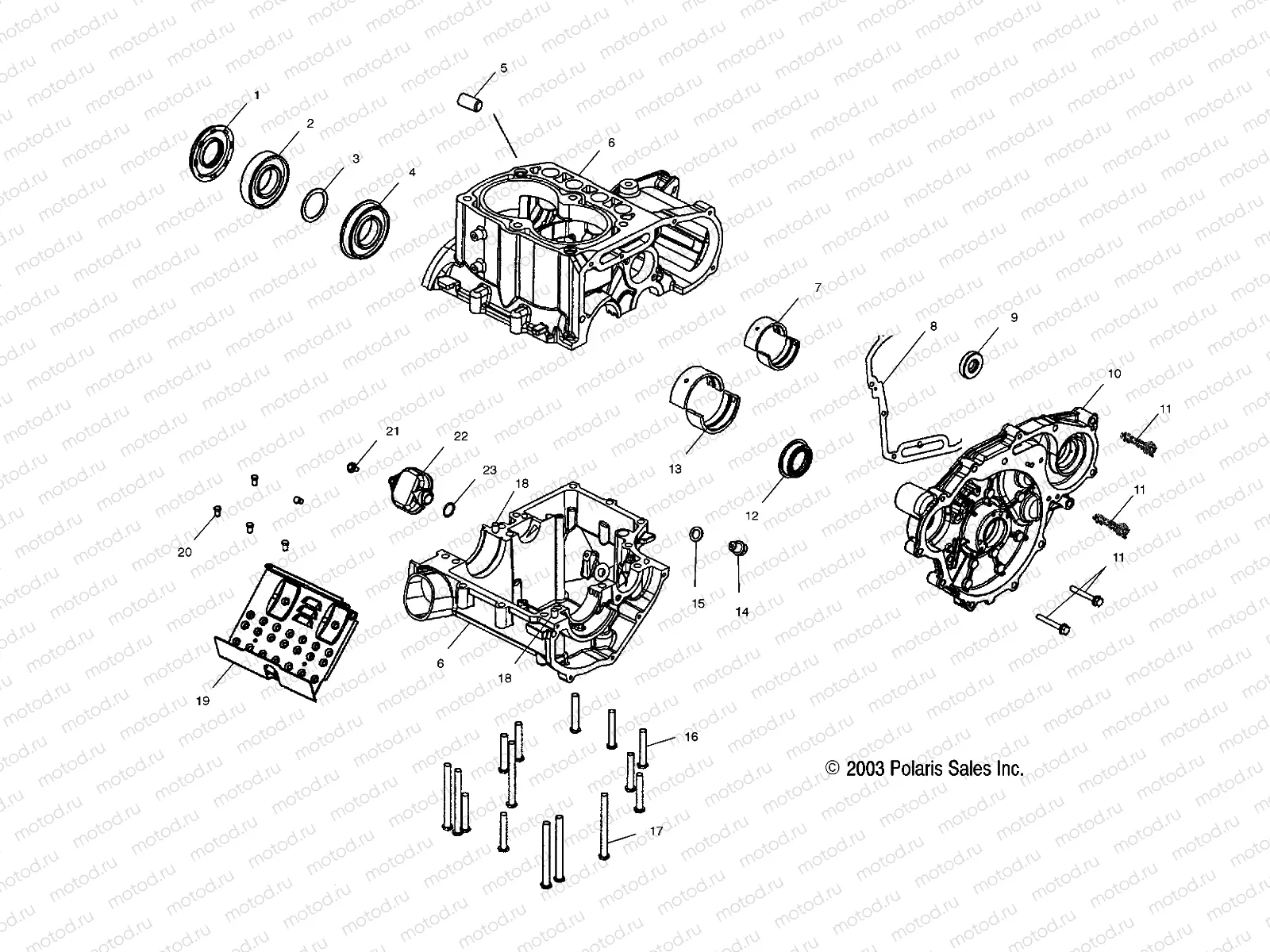

CRANKCASE - A04CH59AK/AL/AN/AQ/AW (4987318731D03) | CRANKCASE - A04CH59AK/AL/AN/AQ/AW (4987318731D03)

CRANKCASE - A04CH59AK/AL/AN/AQ/AW (4987318731D03) | CRANKCASE - A04CH59AK/AL/AN/AQ/AW (4987318731D03)

Например: 5412114

1

5412114

SEAL-FLANGE 35X72X7 CR

2

3585503

BEARING BALL

3

7556194

BUSHING-35X44X3.00 MM-B

4

3514318

BEARING BALL

5

7518007

PLUG-HEX SOCKET 1/4X18

6

2202364

KIT-CRANKCASE

6

2202864

KIT-CRANKCASE

7

5132753

BEARING-JOURNAL BAL SHAFT

8

5812364

GASKET-COVER

8

5812936

Gasket - generator cover

9

5412455

SEAL-OIL 15X35X8

9

5412455

SEAL-OIL 15X35X8

10

1203626

ASM-COVER ENGINE MAG

11

7517950

SCR-M6X1.0X45 HX-FL-Y/D

12

5412048

SEAL-FLANGED 24X44X10 W/HELIX

13

3585704

BEARING MAIN JOURNAL

14

7052306

PLUG-SOCKET M12X1.5 DIN 908A

15

5812232

WASHER-19X12X1.3-COPPER

16

7517793

SCR-M8X1.25X50 HX/FL-Y

17

7517792

SCR-M8X1.25X90 HX/FL-Y

18

7663001

Dowel pin

19

5211785

PLATE-BAFFLE CRANKCASE

20

7518045

SCR-M5X.80X8-HX/FL-Y/D

21

7516603

BOLT(1)

22

1202663

ASM-OIL PICKUP

22

1202663

ASM-OIL PICKUP

23

5812016

SEAL-O-RING .070X.614
