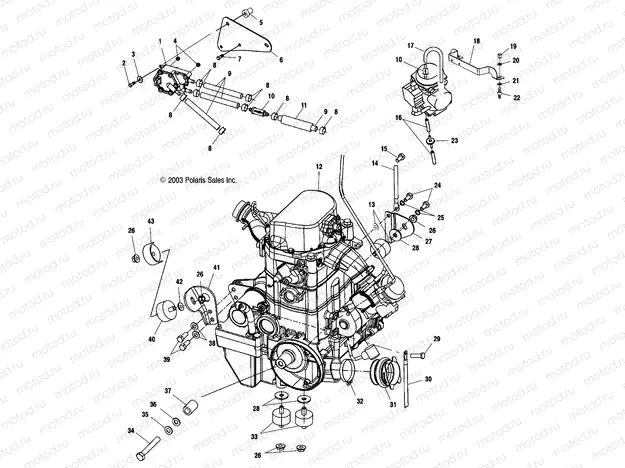

ENGINE MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A13) | ENGINE MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A13)

ENGINE MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A13) | ENGINE MOUNTING - A04CH59AK/AL/AN/AQ/AW (4987318731A13)

Например: 2520227

1

2520227

ASM-PUMP FUEL

2

7517867

SCREW M5X0.8X10 PHPN ZY L/W SE

4

7546601

NUT NYLOK

5

7541923

NUT-WELL

6

5243829

DESC NOT_AVAILABLE

7

7512329

Vis

8

7080003

CLAMP HOSE

9

8450103-600

Line, Fuel

10

2530009

Filtre à carburant (IN-LINE)

11

8450080-50

Sheath, Foil

12

9990000

Suspension, Rear

13

7558402

WASHER FLAT

14

4010132

CABLE GND-ENGINE

15

7517386

Vis

16

8360009-600

LINE FUEL 1/8 ID 600 CM.

17

5412287

HOSE-FORMED VENT

18

5247141

BRKT-CARB MNT PLATED

19

7542105

NUT HEX

20

7558301

WASHER FLAT

21

7558203

Rondelle

22

3110050

MOUNT CARBURETOR

23

7051011

VALVE CHECK

24

7516714

SCREW H.H.CAP

25

7552901

Rondelle (Lock)

26

7547108

Nut

27

5244622-067

Bracket, Mount, Top

27

5247368

BRKT-MNT ENGINE TOP PLTD

28

7555815

WASHER FLAT

29

7517868

BOLT-M6X1.0X30 HXHD SEMS L/WZY

30

4010470

Cable

31

5412634

BOOT-CLUTCH INTAKE 2.25 I.D.

32

7080451

CLAMP HOSE S.S.

33

3022076

ISOLATOR-3/8-24M 3/8-16M 60DUR

34

7519287

BOLT-CLUTCH ATV 7/16X20X8

35

7575202

Rondelle (Lock)

36

5210748

Rondelle

37

5430261

BUSHING

38

7552603

Rondelle (Lock)

39

7512492

Vis

40

3024012

ISOLATOR-3/8-24M/M 60DURO

41

5244771-067

MNT-ENGINE LOWER FRONT BLK

42

7555823

Rondelle

43

5245043

BRKT-TORQUE STOP PLTD
