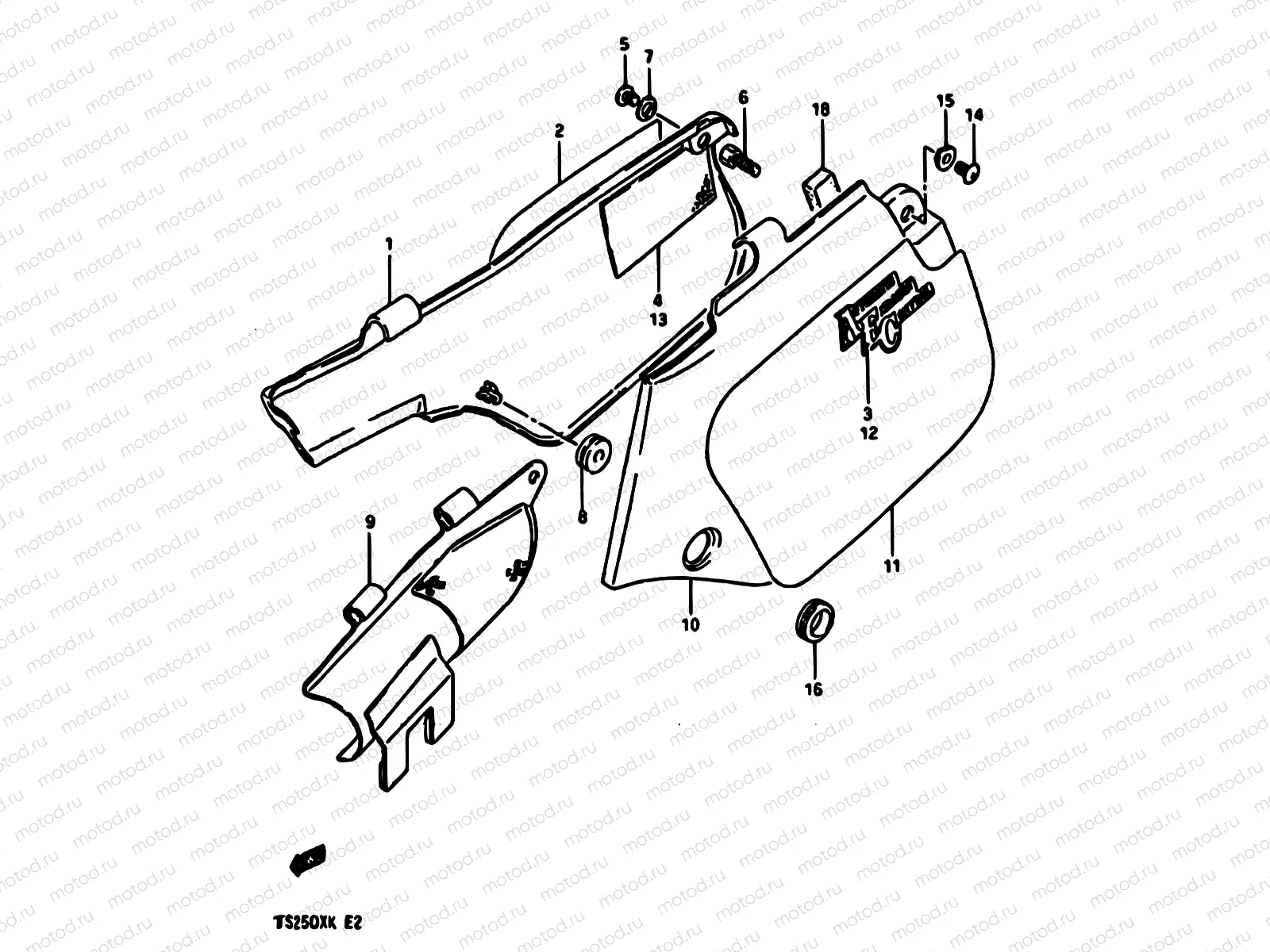

39A - FRAME COVER (MODEL J/K)

39A - FRAME COVER (MODEL J/K)

Например: 47111-13A01-13L

1

47111-13A01-13L

2

68130-13A00-33N

.tape set,rh (blue)

2

68130-13A00-19F

.tape set,rh (blue)

3

68681-20A10-2EK

.emblem

3

68681-20A10-2EL

.emblem

4

47167-28C10

Shield,frame co

5

02142-06127

Винт 6X12

81 ₽/шт

6

47155-13A00

Bolt,side cover rh inner

7

09169-06011

Пластина замка

759 ₽/шт

8

09320-08527

Cushion

1 640 ₽/шт

9

47400-13A00

Plate assy,guide

10

47211-13A00-13L

11

68140-13A00-33N

.tape set,lh (blue)

11

68140-13A00-19F

.tape set,lh (blue)

12

68681-20A10-2EK

.emblem

12

68681-20A10-2EL

.emblem

13

47161-34A00

.protector

14

02142-06127

Винт 6X12

81 ₽/шт

15

09169-06011

Пластина замка

759 ₽/шт

16

45522-04700

Damper
