Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 250 SUZUKI TS250X J SUZUKI 10 - MUFFLER

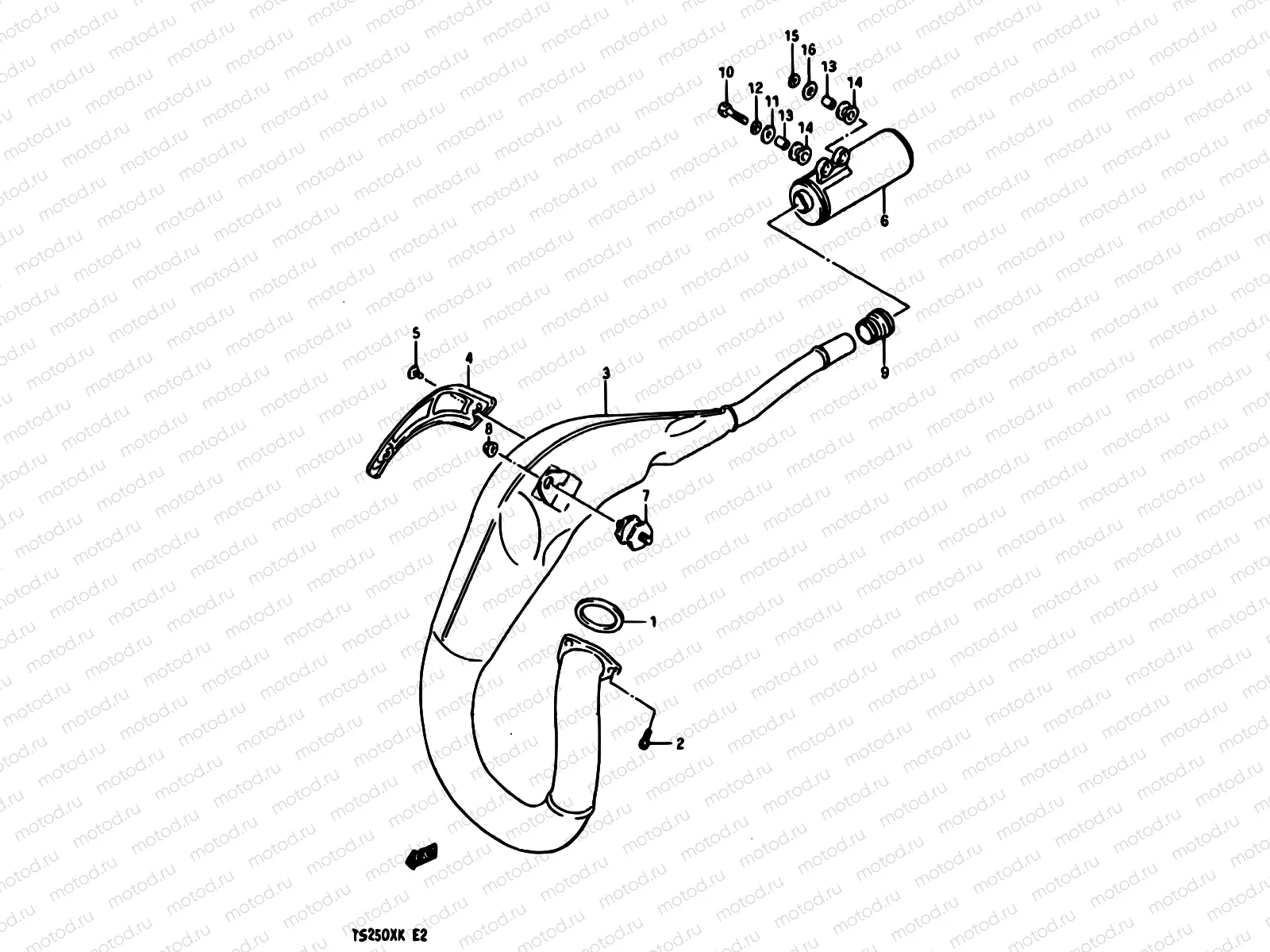

10 - MUFFLER

10 - MUFFLER

Например: 14181-13A00-H17

1

14181-13A00-H17

Gasket,exhaust pipe

1

14181-36A00

Прокладка трубы выпускной

606 ₽/шт

1

14181-39310-H17

Gasket,exhaust pipe (na)

2

07120-0620B

Болт

102 ₽/шт

3

14310-13A24

Body,muffler,1st

3

14310-13A40

Body,muffler,1st

4

14781-13A01

Cover,muffler

5

02142-0608A

Болт

740 ₽/шт

6

14303-13A30

Body,muffler,2nd

6

14303-13A21

Body,muffler,2nd

6

14303-13A40

Body,muffler,2nd

7

14770-01A00

Дэмпфер муффлера

1 169 ₽/шт

8

08316-1008B

Гайка

81 ₽/шт

9

14771-35301

CONNECTOR,MUFFLER

1 737 ₽/шт

10

01500-0840A

Болт

102 ₽/шт

11

09160-08135

Шайба

113 ₽/шт

12

08321-0108B

Пластина замка

81 ₽/шт

13

09180-08194

SPACER,8.5X12X17.5

1 840 ₽/шт

14

09320-12043

САЙЛЕНТБЛОК

791 ₽/шт

15

08321-0108B

Пластина замка

81 ₽/шт

16

09160-08135

Шайба

113 ₽/шт
