Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 250 SUZUKI TS250X J SUZUKI 2 - CYLINDER (MODEL G/H/J/K)

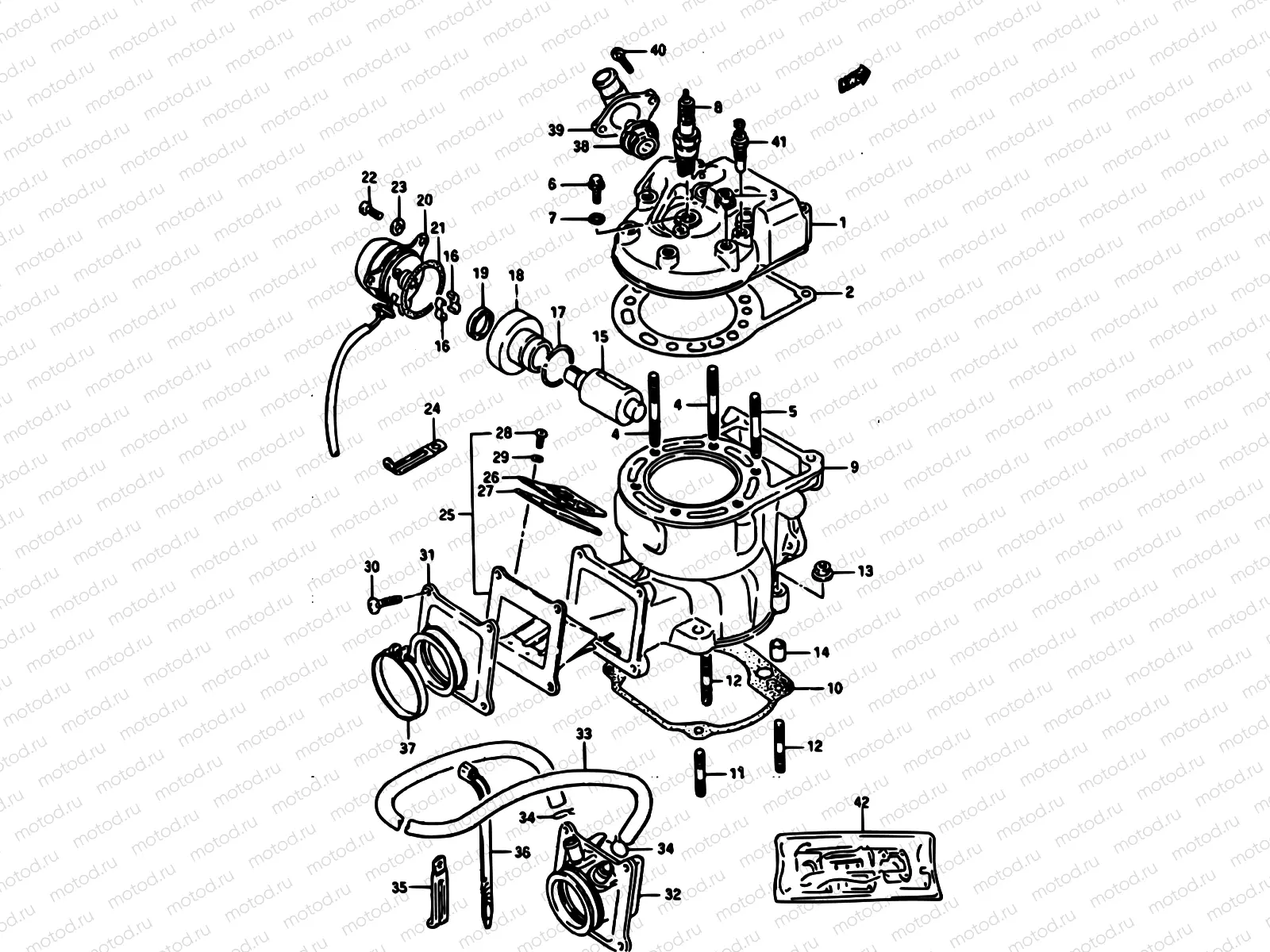

2 - CYLINDER (MODEL G/H/J/K)

2 - CYLINDER (MODEL G/H/J/K)

Например: 11111-13A11

1

11111-13A11

Cylinder head

2

11141-13A70

Joint culasse

2

11141-13A11-H17

Gasket,cylinder head (na)

3

08316-1008B

Гайка

81 ₽/шт

4

09108-08185

Stud bolt (8x50)

5

09108-08174

Stud

6

09360-06007

Болт соединяющий

179 ₽/шт

7

09168-06004

Кольцо прокладочное

113 ₽/шт

8

09482-00091

PLUG,SPARK(B8ES)

697 ₽/шт

8

09482-00092

Spark plug (nd,w24es)

8

09482-00348

PLUG,SPARK(BR8ES)

696 ₽/шт

9

11210-13A11

Cylinder

10

11241-13A70

Joint d'embase cylindre

10

11241-13A10-H17

Gasket,cylinder (na)

11

09108-08269

Stud bolt

12

09108-08220

Болт

1 920 ₽/шт

13

08316-1008B

Гайка

81 ₽/шт

14

04211-11169

PIN

113 ₽/шт

15

11256-36A01

Valve (EX)

16

11245-36A01

SPRING,EXHAUST VALVE

407 ₽/шт

17

09280-29003

O RING(D:2.4,ID:28.8)

1 880 ₽/шт

18

11263-13A10

Holder,exhaust valve

19

09282-15005

Seal,oil

20

33970-13A00

Solenoid assy

21

37712-13A00-H17

GASKET,SOLENOID(NA)

160 ₽/шт

22

02112-0616A

Болт

81 ₽/шт

23

08322-0106A

Шайба

81 ₽/шт

24

09404-06039

Clamp(L:65)

194 ₽/шт

25

13150-13A10

Valve assy,reed

26

13152-13A10

.stopper

27

13153-14110

Valve,reed

28

02112-0308A

Болт

1 060 ₽/шт

29

09162-03001

Шайба блокирующая

900 ₽/шт

30

02112-0620A

Болт

85 ₽/шт

31

13110-14100

Pipe d’admission

37

09402-50306

CLAMP

921 ₽/шт

38

17670-01A01

Thermostat

39

17661-36A00

Thermostat cover

40

02112-0620A

Болт

85 ₽/шт

41

34850-03A10

Gauge,water temp

42

11400-13871-H17

Gasket set (na)

42

11400-13872

Gasketset,eng.
