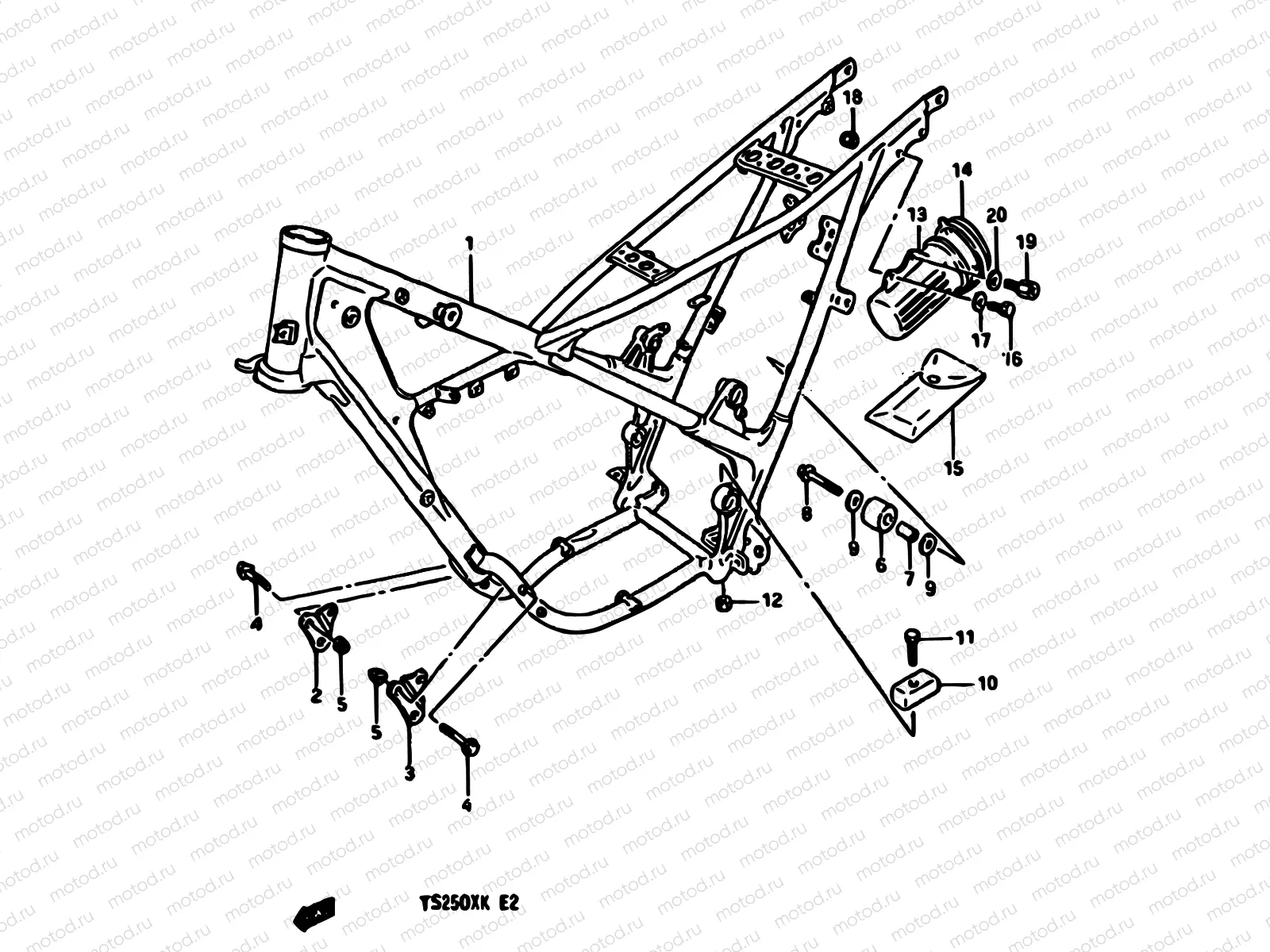

31 - FRAME (MODEL G/H/J/K)

31 - FRAME (MODEL G/H/J/K)

Например: 41100-13A31-19F

1

41100-13A31-19F

rame (blue)

1

41100-13A51-019

Frame (black)

1

41100-13A41-019

Frame (black)

1

41100-13A41-19F

rame (blue)

1

41100-13A70-019

Fraem (black)

1

41100-13A60-019

Frame (black)

1

41100-13A70-19F

rame (blue)

1

41100-13A60-19F

rame (blue)

2

41991-13A10-126

Plate,mount rh (silver)

3

41992-13A10-126

Plate,mount lh (silver)

4

01550-08507

БОЛТ

2 070 ₽/шт

5

08319-31087

Гайка

178 ₽/шт

6

43911-14200

Roller,chain co

7

43913-40400

Spacer,chain co

8

09103-08043

БОЛТ

114 ₽/шт

9

09160-08130

Шайба

102 ₽/шт

10

43912-13700

Guide,chain

11

02112-06207

ШАЙБА

85 ₽/шт

12

08319-31067

Гайка

153 ₽/шт

13

47430-13A01

Holder,tool

14

47432-13A01

.cap,tool holder

15

09800-21059

Tool assy

16

09118-06086

Болт 6X25

1 680 ₽/шт

17

09160-06109

Шайба

85 ₽/шт

18

08319-31067

Гайка

153 ₽/шт

19

47442-13A00

Bolt,tool holder rear

20

09160-06109

Шайба

85 ₽/шт
