Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Bobber Triumph 2022 (VIN: SMTD53HL) Swingarm Assembly

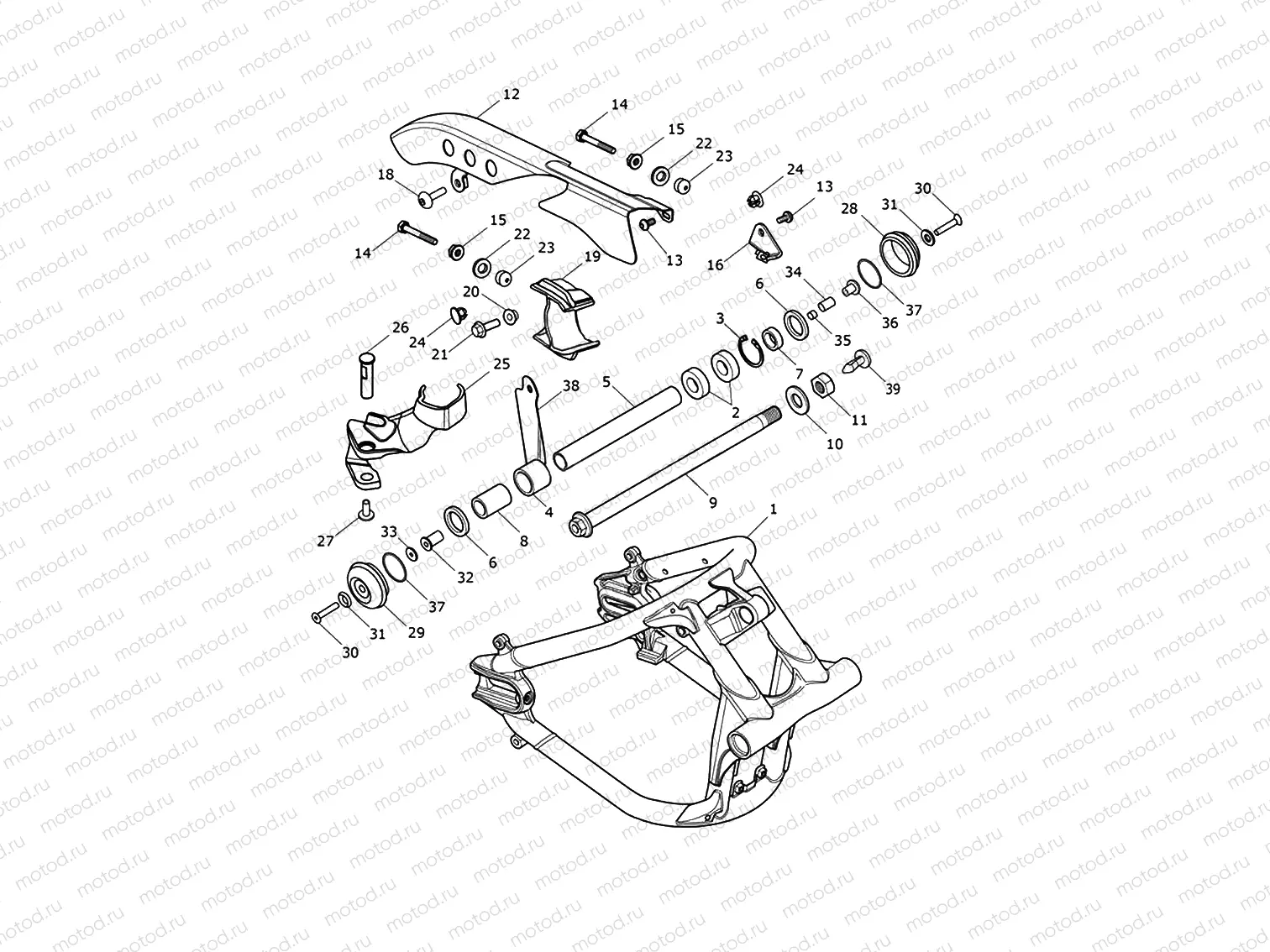

Swingarm Assembly

Swingarm Assembly

Например: T2050426

1

T2050426

Swingarm Assembly

1 шт. в узле

2

T3800081

Bearing, Ball, 17 35 10

2 шт. в узле

3

T3500204

Circlip, Int, 35 x 1.5

1 шт. в узле

4

T3800014

Roller bearing

1 шт. в узле

5

T2054096

Spacer, Internal, 22 x 174.5

1 шт. в узле

6

T3600044

Oil Seal, 35 25 4

2 шт. в узле

7

T2054063

Spacer, 25 x 17 x 8.5

1 шт. в узле

8

T2054344

Sleeve, Ground, 25 x 17 x 37

1 шт. в узле

9

T2012012

Vis

1 шт. в узле

10

T3551240

Washer, M16 x 34 x 3

1 шт. в узле

11

T3350155

Locknut, Thin, M16

1 шт. в узле

12

T2050768

Chainguard, Pressed, Black

1 шт. в узле

13

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

2 шт. в узле

14

T3203205

Screw, H/Hd, M8 x 50, Slv

2 шт. в узле

15

T3350301

Nut, Flanged, M8, Silver

2 шт. в узле

16

T2056010

Bracket, Brake Hose, Rear

1 шт. в узле

18

T3335015

Screw, But/Hd, TX, M8 x 30

1 шт. в узле

19

T2050378

Chain Rubbing Strip

1 шт. в узле

20

T3010061

Flanged Sleeve, M6 x 9 x 3.25

1 шт. в узле

21

T3205065

Bolt, HHF, Lghtd, M6 x 20, Enc

1 шт. в узле

22

T2050398

Spacer, 16 x 8.4 x 3

2 шт. в узле

23

T3450108

Stand Off Rubber

2 шт. в узле

24

T3700180

Plug, Hole, Plastic

3 шт. в узле

25

T2059371

Chain Rubbing Strip, Rear

1 шт. в узле

26

T2059401

Compression Limiter

1 шт. в узле

27

T3330955

Screw, But/Hd, M5 x 14, Slv, E

1 шт. в узле

28

T2059668

Finisher, Spindle, LH

1 шт. в узле

29

T2059669

Finisher, Spindle, RH

1 шт. в узле

30

T3330678

Screw, Csk, M5 x 30, S/S

2 шт. в узле

31

T3550265

Washer, M5, C'sunk

2 шт. в узле

32

T3350050

Wellnut, M5

1 шт. в узле

33

T3550286

Rondelle (5.3x18x1.6)

1 шт. в узле

34

T2050376

ube, ID 5.2, OD 7.5, 14 Long

1 шт. в узле

35

T3350199

Nut, M5, Cylindrical

1 шт. в узле

36

T3010706

Flanged Sleeve, 5.2 x 7 x 6.3

1 шт. в узле

37

T3601470

O Ring, ID 32.5 x 3

2 шт. в узле

38

T2059997

Protector, Swingarm

1 шт. в узле

39

T3701170

Plastic Rivet, Screw Type

1 шт. в узле
