Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Bobber Triumph 2022 (VIN: SMTD53HL) Crankcase & Fittings

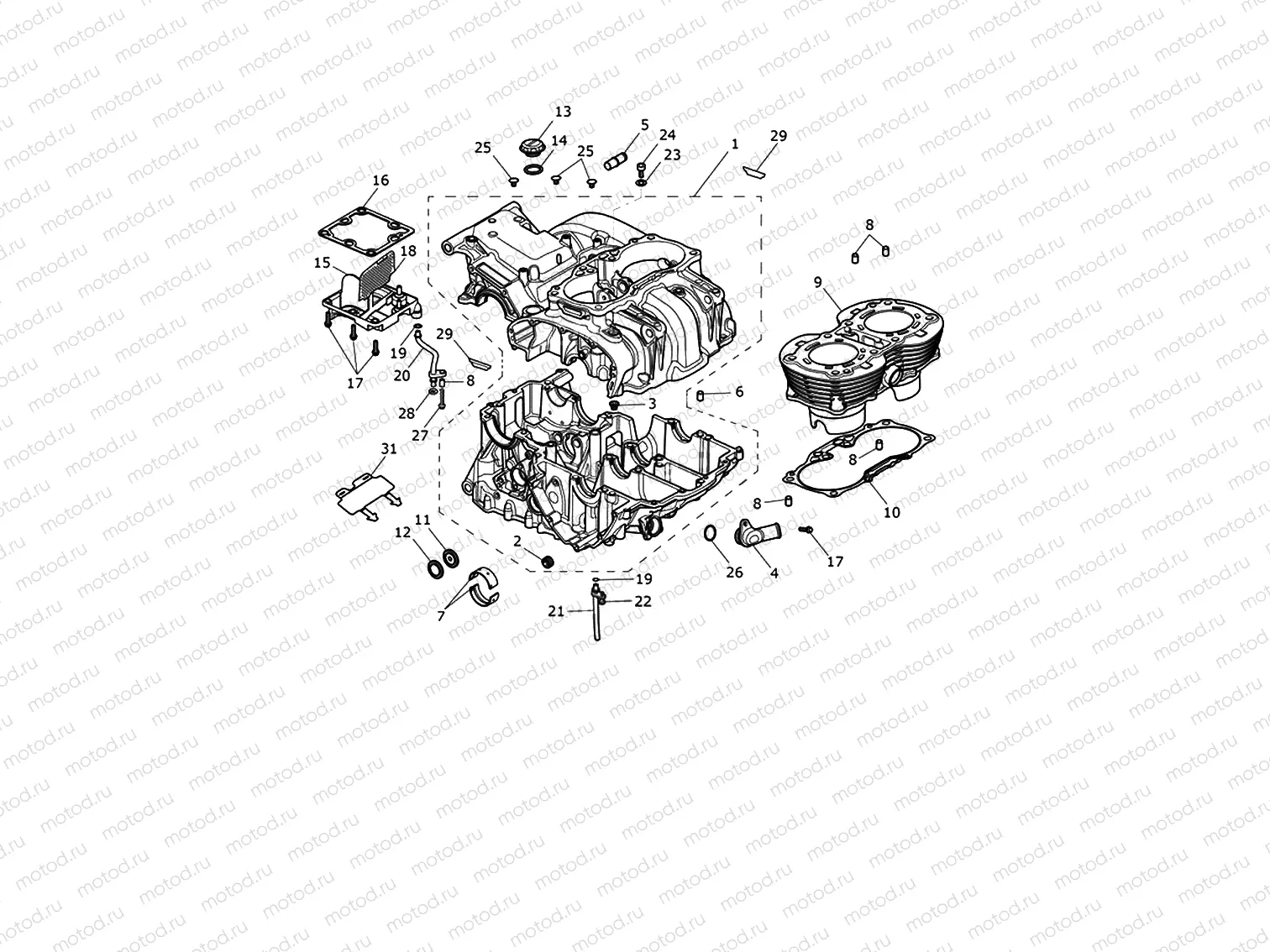

Crankcase & Fittings

Crankcase & Fittings

Например: T1162953

1

T1162953

Crankcase Assembly, Spares

1 шт. в узле

2

T3450000

Plug, PTF-SAE Short, 3/8-18, E

6 шт. в узле

3

T3455555

Plug, M10, Flanged

3 шт. в узле

4

T1162920

Elbow, Coolant, Return

1 шт. в узле

5

T1160268

Spigot, OD 14.0mm

1 шт. в узле

6

T3000102

Dowel, Hollow, 10 x 14

3 шт. в узле

7

T1160231

Main Bearing Shell, Grooved, R

1 шт. в узле

7

T1160232

Main Bearing Shell, Grooved, b

1 шт. в узле

7

T1160233

Main Bearing Shell, Grooved, G

1 шт. в узле

8

T3000101

Dowel, Hollow, 8 x 14

5 шт. в узле

9

T1167220

Barrel, Dia 97.6

1 шт. в узле

10

T1167250

Base Gasket

1 шт. в узле

11

T1261049

Sight glass

1 шт. в узле

12

T1262070

Plug, Sightglass

1 шт. в узле

13

T1161512

Cap, Oil Filler

1 шт. в узле

14

T3600028

O Ring, Filler Cap

1 шт. в узле

15

T1162910

Breather Plate

1 шт. в узле

16

T1162911

Gasket, Breather

1 шт. в узле

17

T3205094

Bolt, HHF, Lghtd, M6 x 20, Enc

8 шт. в узле

18

T1160464

Baffle Plate, Perforated

1 шт. в узле

19

T3600153

O-Ring

2 шт. в узле

20

T1162622

Breather Drain Pipe

1 шт. в узле

21

T1163006

Breather Drain Pipe, Lower

1 шт. в узле

22

T3051063

Screw, Cap/HD, M6 x 16, Enc, R

1 шт. в узле

23

T3550560

Washer, CU, OD16.0, ID8.4, 1.0

1 шт. в узле

24

T3050245

Screw, Cap/Hd, M8 x 16, Slv

1 шт. в узле

25

T3451260

Firtree, 5 x 11mm, Blk

3 шт. в узле

26

T3600950

O Ring, 23.47 x 2.62

1 шт. в узле

27

T3200147

Bolt, RHHF, M6 x 30

1 шт. в узле

28

T3600268

O Ring, ID 7, 52 x 3, 53

1 шт. в узле

29

T1161202

Badge, 1200, Black

1 шт. в узле

31

T2025596

Protector, Brake Hose

1 шт. в узле
