Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Bobber Triumph 2022 (VIN: SMTD53HL) Airbox

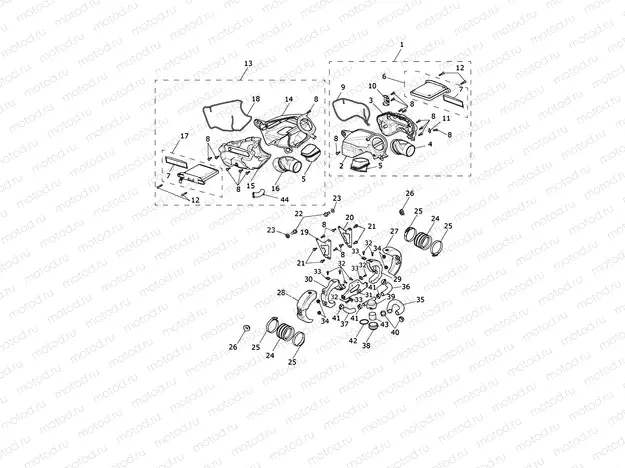

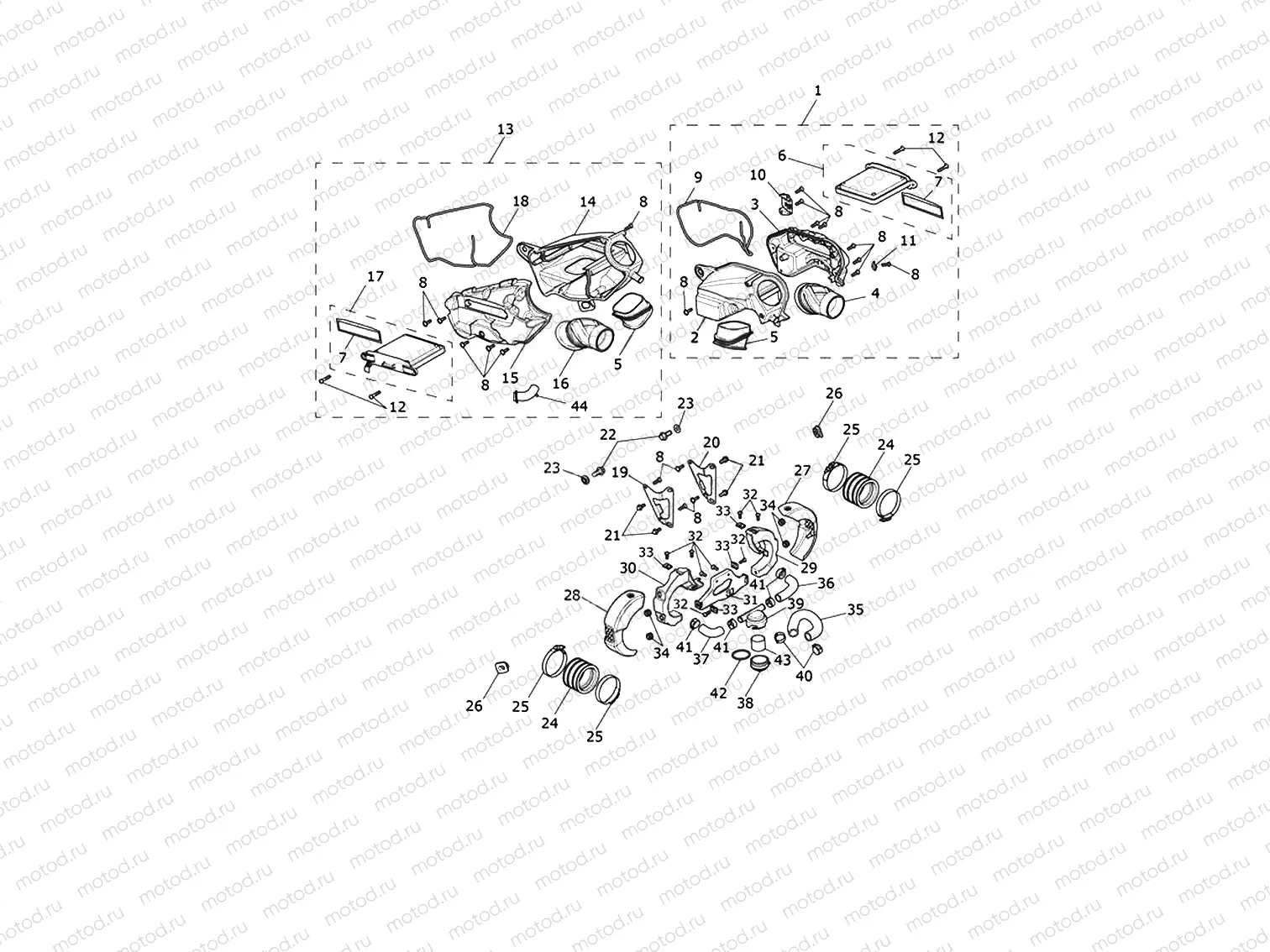

Airbox

Airbox

Например: T2206510

1

T2206510

Airbox Assy, LHS

1 шт. в узле

2

T2206511

Inner Moulding, Airbox, LHS

1 шт. в узле

3

T2206514

Outer Moulding, Airbox, LHS

1 шт. в узле

4

T2206512

Duct, Intake, Throttle, LHS

1 шт. в узле

5

T2206513

Duct, Intake, Airbox

2 шт. в узле

6

T2206530

Air Filter, LHS

1 шт. в узле

7

T2206532

Joint boîte de filtre

2 шт. в узле

8

T3331414

Screw, S/Tap, Torx, 5 x 16

19 шт. в узле

9

T2206517

Gasket, Airbox, LHS

1 шт. в узле

10

T2206536

Bracket, Fusebox

1 шт. в узле

11

T2206538

Bracket, Main Fuse

1 шт. в узле

12

T3332464

Screw, S/Tap, THF, 5 x 25

4 шт. в узле

13

T2207320

Airbox Assy, RHS, SAI

1 шт. в узле

14

T2207321

Inner Moulding, Airbox, RHS, SAI

1 шт. в узле

15

T2206524

Outer Moulding, Airbox, RHS

1 шт. в узле

16

T2206522

Duct, Intake, Throttle, RHS

1 шт. в узле

17

T2206531

Air Filter, RHS

1 шт. в узле

18

T2206518

Gasket, Airbox, RHS

1 шт. в узле

19

T2206534

Bracket, Airbox, RHS

1 шт. в узле

20

T2206535

Bracket, Airbox, LHS

1 шт. в узле

21

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

4 шт. в узле

22

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

2 шт. в узле

23

T3010077

Flanged Sleeve, M8 x 11.2 x 2.

2 шт. в узле

24

T2206519

Duct, Adjustment, Throttle

2 шт. в узле

25

T3700041

Clip, Intake, Venturi, 60mm, C

4 шт. в узле

26

T3020054

Grommet, Sidepanel

2 шт. в узле

27

T2306127

Finisher, Intake, LH, Brushed

1 шт. в узле

28

T2306128

Finisher, Intake, RH, Brushed

1 шт. в узле

29

T2206515

Mount, Intake Finisher, LH

1 шт. в узле

30

T2206516

Mount, Intake Finisher, RH

1 шт. в узле

31

T2201540

Bracket, Finisher Mount

1 шт. в узле

32

T3332656

Screw, Button, M5 x 0.8 x 12,

8 шт. в узле

33

T3350161

Nut, Captive, M5

4 шт. в узле

34

T3020131

Grommet, 9 x 2 x 6

4 шт. в узле

35

T2206539

Hose, Breather, Crankcase

1 шт. в узле

36

T2206508

Hose, Breather, LH

1 шт. в узле

37

T2206507

Hose, Breather, RH

1 шт. в узле

38

T2206505

Breather, Inline, Moulding

1 шт. в узле

39

T2206506

Cap, Breather, Inline, Mouldin

1 шт. в узле

40

T3700050

Hose Clip, Dia 19.5-22.0 x 8mm

2 шт. в узле

41

T3700076

Hose Clip, 14-15.5

4 шт. в узле

42

T3601470

O Ring, ID 32.5 x 3

1 шт. в узле

43

T2206544

Foam, Breather, Inline

1 шт. в узле
