Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Bobber Triumph 2022 (VIN: SMTD53HL) Cooling System

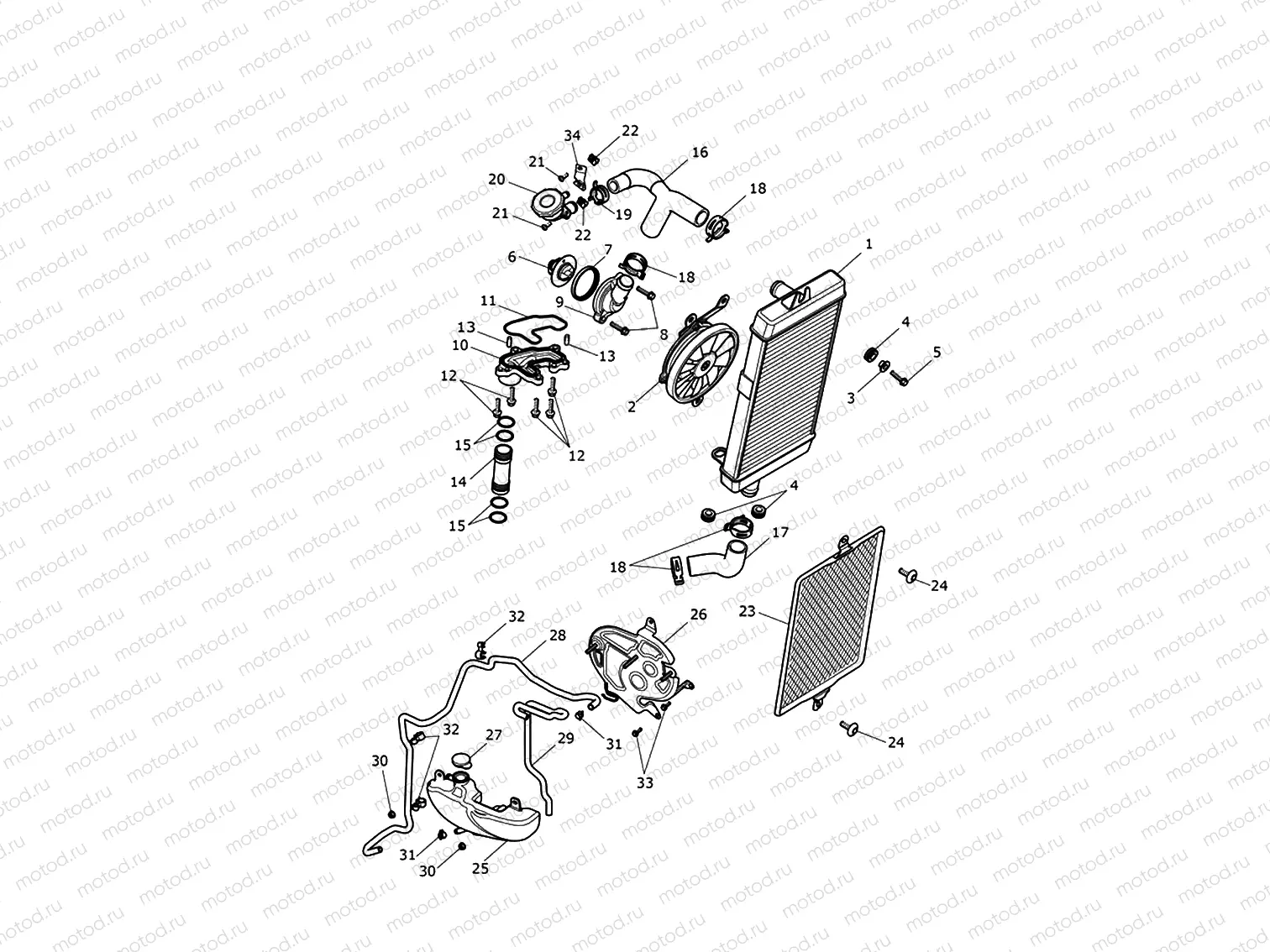

Cooling System

Cooling System

Например: T2101555

1

T2101555

Radiator

1 шт. в узле

2

T2101667

Fan, Radiator

1 шт. в узле

3

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

1 шт. в узле

4

T3020153

Grommet, 13 x 3 x 10

3 шт. в узле

5

T3205067

Vis

1 шт. в узле

6

T2100676

hermostat

1 шт. в узле

7

T2100201

Seal, Thermostat

1 шт. в узле

8

T3205083

Bolt, HHF, LGHTD, M6 x 28, Slv

2 шт. в узле

9

T2101256

Cover, Water Outlet, Short

1 шт. в узле

10

T2101266

Coolant Manifold

1 шт. в узле

11

T2101277

Sealing Ring, Coolant Manifold

1 шт. в узле

12

T3200134

Bolt, RHHF, M6x25, Encaps

5 шт. в узле

13

T3000005

Dowel, Dia 6.0 x 16

2 шт. в узле

14

T2101221

Pipe, Coolant

1 шт. в узле

15

T3600124

O-Ring (21,5x3)

4 шт. в узле

16

T2102008

Piece, Coolant Assy

1 шт. в узле

17

T2101477

Hose, Coolant, Rad to Engine

1 шт. в узле

18

T3706215

Clamp, Constant Tension, Dia 3

4 шт. в узле

19

T3706212

Clamp, Constant Tension, Dia 2

1 шт. в узле

20

T2100879

Filler Neck, Coolant

1 шт. в узле

21

T3330627

Screw, Pan/HD, TPT, Tx, M5 x 1

2 шт. в узле

22

T3350129

Nut, Captive, M5

2 шт. в узле

23

T2109603

Grill, Radiator

1 шт. в узле

24

T3330958

Screw, But/Hd, M5 x 10, Blk, Enc

2 шт. в узле

25

T2101135

Expansion Tank, Coolant

1 шт. в узле

26

T2101136

Mount, Expansion Tank

1 шт. в узле

27

T2101015

Cap, Expansion Tank

1 шт. в узле

28

T2101092

Hose, Expansion Tank, Coolant

1 шт. в узле

29

T2102555

Hose, Expansion, Overflow

1 шт. в узле

30

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

31

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

32

T3700190

Clip, Rear Brake Hose

3 шт. в узле

33

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

2 шт. в узле

34

T2100972

Filler Neck Bracket

1 шт. в узле

35

T4007777

Coolant, OAT, Premix, D2053,12 x 1L

1 шт. в узле
