Главная Каталог товаров Triumph EPC 2022 Triumph Bonneville Bobber Triumph 2022 (VIN: SMTD53HL) Seat Assembly

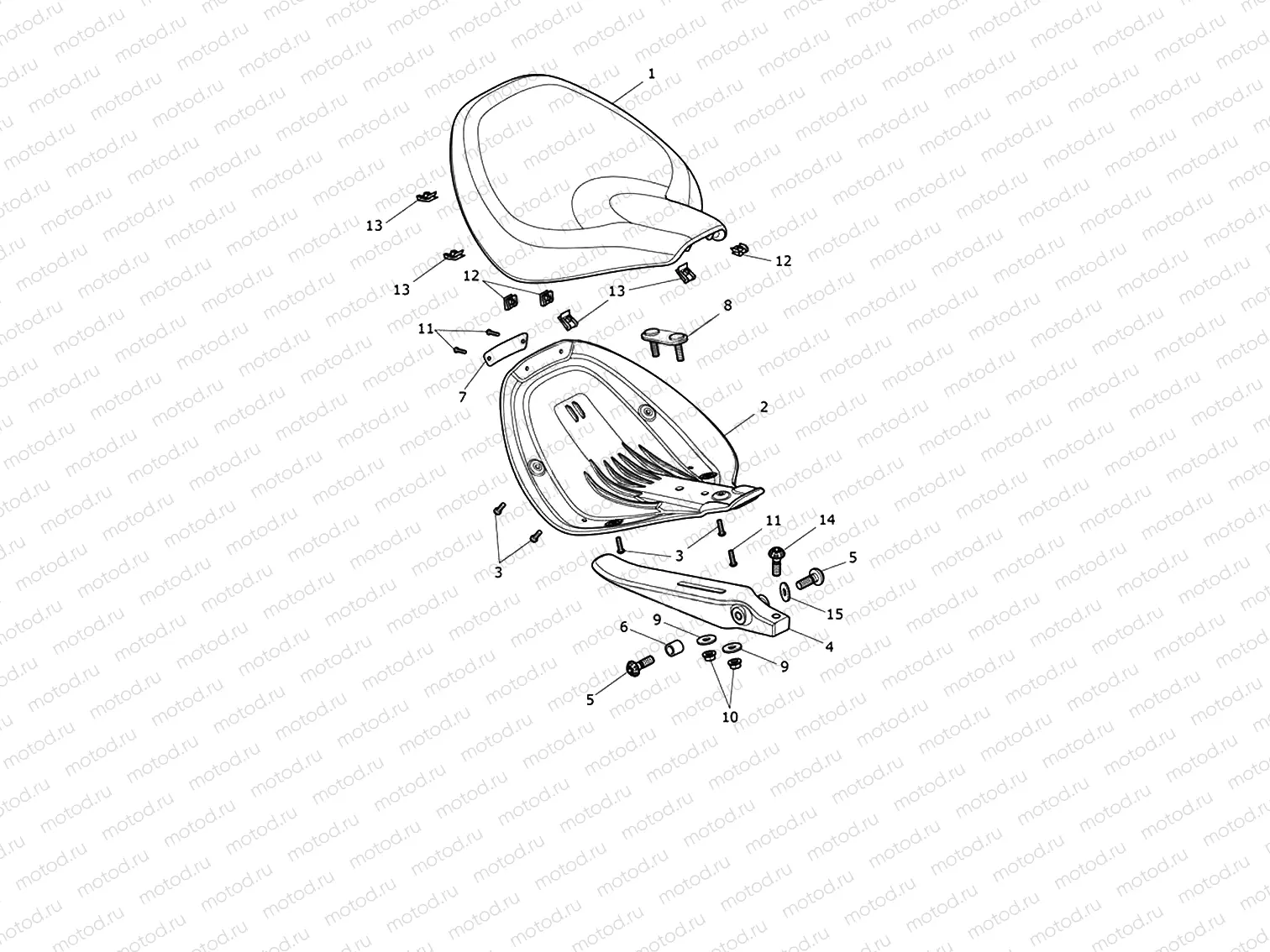

Seat Assembly

Seat Assembly

Например: T2305544

1

T2305544

Seat, Rider

1 шт. в узле

2

T2304599

Seat Pan, Rider, Brushed

1 шт. в узле

3

T3330696

Screw, But/Hd, M5 X 16, Slv

4 шт. в узле

4

T2401867

Seat Mount

1 шт. в узле

5

T3334411

Bolt, TX, M10 x 35

2 шт. в узле

6

T2308819

Sleeve, Flanged, 10.2 x 16 x 1

1 шт. в узле

7

T2309899

Badge, Seat, Bronze

1 шт. в узле

8

T2305585

Stud Plate, Fabricated

1 шт. в узле

9

T3555029

Washer, 10.5 x 23 x 2

2 шт. в узле

10

T3350134

Nut (Lock, M10x1,25)

2 шт. в узле

11

T3330444

Bolt, But/Hd, M4 x 0.7 x 16, S

3 шт. в узле

12

T3351093

Nut, Captive, M4

3 шт. в узле

13

T3350123

Nut, Captive, M5, Non-Secured

4 шт. в узле

14

T3335012

Screw, But/Hd, Skt, M8 x 25

1 шт. в узле

15

T3551282

Washer, M8, 8.4 x 15 x 1.6, Sl

1 шт. в узле

17

T2307368

Rubber Foot, Seat

2 шт. в узле
