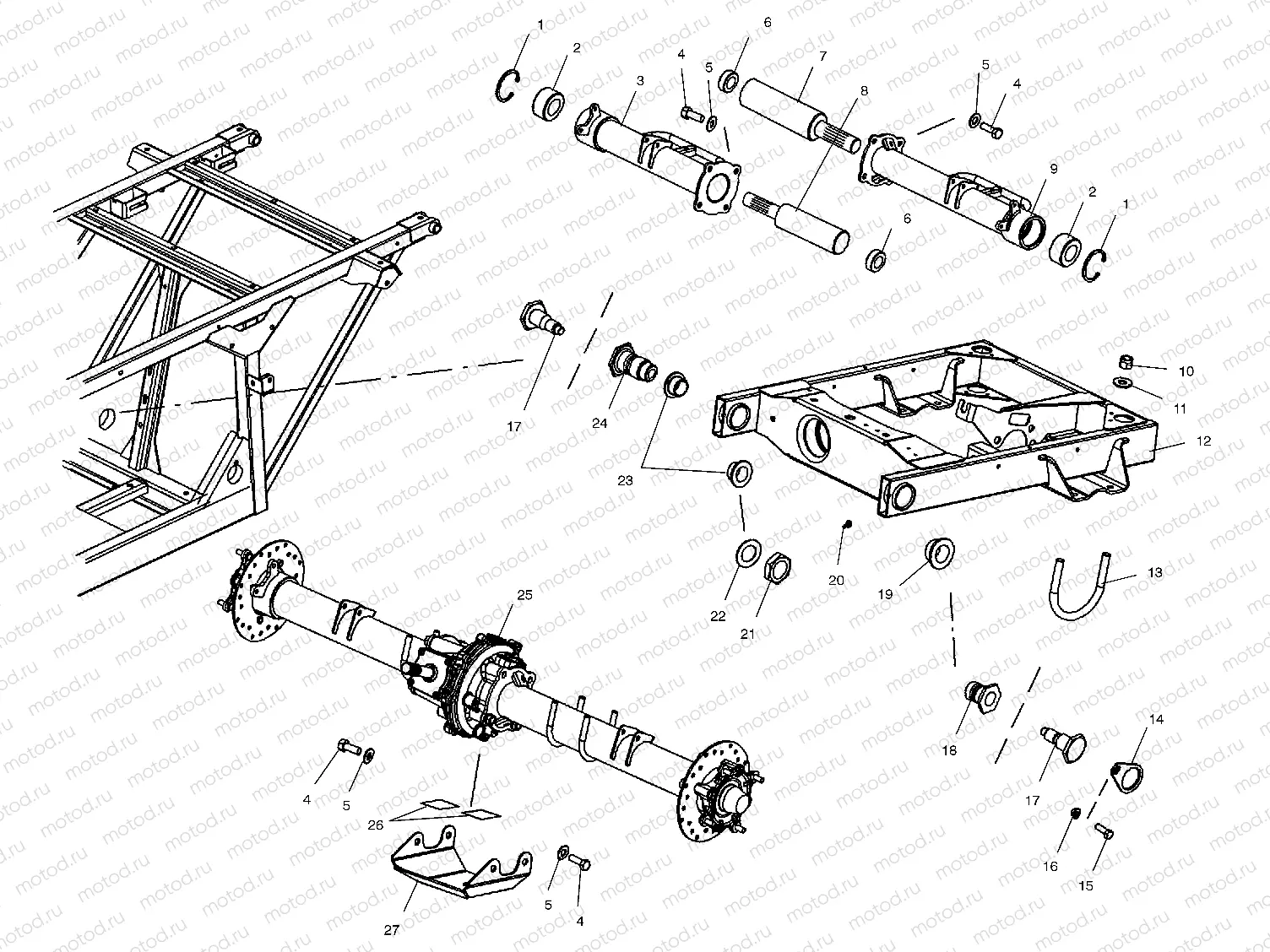

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 UTV 2X4 (C10RB42AA) Polaris SERIES 10 PPS SWING ARM - C10RB42AA (4976407640C03) | SWING ARM - C10RB42AA (4976407640C03)

SWING ARM - C10RB42AA (4976407640C03) | SWING ARM - C10RB42AA (4976407640C03)

SWING ARM - C10RB42AA (4976407640C03) | SWING ARM - C10RB42AA (4976407640C03)

Например: 7710440

1

7710440

RING RETAINING

2

3514635

BEARING-WHEEL 40X74X40MM

3

1013293-067

TUBE AXLE RH BLK

4

7517585

BOLT-1/2-13X1 1/4 HXHD GR5-Z

5

7553201

Rondelle (Lock)

6

5410772

O-RING

6

5411553

SEAL CVR INNER

7

1380203

ASM-DRIVE SHAFT AXLE LH

7

1380203

ASM-DRIVE SHAFT AXLE LH

8

1380204

ASM-DRIVE SHAFT AXLE RH

8

1380204

ASM-DRIVE SHAFT AXLE RH

9

1013292-067

TUBE AXLE LH BLK

10

7542525

NUT NYLOK

11

7555984

WASHER FLAT

12

1013295-067

Arm, Swing

13

5245127

U-BOLT RNDBND 7/16X3.62X3.12X1

14

2202397

KIT-BOLT SWINGARM

15

7512490

Vis

16

7547180

NUT-FLANGED 3/8-16 NYLON-Z (10

17

5131697

BOLT SWINGARM PIVOT

18

5133166

BUSHING-PIVOT LH

19

5434545

BUSHING-LH HYBRID BLK

20

7080424

FITTING LUBRICATION

21

7547082

NUT HEX JAM

22

7556035

WASHER FLAT

23

5434546

BUSHING-RH HYBRID BLK

24

5133167

BUSHING-PIVOT RH

25

LR--

CALIPER, BRAKE, RH

26

5811716

PAD-RUBBER

27

5245665-067

PLATE-DIFFERENTIAL SKID BLK
