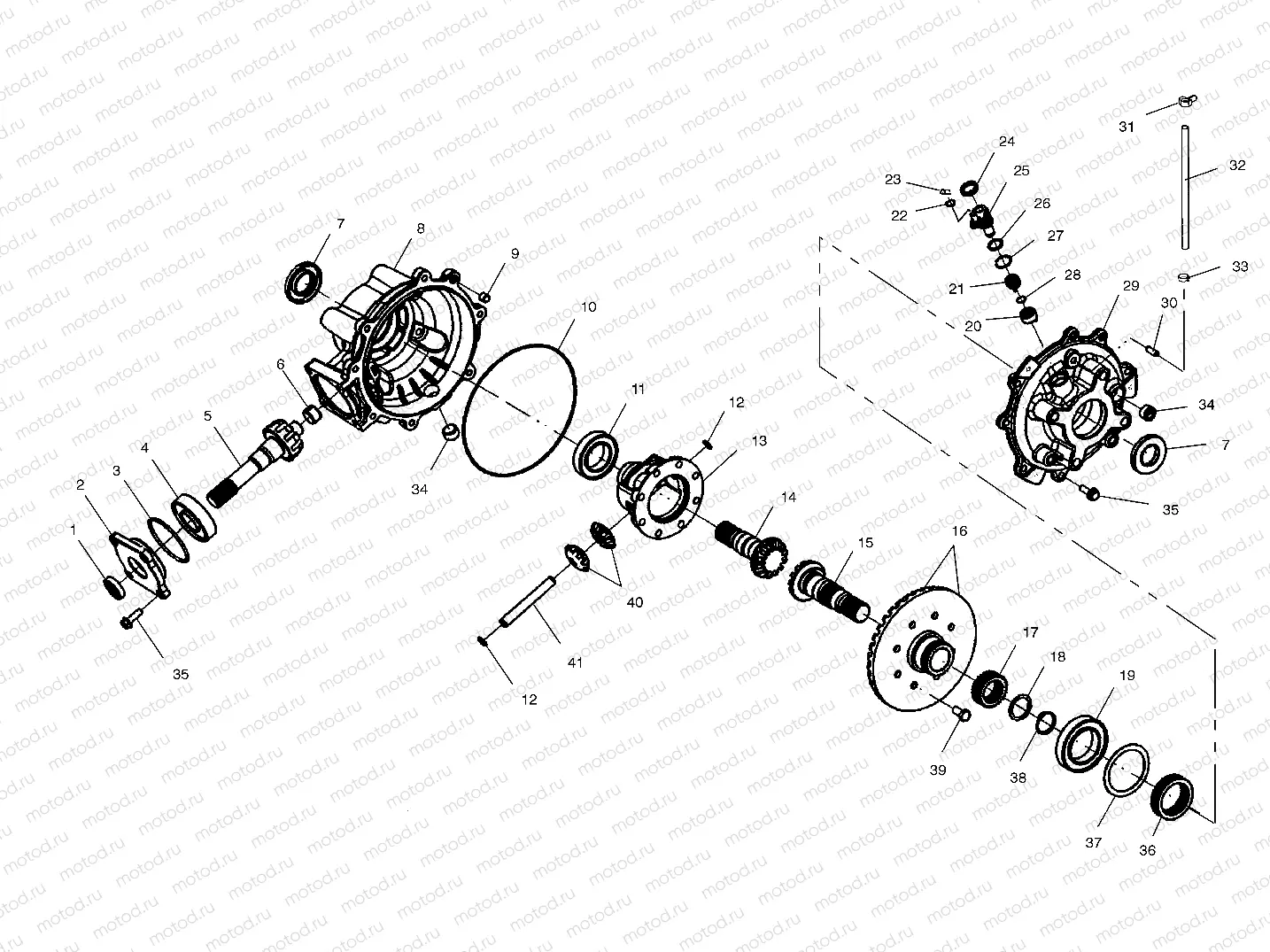

REAR GEARCASE - C10RB42AA (4976407640C10) | REAR GEARCASE - C10RB42AA (4976407640C10)

REAR GEARCASE - C10RB42AA (4976407640C10) | REAR GEARCASE - C10RB42AA (4976407640C10)

Например: 1341442

0

1341442

ASM-GEARCASE REAR DIF

0

1341442

ASM-GEARCASE REAR DIF

1

3233785

SEAL-TRIPLE LIP

2

3233800

COVER-INPUT

3

3233801

O-Ring

4

3233589

BEARING BALL

5

3233802

PINION-10T

6

3233577

BUSHING

7

3233803

SEAL

8

3233804

CASE-FRONT

9

3233529

PIPE KNOCK

10

3234017

O-RING 182MMX3MM

10

3234017

O-RING 182MMX3MM

11

3233806

BEARING-BALL

12

3233807

RING-RETAINING DIFF

13

3233810

Housing, Differential Lock

14

3234022

GEAR-OUTPUT SHAFT RH 14T

14

3234022

GEAR-OUTPUT SHAFT RH 14T

15

3234023

GEAR-OUTPUT SHAFT LH 14T

15

3234023

GEAR-OUTPUT SHAFT LH 14T

16

3233813

GEAR-RING 37T

17

3233815

COLLAR-SPINED

18

3233378

WASHER THRUST

19

3233268

BEARING BALL

20

3233822

ACTUATOR-CAM

21

3233820

SPRING-TORSION

22

7555923

Rondelle

23

7661140

PIN-CLIP 14MM

24

3233823

SEAL-VRING

25

3233818

ACTUATOR

26

5410440

O-Ring

27

3233819

RING-RETAINING

28

3233821

RING-RETAINING

29

3233817

COVER-OUTPUT

30

3233524

TUBE VENT

31

7670102

CLIP

32

8450003-600

DESC NOT_AVAILABLE

33

7080307

CLAMP HOSE

34

3233805

PLUG-DRAIN

35

3233252

Vis

36

3233816

DOG-ENGAGEMENT

37

3233581

SHIM 3.1 X 2.5

38

3233377

RING RETAINING

39

3233814

SCREW-CAP

40

3233809

PINION-DIFF 10T

41

3233808

PIN-PINION DIFF
