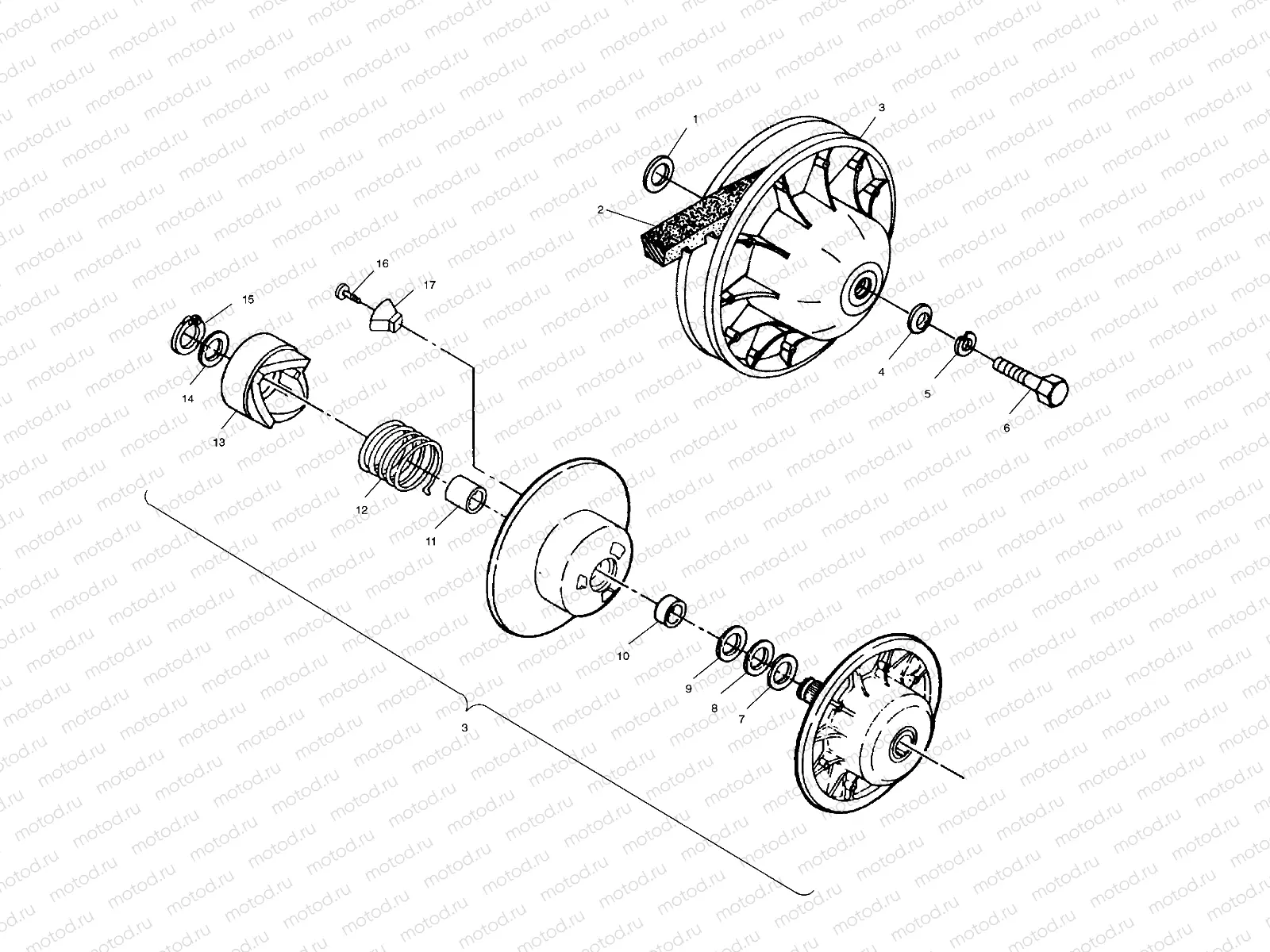

DRIVEN CLUTCH - C10RB42AA (4976407640C06) | DRIVEN CLUTCH - C10RB42AA (4976407640C06)

DRIVEN CLUTCH - C10RB42AA (4976407640C06) | DRIVEN CLUTCH - C10RB42AA (4976407640C06)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

3211113

Courroie

3

1321895

Asm., Driven Clutch [Incl. 7-17](If built after 1/28/02)

3

1322182

CLUTCH DRVN 3-ANGLE HVY RET

4

5220646

WASHER DOMED

5

7552901

Rondelle (Lock)

6

7515382

Vis

7

7555898

WASHER-1.5X2.0X.020-Y

8

7556076

WASHER-1.50X2.00X.025-Y

9

7556804

WSHR-1.505X2.00X.030-Y

10

3576504

BUSHING MOVEABLE 1/2 INCH

11

3576511

BUSHING MOVEABLE 1 INCH

12

7041782

SPRING-CLTCH CHRM SLCN BLK DRI

12

7041198

SPRING CLUTCH (RED)

13

5132344

RAMP STA COMP (MACH)

13

5133633

RAMP-STA 45-37 MACH

14

5210752

SPACER .020

14

5244116

SPACER-1.350X1.750X.020-YW/TAB

15

7710448

RING RETAINING

16

7511854

Vis

17

5450873

BUTTON (3)
