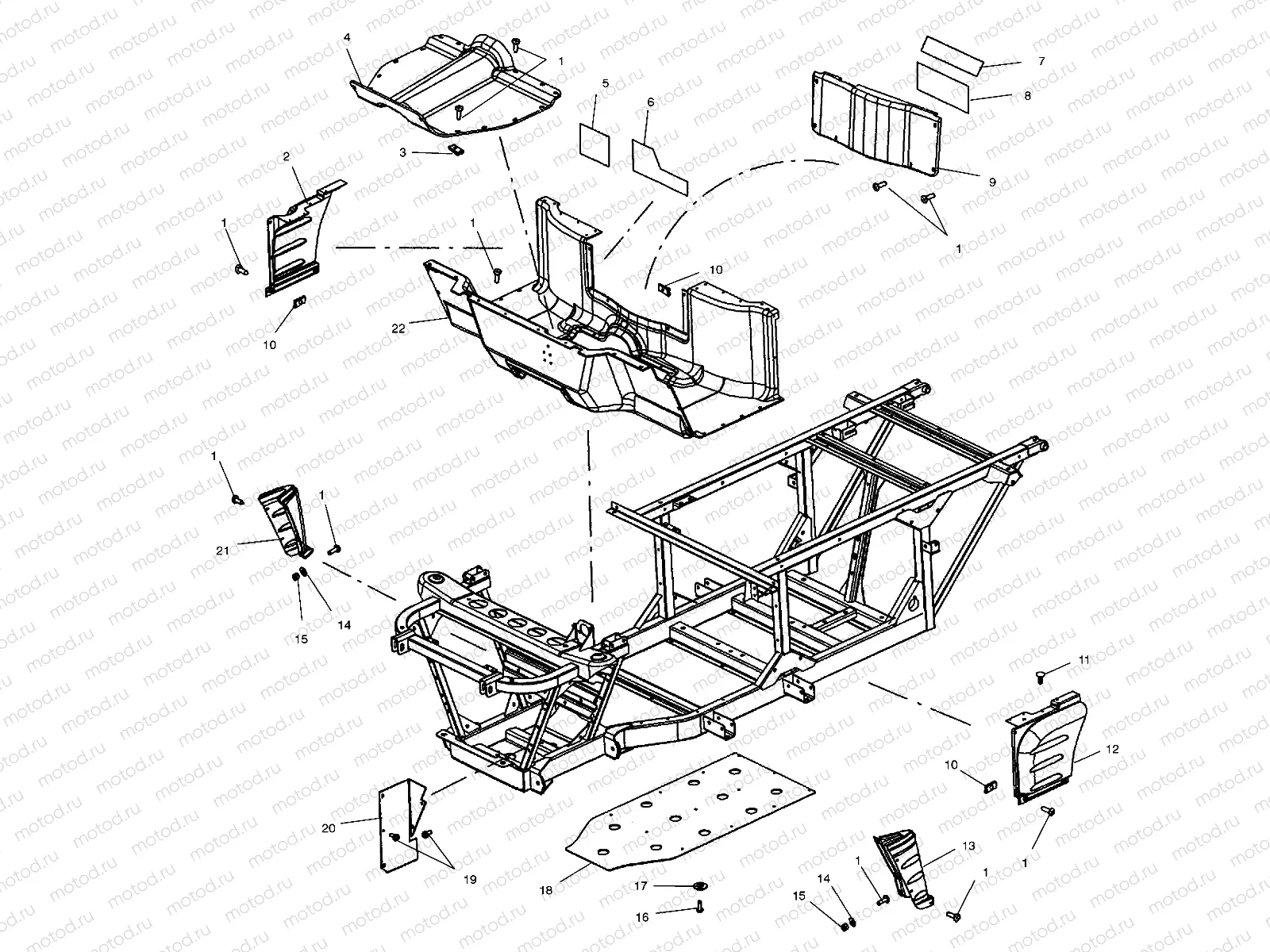

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 UTV 2X4 (C10RB42AA) Polaris SERIES 10 PPS MOLDING and SEAT - C10RB42AA (4976407640A05) | MOLDING and SEAT - C10RB42AA (4976407640A05)

MOLDING and SEAT - C10RB42AA (4976407640A05) | MOLDING and SEAT - C10RB42AA (4976407640A05)

MOLDING and SEAT - C10RB42AA (4976407640A05) | MOLDING and SEAT - C10RB42AA (4976407640A05)

Например: 7517685

1

7517685

Vis

2

5433827-070

Fender, Rear, RH (AA)(AB)

3

7670145

NUT-1/4-20 U-TYPE(1.56-.190)(1

4

5436402

COVER-DRIVE SHAFT FLOOR

5

5812222

Foil, Seat Base, Exhaust

6

5812243

Foil, Heat Shield, Floor

7

5812296

Foil, Cover, Upper

8

5812242

Foil, Heat Shield

9

2632478

ASM-FLOOR DOG HOUSE COVER

10

7670057

NUT SPEED

11

7670090

CLIP PLASTIC DART NYLON

12

5433826-070

Fender, Rear, LH (AA)(AB)

13

5435886-070

FENDER-FRONT LH BLK

14

7555935

Rondelle

15

7542122

NUT-NYLOK

16

7517386

Vis

17

7556065

WASHER SKID PLATE

18

5812176

Plate, Skid

19

7512084

Vis

20

5434027

PANEL-WHEEL WELL RH

20

5434026

Panel, Wheel Well, LH

21

5435887-070

FENDER-FRONT RH BLK

22

2632625

Floor, Main (If built before 7/07/03)
