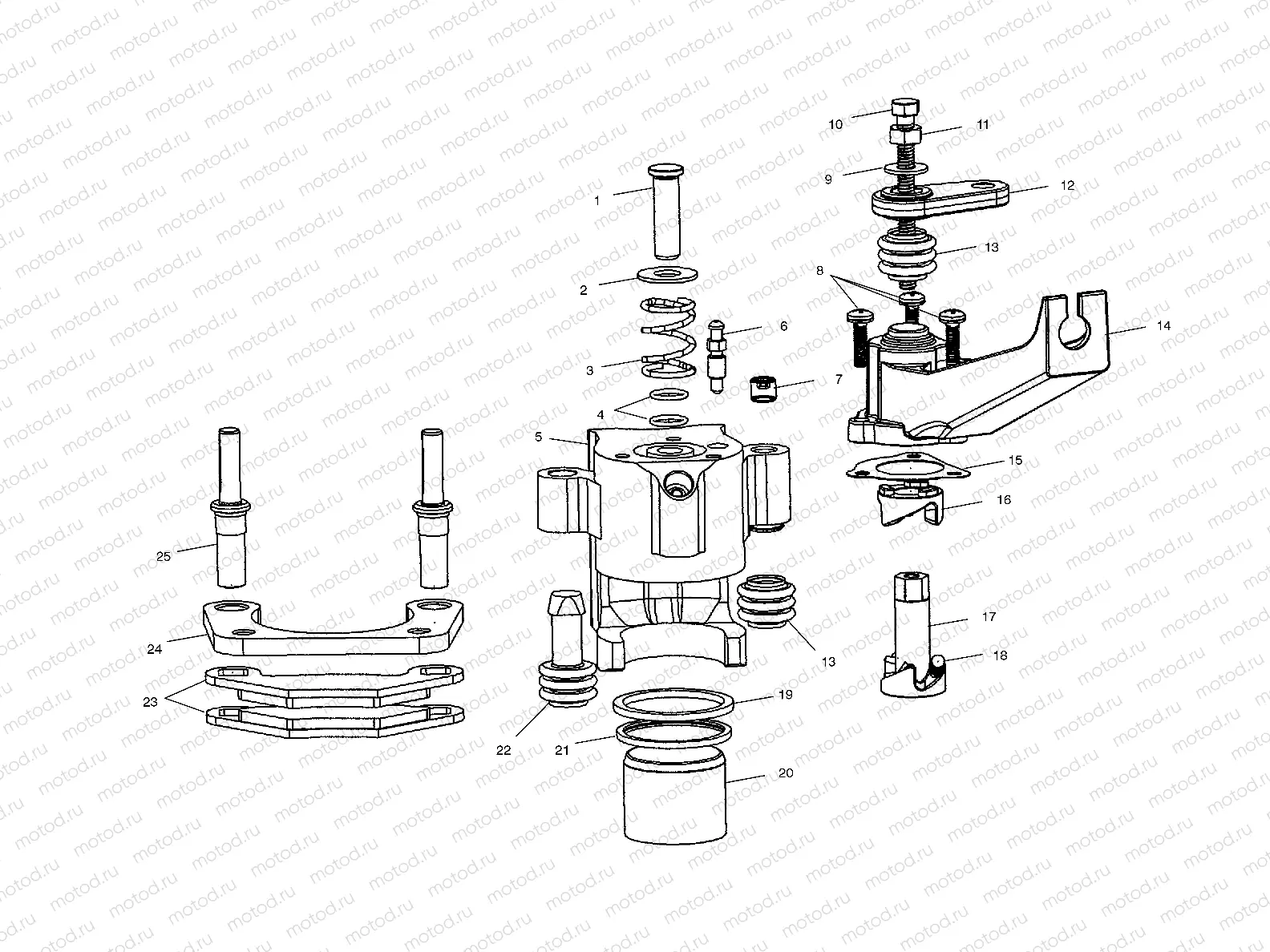

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 UTV 2X4 (C10RB42AA) Polaris SERIES 10 PPS REAR BRAKE CALIPERS - C10RB42AA (4976407640C01) | REAR BRAKE CALIPERS - C10RB42AA (4976407640C01)

REAR BRAKE CALIPERS - C10RB42AA (4976407640C01) | REAR BRAKE CALIPERS - C10RB42AA (4976407640C01)

REAR BRAKE CALIPERS - C10RB42AA (4976407640C01) | REAR BRAKE CALIPERS - C10RB42AA (4976407640C01)

Например: 5133195

1

5133195

PLUNGER-BRAKE

2

7556205

WSHR-FLAT PLUNGER

3

1910581

SPRING-COMPRESSION

4

5412127

O-RING-1/16 C/SX3/8X1/2 OD

5

1910788

ASM-CALIPER BRAKE 1.5 LH W/PB

5

1910789

ASM-CALIPER BRAKE 1.5 RH W/PB

6

7080352

SCREW BLEEDER

7

7515489

SCR-3/8-24X5/16 SOC SET-Y

8

7517963

SCR-10-32X.62 PHILLIPS SIMS

9

7556206

WSHR-1/4 FLAT .060 THK

10

7517964

BOLT-1/4-20X2 1/2 LG HEX HEAD

11

7542105

NUT HEX

12

5133196

LEVER-BRAKE ACTUATOR

13

5412506

BOOT-PIN SEAL

14

5245793

BRKT-HOUSING LH

14

5245794

BRKT-HOUSING RH

15

5830214

GASKET-RAMP

16

5133201

INSERT-BALL TRACK RH

16

5133199

Insert, Ball Track, LH

17

5133203

BRAKE-ACTUATOR RH

17

5133202

Actuator, LH

18

3514375

BALL-.187 STEEL

19

5412010

SEAL-CALIPER INNER 1.50

20

5132829

PISTON-BRAKE 1.500

21

5412011

SEAL-CALIPER OUTER 1.50

22

5412505

BOOT-PIN BUSHING

23

2202413

Plaquette de frein

24

5133197

Plate, Bracket Mount

25

5910023

Pin, Bracket Plate
