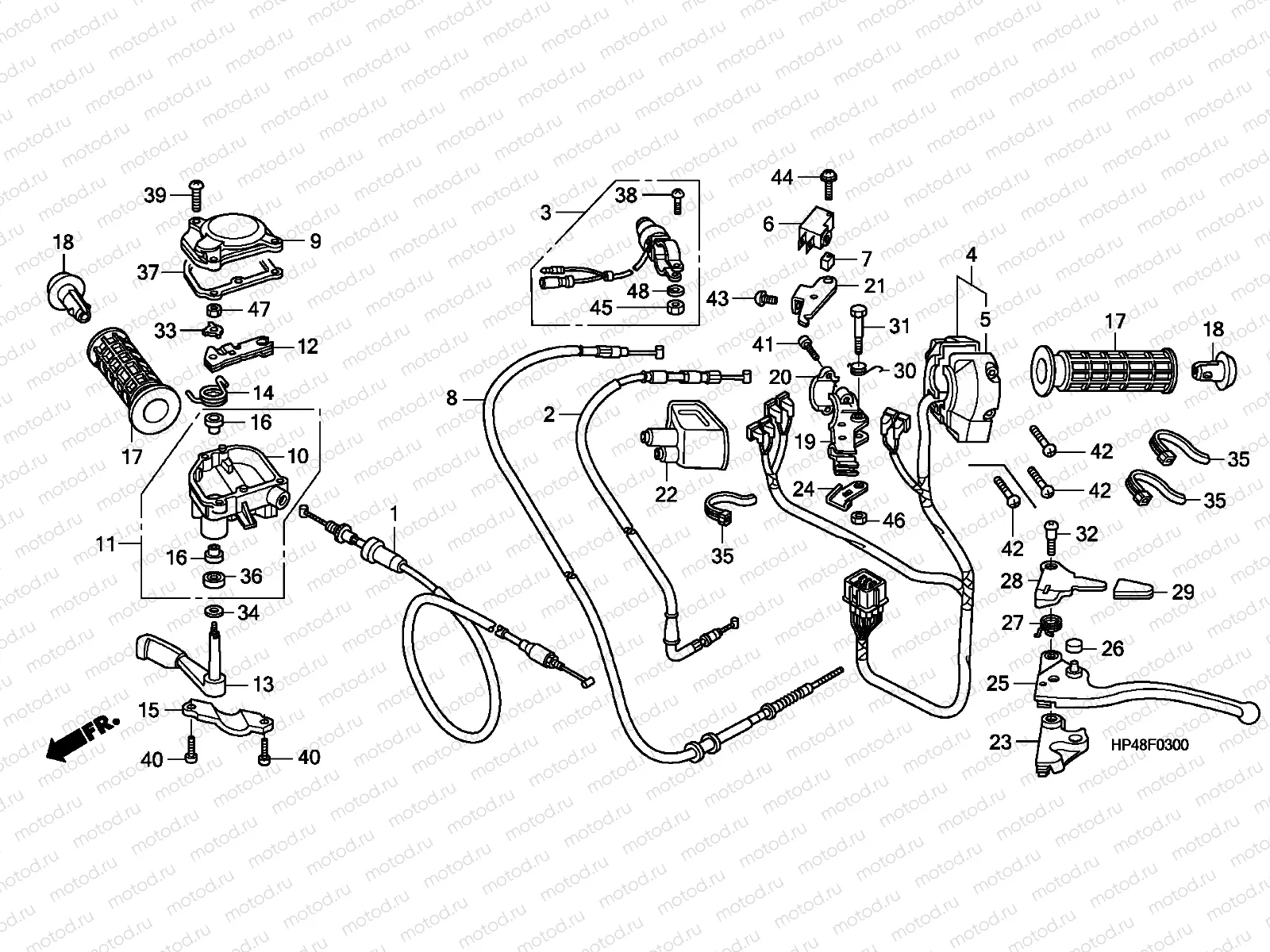

F-3 HANDLE LEVER/SWITCH/CABLE

F-3 HANDLE LEVER/SWITCH/CABLE
Например: CABLE COMP., THROTTLE
1
CABLE COMP., THROTTLE
2
CABLE, REVERSE ASSIST
3
SWITCH ASSY., HORN
4
SWITCH ASSY., LIGHTING & ENGINE STARTER
5
COVER, SWITCH
6
SWITCH ASSY., FR. STOP (TATEISHI)
7
COLLAR, STOP SWITCH
8
CABLE COMP., HAND BRAKE
9
COVER, THROTTLE CASE
10
CASE, THROTTLE LEVER
11
CASE ASSY., THROTTLE LEVER
12
ARM COMP., THROTTLE
13
LEVER, THROTTLE
14
SPRING, THROTTLE RETURN
15
HOLDER, THROTTLE CASE
16
BUSH, THROTTLE PIVOT
17
GRIP, HANDLE
18
GUARD, HANDLE END
19
BRACKET, BRAKE LEVER
20
HOLDER, LEVER BRACKET
21
STAY, PARKING BRAKE STOPPER
22
COVER, L. HANDLE
23
ARM, REVERSE ASSISTANT
24
HOLDER, STOP SWITCH SUB CORD
25
LEVER COMP., RR. BRAKE
26
CAP, REVERSE PIN
27
SPRING, PARKING BRAKE LEVER
28
LEVER, PARKING BRAKE LOCK
29
CAP, PARKING LEVER
30
SPRING, LEVER RETURN
31
BOLT, HANDLE LEVER PIVOT
32
SCREW, PARKING LEVER PIVOT
33
WASHER, LOCK, 6MM
34
WASHER, 9X20
35
BAND, WIRE HARNESS
36
DUST SEAL, 9X16X5(NOK)
36
DUST SEAL, 9X16X5(ARAI)
37
PACKING, THROTTLE CASE
38
SCREW, PAN, 4X14
39
SCREW, PAN, 4X16
40
SCREW, PAN, 5X14
41
SCREW, PAN, 5X18
42
SCREW, PAN, 5X25
43
SCREW, PAN, 6X16
44
SCREW-WASHER, 4X22
45
NUT, HEX., 4MM
46
NUT, HEX., 6MM
47
NUT, HEX., 6MM
48
WASHER, SPRING, 4MM
