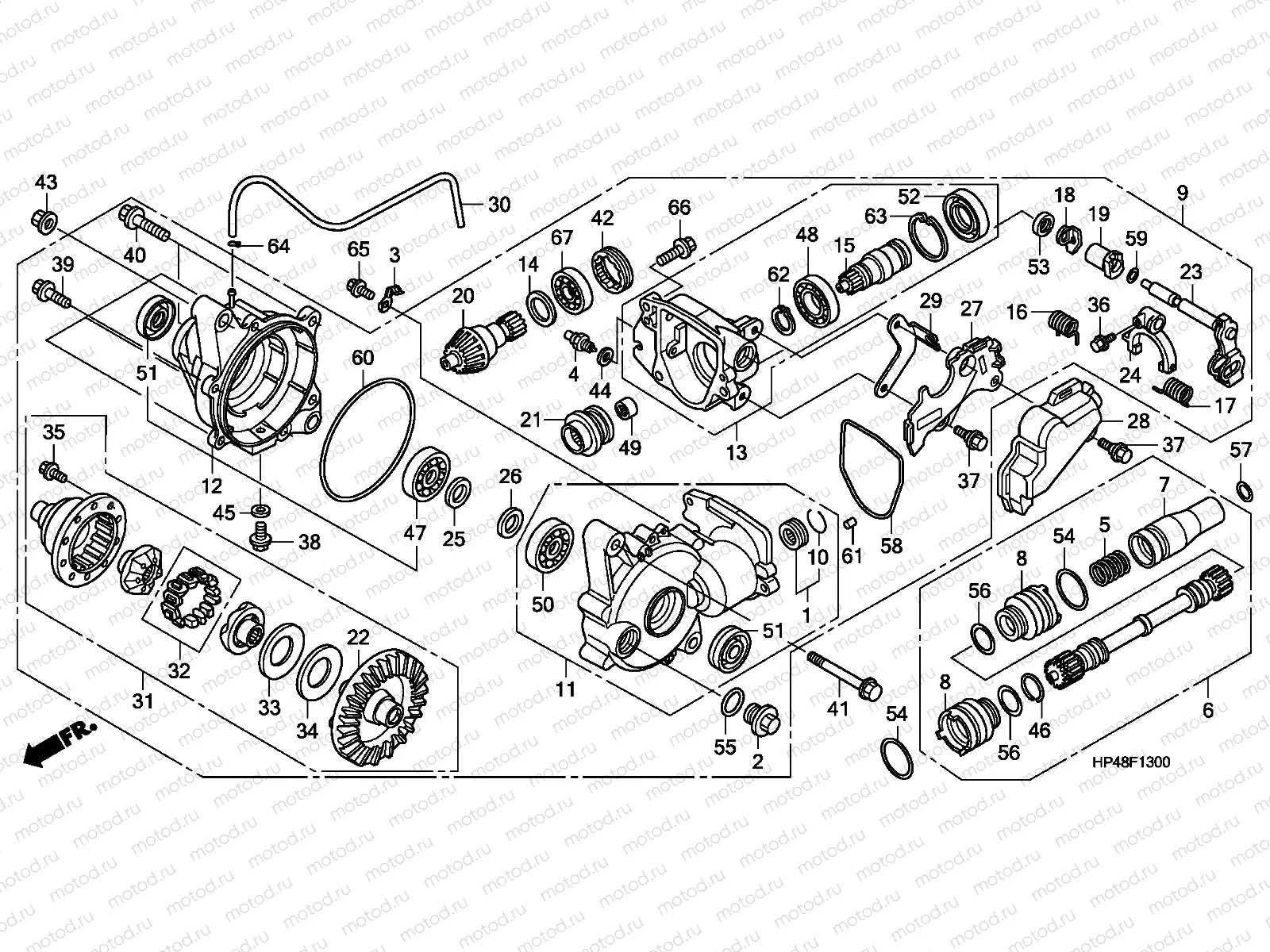

F-13 FRONT FINAL GEAR

F-13 FRONT FINAL GEAR
Например: BEARING SET, NEEDLE
1
BEARING SET, NEEDLE
2
CAP, TAPPET ADJUSTING HOLE
3
CLIP, A.C. GENERATOR CORD
4
SWITCH ASSY., NEUTRAL
5
SPRING, SHAFT
6
SHAFT ASSY., FR. PROPELLER
7
JOINT, FR. PROPELLER SHAFT
8
BOOT, PROPELLER SHAFT COVER
9
GEAR ASSY., FR. FINAL
10
RING, STOPPER
11
CASE SUB ASSY., FR. GEAR
12
COVER SUB ASSY., FR. GEAR CASE
13
CASE SUB ASSY., FR. CLUTCH
14
SHIM O, PINION GEAR (2.48)
14
SHIM C, PINION GEAR(1.76)
14
SHIM G, PINION GEAR (2.00)
14
SHIM B, PINION GEAR (1.70)
14
SHIM H, PINION GEAR (2.06)
14
SHIM L, PINION GEAR (2.30)
14
SHIM A, PINION GEAR (1.64)
14
SHIM M, PINION GEAR (2.36)
14
SHIM E, PINION GEAR (1.88)
14
SHIM I, PINION GEAR (2.12)
14
SHIM J, PINION GEAR (2.18)
14
SHIM K, PINION GEAR (2.24)
14
SHIM F, PINION GEAR (1.94)
14
SHIM D, PINION GEAR (1.82)
14
SHIM N, PINION GEAR (2.42)
15
JOINT, FR. FINAL CLUTCH
16
SPRING, FR. FINAL CLUTCH
17
SPRING, FR. FINAL CLUTCH LOCK
18
STOPPER, FR. FINAL CLUTCH
19
COLLAR, FR. FINAL CLUTCH
20
GEAR, FR. PINION (13T)
21
SLEEVE, FR. FINAL CLUTCH
22
GEAR, FR. RING (42T)
23
SHAFT COMP., FR. FINAL CLUTCH
24
FORK COMP., FR. FINAL CLUTCH
25
SHIM O, DIFFERENTIAL CASE (1.20)
25
SHIM P, DIFFERENTIAL CASE (1.25)
25
SHIM J, DIFFERENTIAL CASE (0.95)
25
SHIM G, DIFFERENTIAL CASE (0.80)
25
SHIM I, DIFFERENTIAL CASE (0.90)
25
SHIM C, DIFFERENTIAL CASE (0.60)
25
SHIM K, DIFFERENTIAL CASE (1.00)
25
SHIM H, DIFFERENTIAL CASE (0.85)
25
SHIM R, DIFFERENTIAL CASE (1.35)
25
SHIM Q, DIFFERENTIAL CASE (1.30)
25
SHIM S, DIFFERENTIAL CASE (1.40)
25
SHIM A, DIFFERENTIAL CASE (0.50)
25
SHIM F, DIFFERENTIAL CASE (0.75)
25
SHIM M, DIFFERENTIAL CASE (1.10)
25
SHIM W, DIFFERENTIAL CASE (1.60)
25
SHIM T, DIFFERENTIAL CASE (1.45)
25
SHIM B, DIFFERENTIAL CASE (0.55)
25
SHIM E, DIFFERENTIAL CASE (0.70)
25
SHIM U, DIFFERENTIAL CASE (1.50)
25
SHIM D, DIFFERENTIAL CASE (0.65)
25
SHIM N, DIFFERENTIAL CASE (1.15)
25
SHIM V, DIFFERENTIAL CASE (1.55)
25
SHIM L, DIFFERENTIAL CASE (1.05)
26
SHIM N, RING GEAR (1.15)
26
SHIM C, RING GEAR (0.60)
26
SHIM Q, RING GEAR (1.30)
26
SHIM T, RING GEAR (1.45)
26
SHIM R, RING GEAR (1.35)
26
SHIM P, RING GEAR (1.25)
26
SHIM H, RING GEAR (0.85)
26
SHIM W, RING GEAR (1.60)
26
SHIM E, RING GEAR (0.70)
26
SHIM B, RING GEAR (0.55)
26
SHIM S, RING GEAR (1.40)
26
SHIM G, RING GEAR (0.80)
26
SHIM I, RING GEAR (0.90)
26
SHIM M, RING GEAR (1.10)
26
SHIM L, RING GEAR (1.05)
26
SHIM J, RING GEAR (0.95)
26
SHIM D, RING GEAR (0.65)
26
SHIM A, RING GEAR (0.50)
26
SHIM F, RING GEAR (0.75)
26
SHIM U, RING GEAR (1.50)
26
SHIM V, RING GEAR (1.55)
26
SHIM K, RING GEAR (1.00)
26
SHIM O, RING GEAR (1.20)
27
CASE, CLUTCH ARM
28
COVER, CLUTCH ARM
29
STAY, CLUTCH CABLE
30
TUBE, BREATHER, 3.5X1090
31
DIFFERENTIAL ASSY.
32
FOLLOWER SET, CAM
33
SHIM E (1.7)
33
SHIM A (1.3)
33
SHIM G (1.9)
33
SHIM B (1.4)
33
SHIM D (1.6)
33
SHIM F (1.8)
33
SHIM C (1.5)
34
SPRING, DIFFERENTIAL SIDE CONED
35
BOLT, 8X17
36
BOLT, SPECIAL, 6MM
37
BOLT, FR. FENDER FIXING
38
BOLT, SEALING, 8MM
39
BOLT, FLANGE, 8X27
40
BOLT, FLANGE, 10X35
41
BOLT, FLANGE, 10X75
41
BOLT, FLANGE, 10X77
42
NUT, LOCK, 64MM
43
NUT, SELF-LOCK, 10MM
44
WASHER, NEUTRAL SWITCH
45
PACKING, 8MM
46
CLIP, NEEDLE THRUST BEARING, 12MM
47
BEARING, RADIAL BALL, 29X52X12 (KOYO)
48
BEARING, BALL RADIAL, 32X58X13
49
BEARING, NEEDLE, 12X18X12
50
BEARING, RADIAL BALL, 32X58X13 (KOYO)
51
OIL SEAL, 22X48X7(ARAI)
52
OIL SEAL, 42X58X8
53
DUST SEAL, 22X28X5
54
BAND, BOOT (D27)
55
O-RING, 30.8MM
56
BAND, BOOT (D20)
57
O-RING, 18.5X2.4 (ARAI)
58
GASKET, FR. FINAL CLUTCH COVER
59
O-RING, 8.5X1.5
60
O-RING, 136X2
61
DOWEL PIN, 6X10
62
CIRCLIP, EXTERNAL, 32MM
63
CIRCLIP, INTERNAL, 58MM
64
CLIP, TUBE (C6.5)
65
BOLT, FLANGE, 6X12
66
BOLT, FLANGE, 8X25
67
BEARING, RADIAL BALL, 6206
