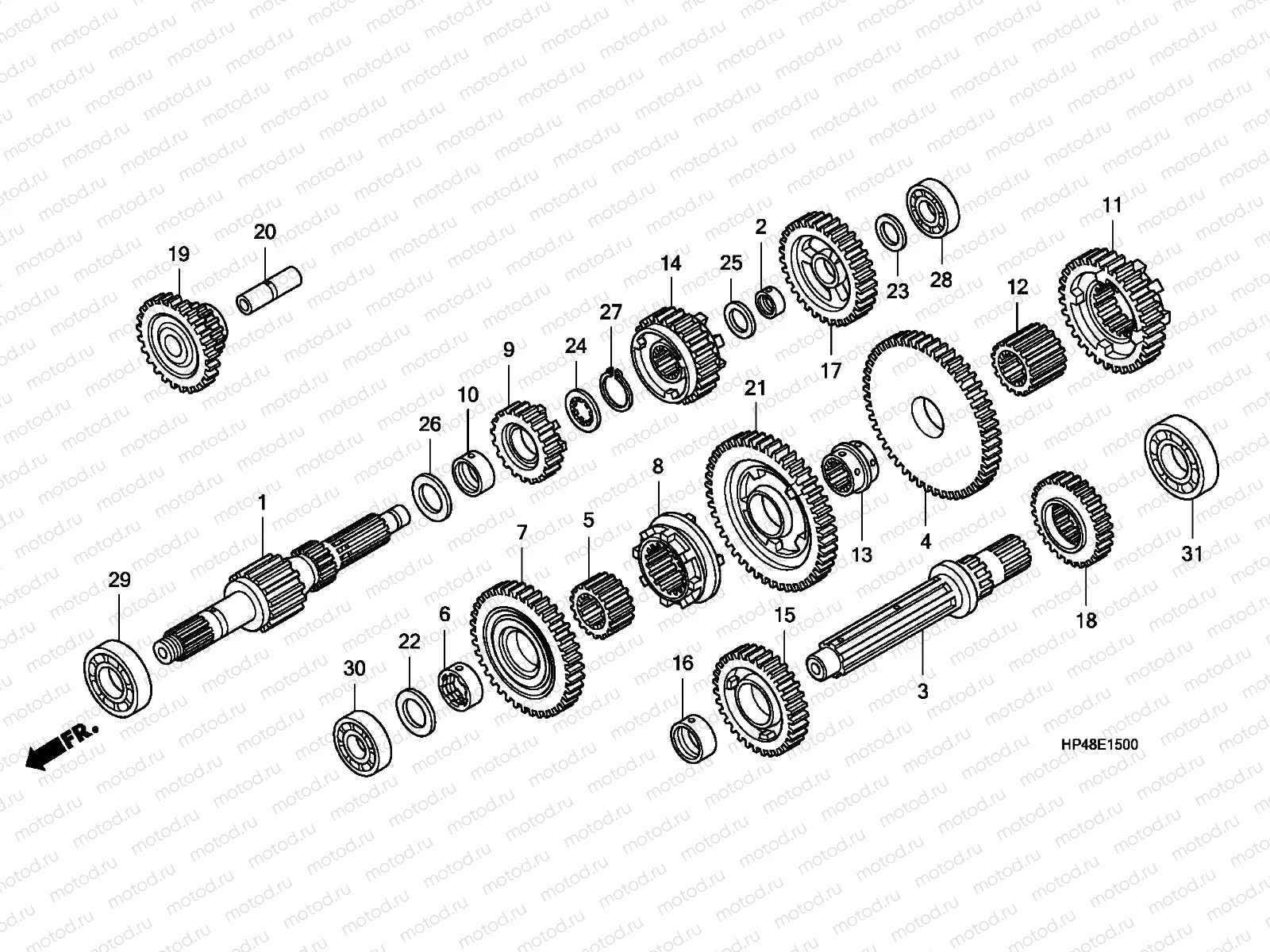

E-15 TRANSMISSION

E-15 TRANSMISSION
Например: MAINSHAFT, TRANSMISSION (14T/17T)
1
MAINSHAFT, TRANSMISSION (14T/17T)
2
BUSH, 17MM
3
COUNTERSHAFT, TRANSMISSION
4
GEAR, COUNTERSHAFT LOW(54T)
5
COLLAR A, SPLINE
6
BUSH, SPLINE, 25MM
7
GEAR, COUNTERSHAFT SECOND(38T)
8
SHIFTER, COUNTERSHAFT SECOND &REVERSE GEAR
9
GEAR, MAINSHAFT THIRD(21T)
10
BUSH, 22X25X10.2
11
GEAR, COUNTERSHAFT THIRD(33T)
12
COLLAR B, SPLINE
13
BUSH A, SPLINE, 25MM
14
GEAR, MAINSHAFT FOURTH(28T)
15
GEAR, COUNTERSHAFT FOURTH(33T)
16
COLLAR, 25X28X12.5
17
GEAR, MAINSHAFT FIFTH(33T)
18
GEAR, COUNTERSHAFT FIFTH(28T)
19
GEAR, REVERSE IDLE(14T/25T)
20
SHAFT, REVERSE IDLE
21
GEAR, COUNTERSHAFT REVERSE (46T)
22
WASHER, THRUST, 20MM
23
WASHER, SPECIAL, 17MM
24
WASHER, SPLINE, 22MM
25
WASHER, THRUST, 17MM
26
WASHER B, THRUST, 22MM (BLUE)
27
CIRCLIP, 22MM
28
BEARING, RADIAL BALL, 6203
29
BEARING, BALL, 62/22(NTN)
30
BEARING, RADIAL BALL, 6204
31
BEARING, RADIAL BALL, 6305
