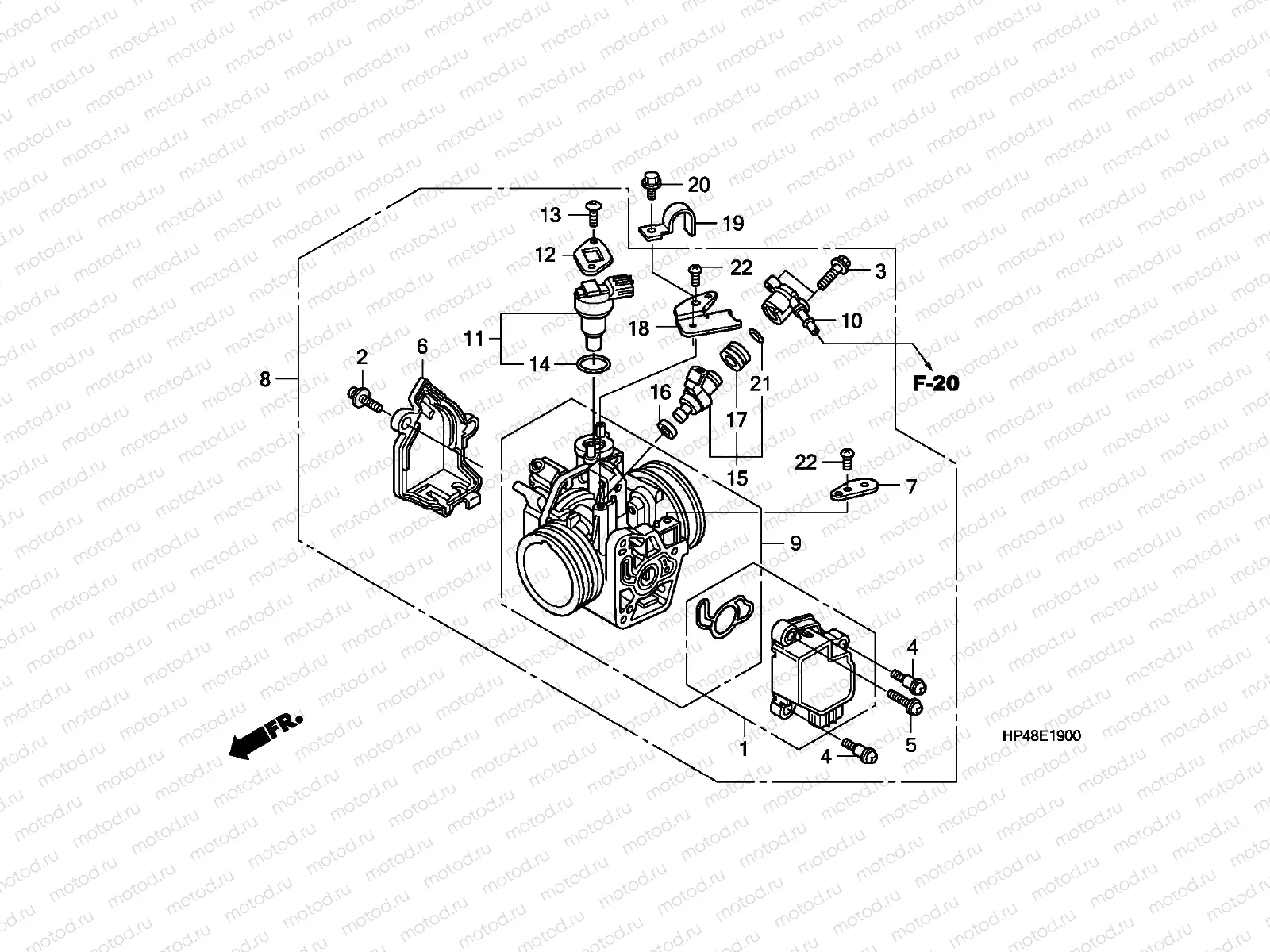

E-19 THROTTLE BODY

E-19 THROTTLE BODY
Например: SENSOR SET
1
SENSOR SET
2
SCREW-WASHER
3
BOLT, FLANGE, 5X20
4
SCREW, TORX, 5X8.7
5
SCREW, TORX, 5X17
6
COVER, BODY
7
STAY, HARNESS CLAMPER
8
THROTTLE BODY ASSY. (GQB1A A)
9
BODY SET
10
JOINT, INJECTOR
11
VALVE SET, IDLE AIR CONTROL
12
PLATE, IDLE AIR CONTROL VALVE
13
SCREW, TORX
14
O-RING, 17.8X1.9
15
INJECTOR ASSY., FUEL
16
SEAL RING, INJECTOR
17
CUSHION RING, INJECTOR
18
BASE, CLAMP
19
CLAMPER, FUEL HOSE
20
BOLT, FLANGE, 5X10
21
O-RING, 7.8X1.9
22
SCREW, PAN, 5X10
