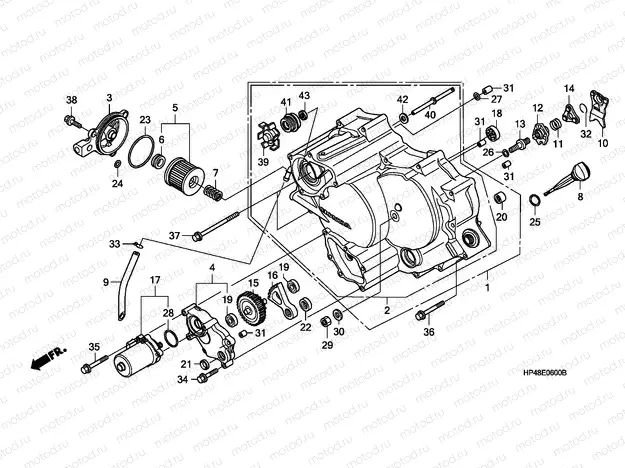

E-6 FRONT CRANKCASE COVER

E-6 FRONT CRANKCASE COVER
Например: COVER ASSY., FR. CRANKCASE
1
COVER ASSY., FR. CRANKCASE
2
COVER ASSY., FR. CRANKCASE
2
COVER ASSY., FR. CRANKCASE
3
COVER COMP., OIL FILTER
4
COVER COMP., REDUCTION GEAR
5
ELEMENT, OIL FILTER
6
RUBBER, FILTER
7
SPRING, OIL FILTER ELEMENT SETTING
8
GAUGE, OIL LEVEL
9
HOSE, DRAIN
10
PLATE, CLUTCH CAM
11
SPRING, CAM PLATE SIDE
12
PLATE COMP., CLUTCH LIFTER
13
BOLT, CLUTCH ADJUSTING
14
RETAINER COMP., BALL
15
GEAR, REDUCTION SHAFT(10T/84T)
16
GEAR, SHIFT REDUCTION(70T)
17
MOTOR ASSY., CONTROL
18
BEARING, RADIAL BALL, 15X32X9
19
BEARING, RADIAL BALL, 608ZZ
20
BEARING, NEEDLE, 10X14X10 (TORRINGTON)
20
BEARING, NEEDLE, 1010 (NTN)
21
OIL SEAL, 9X18X7(ARAI)
22
OIL SEAL, 12X22X5
23
O-RING, 54X2.4(ARAI)
24
O-RING, 11X1.9(NOK)
25
0-RING, 18X3 (ARAI)
26
O-RING, 8.2X1.5
27
0-RING, 7.8X1.9 (N0K)
28
0-RING, C0NTR0L M0T0R
29
NUT, HEX., 8MM
30
WASHER, PLAIN, 8MM
31
DOWEL PIN, 8X14
32
94601-15000
Borgveer 15mm
50 ₽/шт
33
CLIP, TUBE (B12.5)
34
BOLT, FLANGE, 6X30
35
BOLT, FLANGE, 6X55
36
BOLT, FLANGE, 6X60
37
BOLT, FLANGE, 6X110
38
BOLT, FLANGE, 6X18
39
IMPELLER, WATER PUMP
40
SHAFT, WATER PUMP
41
SEAL, MECHANICAL
42
WASHER, THRUST, 12X23X2
43
OIL SEAL, 12X26X7 (ARAI)
