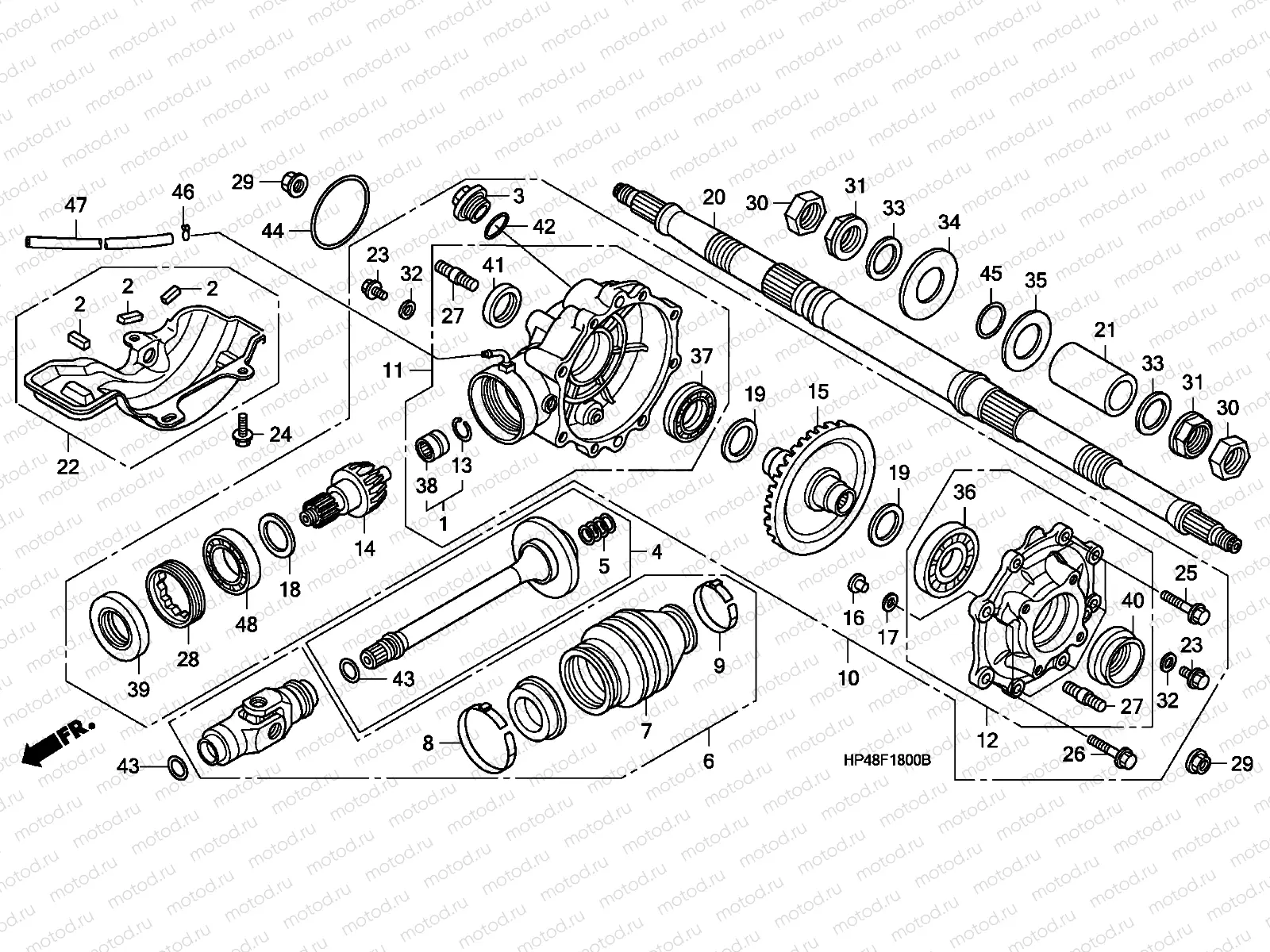

F-18 REAR FINAL GEAR

F-18 REAR FINAL GEAR
Например: BEARING SET, NEEDLE
1
BEARING SET, NEEDLE
2
RUBBER COMP., OVER HEAD COVER
3
CAP, TAPPET ADJUSTING HOLE
4
SHAFT COMP., RR. PROPELLER
5
SPRING, PROPELLER SHAFT
6
JOINT ASSY., YOKE
7
BOOT, YOKE JOINT
8
BAND A, YOKE JOINT BOOT
9
BAND B, YOKE JOINT BOOT
10
GEAR ASSY., RR. FINAL
11
CASE SUB ASSY., FINAL GEAR
12
COVER SUB ASSY., FINAL GEAR
13
RING, STOPPER
14
GEAR, RR. PINION(20T)
15
GEAR, RR. RING(41T)
16
PIN, RING GEAR STOPPER
17
SHIM B, STOPPER PIN(0.15)
17
SHIM A, STOPPER PIN(0.10)
18
SPACER C, RING GEAR (1.94)
18
SPACER F, RING GEAR(2.12)
18
SPACER A, RING GEAR (1.82)
18
SPACER D, RING GEAR(2.00)
18
SPACER G, RING GEAR (2.18)
18
SPACER I, RING GEAR (2.30)
18
SPACER E, RING GEAR (2.06)
18
SPACER B, RING GEAR(1.88)
18
SPACER H, RING GEAR(2.24)
19
SHIM D, RING GEAR (1.44)
19
SHIM E, RING GEAR (1.50)
19
SHIM J, RING GEAR (1.80)
19
SHIM C, RING GEAR (1.38)
19
SHIM B, RING GEAR (1.32)
19
SHIM H, RING GEAR (1.68)
19
SHIM G, RING GEAR (1.62)
19
SHIM F, RING GEAR (1.56)
19
SHIM I, RING GEAR (1.74)
19
SHIM K, RING GEAR (1.86)
19
SHIM A, RING GEAR (1.26)
20
AXLE COMP., RR.
21
COLLAR C, RR. AXLE
22
GUARD COMP., FINAL
23
BOLT, SEALING, 8MM
24
BOLT, SENSOR LOCK (8X14)
25
BOLT, FLANGE, 8X27
26
BOLT, FLANGE, 10X35
27
BOLT, STUD, 10X22
28
NUT, LOCK, 64MM
29
NUT, SELF-LOCK, 10MM
30
NUT, RR. AXLE
31
NUT A, RR. AXLE
32
PACKING, 8MM
33
WASHER, TAPER
34
WASHER, 32X86X1.5
35
WASHER, 32X67X1.5
36
BEARING, BALL, 6009 (NTN)
37
BEARING SET, RADIAL BALL, 45X58X14
38
BEARING, NEEDLE, 15X25X17
39
OIL SEAL, 39X70X11
40
OIL SEAL, 44X63X8
41
OIL SEAL, 42X51X7
42
O-RING, 30.8MM
43
O-RING, 19.4X2.3
44
O-RING, 75X3.2 (NOK)
45
O-RING, 31.6X2.2
46
CLIP, TUBE (C6.5)
47
TUBE, 3.5X980 (95005-35001-30M)
48
BEARING, RADIAL BALL, 6007
