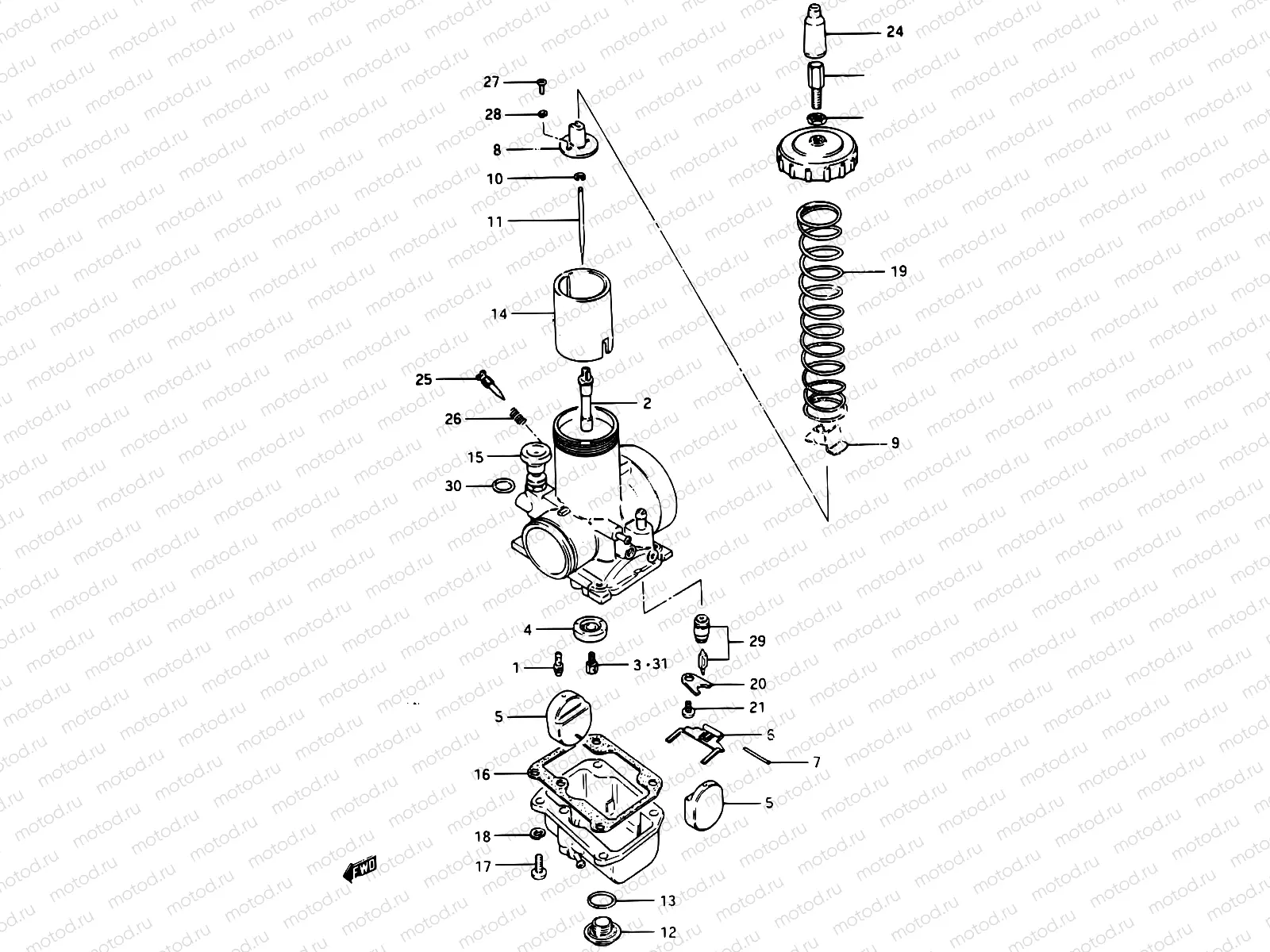

5 - CARBURETOR (MODEL X)

5 - CARBURETOR (MODEL X)
Например: 09492-60004
1
09492-60004
.jet, pilot (60)
2
09494-00321
.jet, needle (r-8)
3
09491-62005
Жиклер главный
790 ₽/шт
4
13331-40600
.ring
5
13252-16600
Поплавок
1 795 ₽/шт
6
13253-40200
.arm, float
7
13254-01010
PIN,FLOAT
162 ₽/шт
8
13581-40200
Holder,throttle
9
13629-40200
.cover, holder
10
13394-40D20
E RING
282 ₽/шт
11
13383-14200
.needle, jet (6fj37-2)
12
13247-40600
.plug, drain
13
09280-20003
O RING(D:1.5,ID:19.5)
187 ₽/шт
14
13551-14200
.valve, throttle (ca:2.0)
15
13410-14100
.plunger assy, starter
16
13251-40230
Gasket
17
02112-05167
Болт
81 ₽/шт
18
08321-0105A
Пластина замка
81 ₽/шт
19
13573-16601
.spring, return
20
13373-39110
Плата клапана
422 ₽/шт
21
02112-0406B
Болт
81 ₽/шт
22
13577-41612
Регулятор кабеля
587 ₽/шт
23
13661-16600
Кабель регулирующий
313 ₽/шт
24
13681-33010
Кабель регулирующий
595 ₽/шт
25
13269-15010
Screw,pilot air
26
13200-14210
Carburettor
26
13268-01010
Прушина стопорная
211 ₽/шт
27
02112-0308A
Болт
1 060 ₽/шт
28
09162-03001
Шайба блокирующая
900 ₽/шт
29
13370-40600
Valve assy,need
30
09280-08014
O RING(D:1.5,ID:8.5)
1 560 ₽/шт
31
09491-68002
Жиклер главный
790 ₽/шт
31
09491-66002
Жиклер главный
790 ₽/шт
31
09491-64002
Жиклер главный
790 ₽/шт
31
09491-70011
Жиклер главный
790 ₽/шт
31
09491-60007
Жиклер главный
864 ₽/шт
