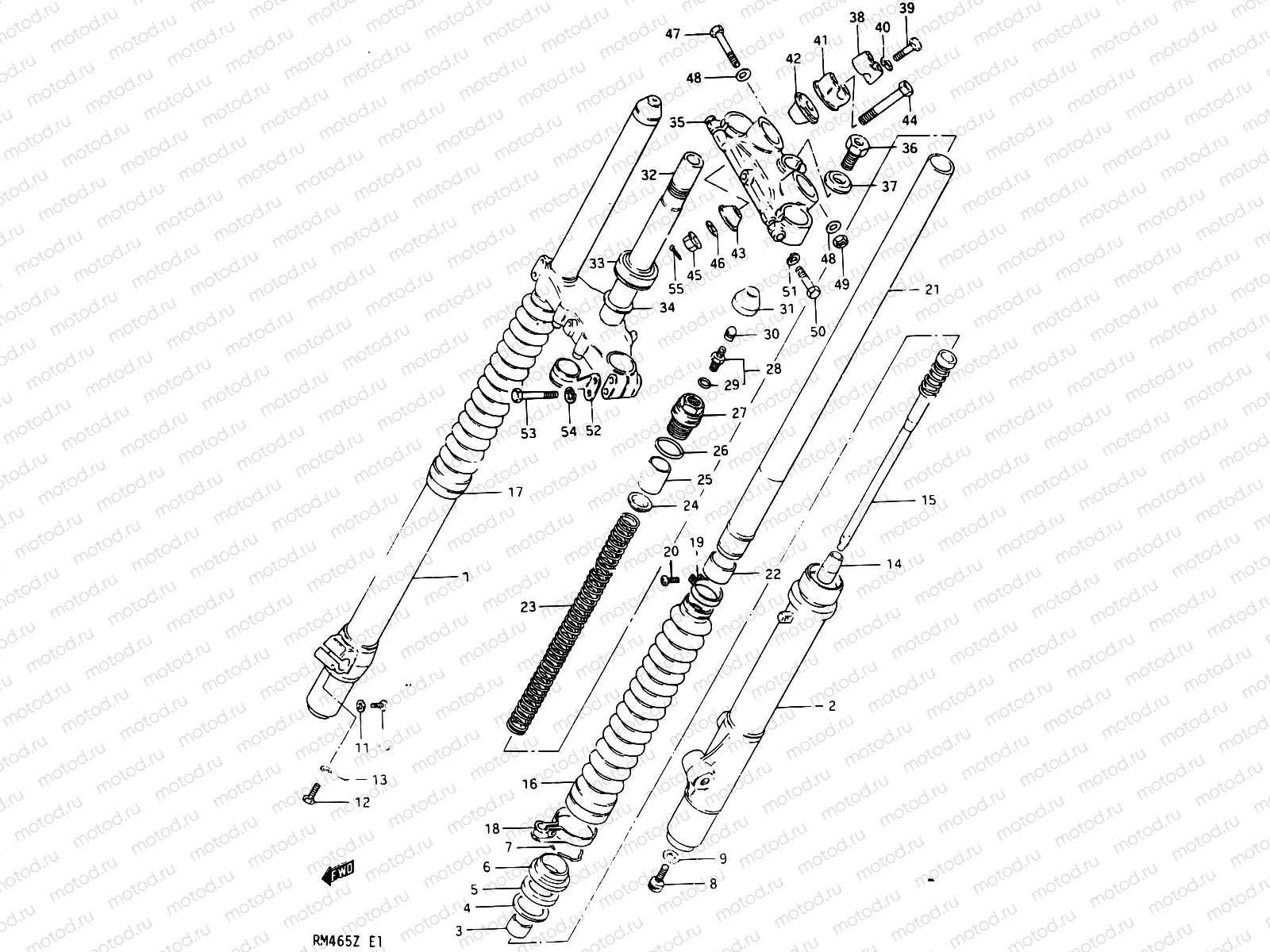

27 - FRONT FORK (MODEL Z)

27 - FRONT FORK (MODEL Z)
Например: 51130-14260
1
51130-14260
.outer tube, rh
2
51140-14260
.outer tube, lh
3
51167-40C00
METAL,SLIDE
727 ₽/шт
4
51158-14200
Шайба
275 ₽/шт
5
51153-14260
.oil seal
6
51173-14260
.dust seal
7
51156-14200
Кольцо
1 195 ₽/шт
8
51147-14200
Vis
9
51148-14200
GASKET
176 ₽/шт
10
02112-04087
Винт 4X8
85 ₽/шт
11
51183-03010
Прокладка
149 ₽/шт
12
01500-08307
Болт
97 ₽/шт
13
08321-01087
Пластина замка
81 ₽/шт
14
51195-14200
.piece, oil lock
15
51146-14200
.cylinder
16
51571-14200
.boot
17
51573-14200
.band
18
51572-14200
.clip
19
51575-14200
.band
20
02112-04107
Болт
82 ₽/шт
21
51110-14200
.inner tube
22
51121-14200
Metal,slide fr
23
51171-14200
.spring
24
51172-14200
.guide, spring
25
51176-14260
.spacer
26
51117-14201
O Ring
238 ₽/шт
27
51351-14200
.cap
28
51169-14200
Valve,fr fork a
29
09280-06005
Кольцо уплотнительное
129 ₽/шт
30
51294-40400
Крышка воздушного клапана
403 ₽/шт
31
51189-41220
Cap,fr fork air
32
51410-14260-08C
.stem, steering
33
09265-30034
Bearing
3 392 ₽/шт
34
09181-30184
SHIM(30X40X1.5)
194 ₽/шт
35
51311-14200-08C
.stem head, steering
36
51351-41320
Vis
37
51356-41310
WASHER
628 ₽/шт
38
56211-40300-08C
.holder, handle upper
39
01550-0835A
Болт
119 ₽/шт
40
08321-01087
Пластина замка
81 ₽/шт
41
56221-14200-08C
.holder, handle lower
42
56241-14200
Демпфер верхний
3 030 ₽/шт
43
56242-14200
Демпфер нижний
2 229 ₽/шт
44
56321-28C00
Болт
765 ₽/шт
45
08319-31107
Гайка
210 ₽/шт
46
09160-10035
Шайба
136 ₽/шт
47
01500-08507
Болт
1 840 ₽/шт
48
08322-01087
Шайба
81 ₽/шт
49
08310-00087
Гайка 8MM
81 ₽/шт
50
01500-1045A
Болт
1 840 ₽/шт
51
08321-01087
Пластина замка
81 ₽/шт
52
58621-14200
.clip
53
01500-0840A
Болт
102 ₽/шт
54
08321-01087
Пластина замка
81 ₽/шт
55
04111-2020A
Штифт
81 ₽/шт
55
51100-14260-08C
Front fork assy
