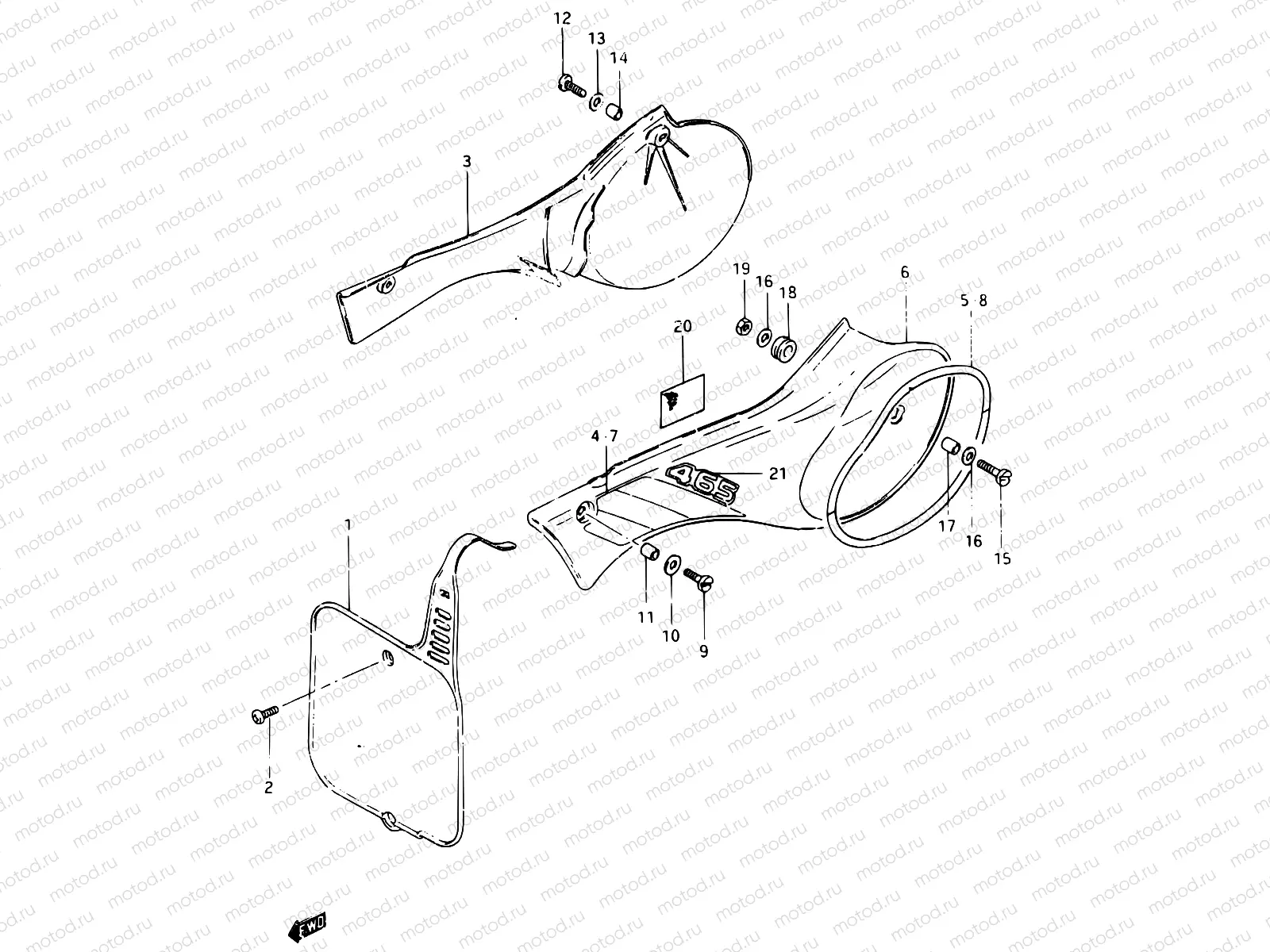

25 - FRAME COVER (MODEL Z)

25 - FRAME COVER (MODEL Z)
Например: 94911-00B10-25Y
1
94911-00B10-25Y
PLATE,FRONT NUMBER(YELLOW)
6 375 ₽/шт
2
02142-05167
Винт воздухозаборника №2
81 ₽/шт
3
09169-06011
Пластина замка
759 ₽/шт
3
47111-14120-163
Cover,frame rh
3
02112-0616A
Болт
81 ₽/шт
3
09180-06245
SPACER(6.1X8X3.5)
162 ₽/шт
3
09160-06084
Шайба 6.5X18X1
81 ₽/шт
4
68136-14300-67H
Tape, rh
5
68130-14220
Tape, side number
6
47211-14120-163
Cover,frame lh
6
09160-06084
Шайба 6.5X18X1
81 ₽/шт
6
02112-0616A
Болт
81 ₽/шт
6
09180-06245
SPACER(6.1X8X3.5)
162 ₽/шт
6
09169-06011
Пластина замка
759 ₽/шт
7
68146-14300-67H
Tape, lh
8
68140-14220
Tape, side number
9
09123-06007
Screw
10
09160-06084
Шайба 6.5X18X1
81 ₽/шт
11
94928-14100
Spacer, front
12
09123-06021
Screw, rear rh
13
09160-06084
Шайба 6.5X18X1
81 ₽/шт
14
94929-14100
Spacer, rear rh
15
09123-06022
Screw, rear lh
16
09160-06084
Шайба 6.5X18X1
81 ₽/шт
17
94928-14100
Spacer, rear lh
18
09320-10015
САЙЛЕНТБЛОК
226 ₽/шт
19
08310-00067
Гайка
81 ₽/шт
20
47167-28C10
Shield,frame co
21
68131-14220-64D
Emblem
