Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI RM 465 SUZUKI RM465 X SUZUKI 39 - REAR WHEEL

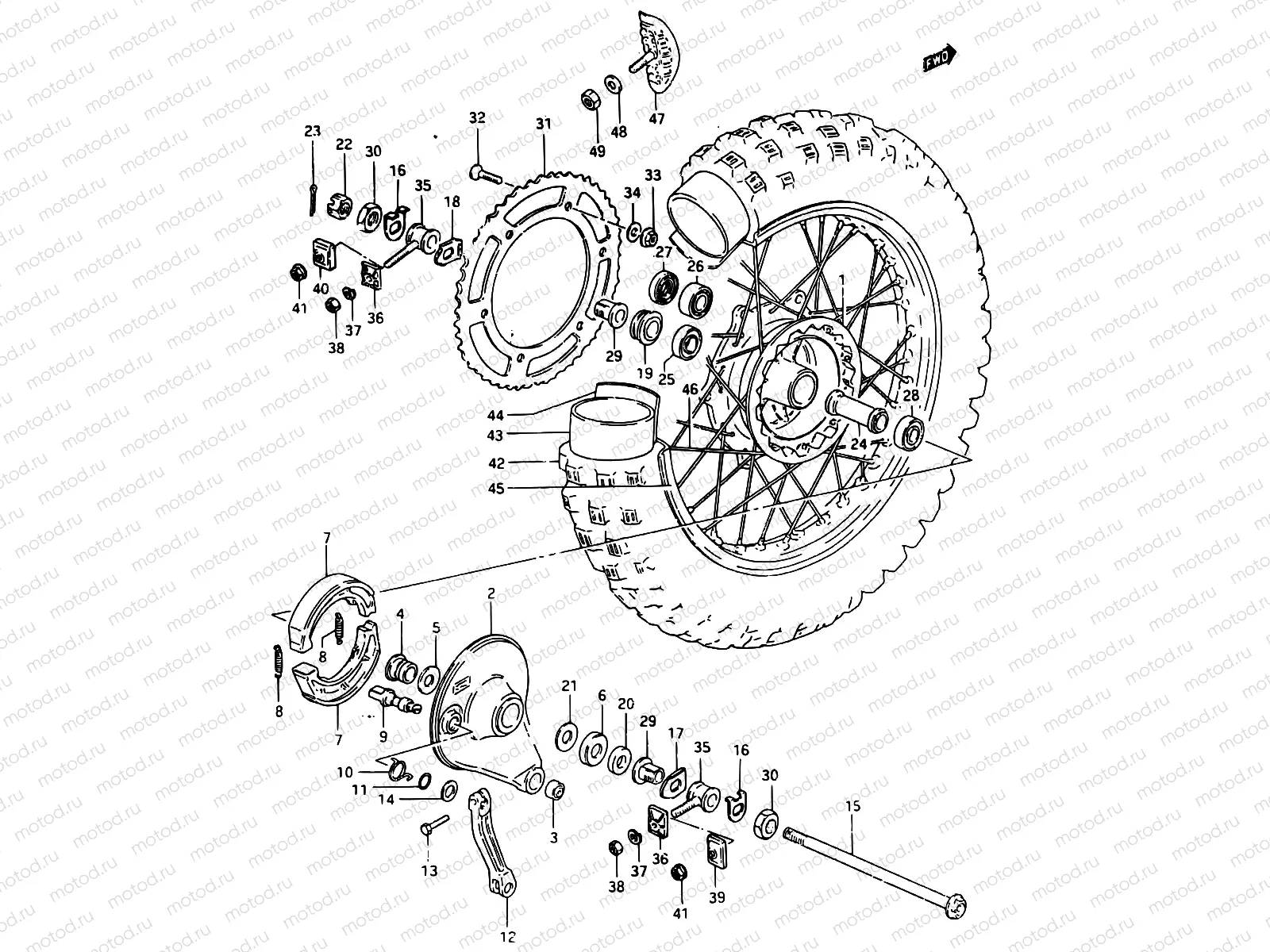

39 - REAR WHEEL

39 - REAR WHEEL
Например: 64110-14203
1
64110-14203
Hub, rear wheel
1
64110-14202
Hub, rear wheel
2
64200-14821
Panel, rear hub
3
64352-40401
Roulement
4
64213-14100
Spacer,rr hub p
5
09283-20031
SEAL,OIL(20X27X5)
339 ₽/шт
6
64845-14100
Cover,rr brake
7
64400-40810
SHOE SET,BRAKE
3 284 ₽/шт
8
09443-08021
Spring
9
54441-14101
CAM,FR BRAKE
1 572 ₽/шт
10
09448-30007-XC0
Пружина
1 008 ₽/шт
11
09280-12001
O RING(D:2.5,ID:11.4)
1 020 ₽/шт
12
64451-14100
Lever,rr brake
13
09118-06086
Болт 6X25
1 680 ₽/шт
14
09160-12011
Уплотнение
97 ₽/шт
15
64711-1420V
AXLE,REAR (Rear)
16
64712-14201
Washer
16
64712-14300
Washer
17
64782-14200
Washer, inner rh
18
64792-14200
Plate, inner lh
19
64750-14220
Spacer, axle lh
19
64751-14220
Spacer, axle lh
20
64741-14200
Spacer, axle rh
20
65741-14210
Spacer, axle rh
21
09181-15223
SHIM(15X28X1)
194 ₽/шт
22
09141-14004
Гайка
3 210 ₽/шт
23
04111-3030A
Стопор
81 ₽/шт
24
64730-14200
Spacer,rr hub b
25
08123-6202B
Wheel bearing
26
09267-15001
Bearing, lh
27
09285-22003
Oil seal
28
08143-62027
ПОДШИПНИК (15×35×11)
937 ₽/шт
29
64781-14201
Spacer, chain adjuster
30
09140-22006
Nut
31
64511-14200
Sprocket, rear (nt:49)
31
64511-14210
Sprocket, rear (nt:47)
32
09120-08004
Болт
162 ₽/шт
32
09120-08009
SCREW(8X40)
2 230 ₽/шт
33
08319-31087
Гайка
178 ₽/шт
34
08322-01087
Шайба
81 ₽/шт
35
61410-14220
Adjuster, chain
35
61410-14131
Adjuster chain
36
61421-14220
Plate
37
08321-01107
Шайба, стопорная
85 ₽/шт
38
08310-00107
Гайка
85 ₽/шт
39
61421-14220
Plate r
40
61431-14200
Plate l
41
08319-31107
Гайка
210 ₽/шт
42
65100-14230
Tire (510-18)
42
65100-14120
Tire (510-18)
42
65100-14250
Tire (510-18)
42
65100-14240
Tire (510-18)
42
65100-14210
Tire (510-18)
43
65200-40430
Tube, wheel inner
44
55261-26F10
PROTECTOR,INNER TUBE
486 ₽/шт
45
65311-14240
Rim, wheel (250x18)
46
65320-14202
Spoke assy, rear
47
65270-14600
Stopper bead
48
08322-01087
Шайба
81 ₽/шт
49
08310-00087
Гайка 8MM
81 ₽/шт
