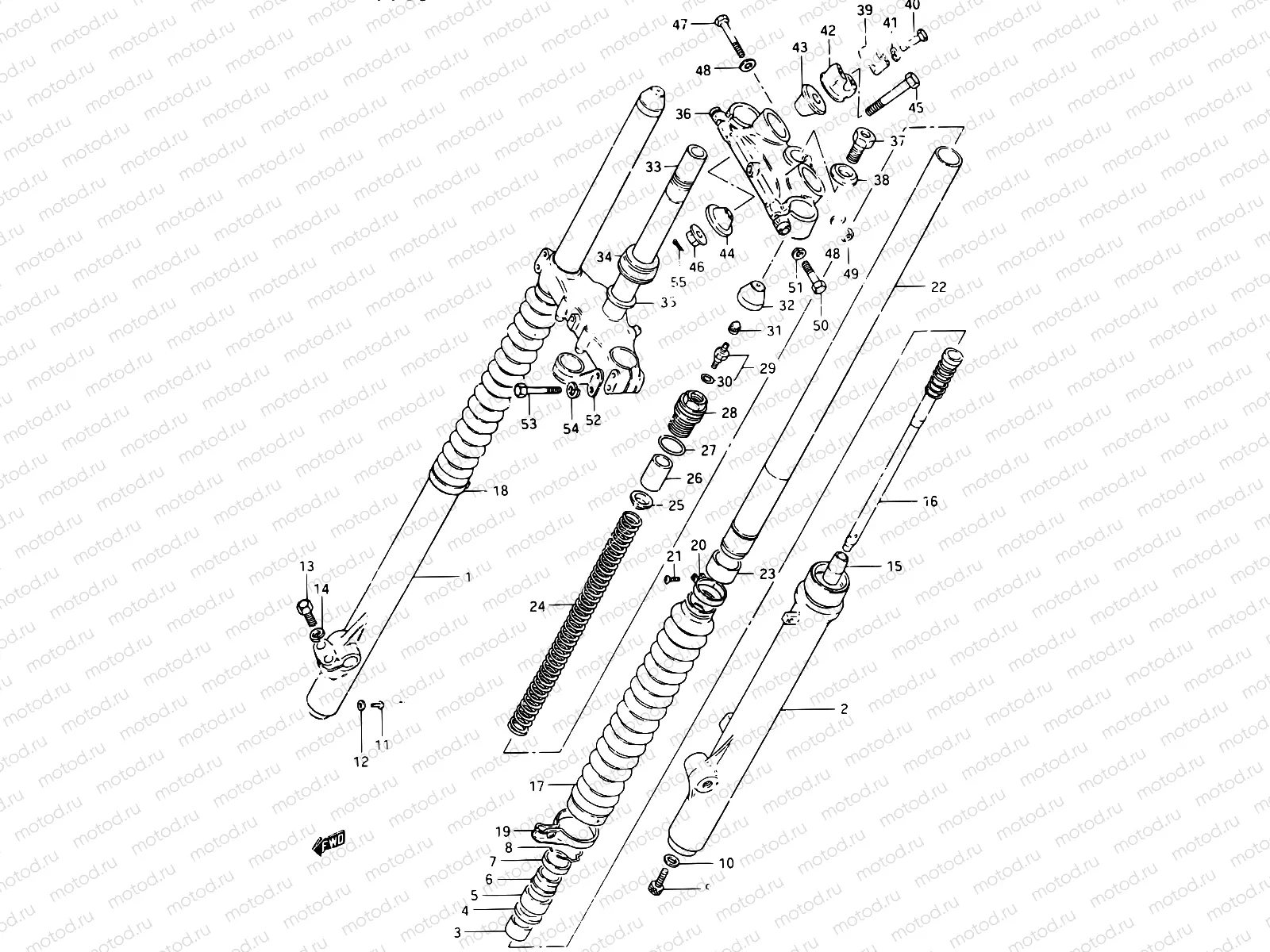

26 - FRONT FORK (MODEL X)

26 - FRONT FORK (MODEL X)
Например: 51131-14200
1
51131-14200
.outer tube, rh
2
51141-14200
.outer tube, lh
3
51167-40C00
METAL,SLIDE
727 ₽/шт
4
51158-14200
Шайба
275 ₽/шт
5
51153-14330
Сальник
1 428 ₽/шт
5
51173-14330
SEAL,DUST
748 ₽/шт
6
51173-14200
.dust seal
7
51149-14200
.case, dust seal
8
51156-14200
Кольцо
1 195 ₽/шт
9
51147-14200
Vis
10
51148-14200
GASKET
176 ₽/шт
11
02112-04087
Винт 4X8
85 ₽/шт
12
51183-03010
Прокладка
149 ₽/шт
13
01500-08307
Болт
97 ₽/шт
14
08321-01087
Пластина замка
81 ₽/шт
15
51195-14200
.piece, oil look
16
51146-14200
.cylinder
17
51571-14200
.boot
18
51573-14200
.band
19
51572-14200
.clip
20
51575-14200
.band
21
02112-04107
Болт
82 ₽/шт
21
51100-14200-08C
Front fork assy
22
51110-14200
.inner tube
23
51121-14200
Metal,slide fr
24
51171-14200
.spring
25
51172-14200
.guide, spring
26
51176-14200
.spacer
27
51117-14201
O Ring
238 ₽/шт
28
51351-14200
.cap
29
51169-14200
Valve,fr fork a
30
09280-06005
Кольцо уплотнительное
129 ₽/шт
31
51294-40400
Крышка воздушного клапана
403 ₽/шт
32
51189-41220
Cap,fr fork air
33
51410-14200-08C
.stem, steering
34
09265-30034
Bearing
3 392 ₽/шт
35
09181-30184
SHIM(30X40X1.5)
194 ₽/шт
36
51311-14200-08C
.stem head, steering
37
51351-41320
Vis
38
51356-41310
WASHER
628 ₽/шт
39
56211-40300-08C
.holder, handle upper
40
01550-0835A
Болт
119 ₽/шт
41
08321-01087
Пластина замка
81 ₽/шт
42
56221-14200-08C
.holder, handle lower
43
56241-14200
Демпфер верхний
3 030 ₽/шт
44
56242-14200
Демпфер нижний
2 229 ₽/шт
45
56321-28C00
Болт
765 ₽/шт
46
08319-31107
Гайка
210 ₽/шт
47
01500-08507
Болт
1 840 ₽/шт
48
08322-01087
Шайба
81 ₽/шт
49
08310-00087
Гайка 8MM
81 ₽/шт
50
01500-1045A
Болт
1 840 ₽/шт
51
08321-01087
Пластина замка
81 ₽/шт
52
58621-14200
.clip
53
01500-0840A
Болт
102 ₽/шт
54
08321-01087
Пластина замка
81 ₽/шт
55
04111-2020A
Штифт
81 ₽/шт
