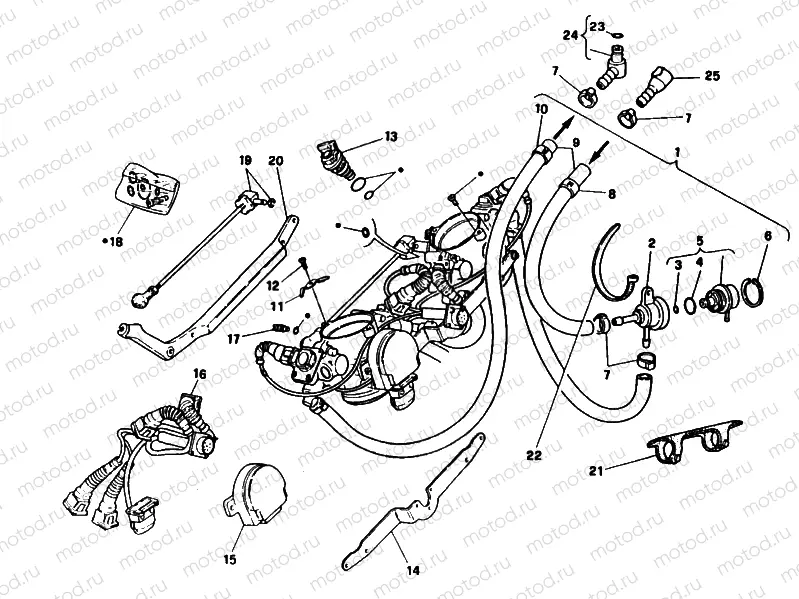

THROTTLE BODY » INTAKE, CARBURETTOR

THROTTLE BODY » INTAKE, CARBURETTOR
Например: 28240131B
1
28240131B
FEED UNIT ASSEMBLY
2
83010912A
HOLDER, RECTIFIER
3
88640211A
O-Ring
4
88640221A
pc - O-Ring
5
28340051A
REGULATOR, PRESSURE
6
735033449
Seeger
7
28740241B
pc - Collier (16,8 mm)
8
74140411A
.CLAMP R
9
59010631A
PIPE
10
74140401A
.CLAMP M
11
79910522A
Spring
12
M470412
.SCREW
13
28040051A
INJECTOR
14
83011211A
.CONNECTOR HOLDER
15
28440011B
POTENTIOMETER PF09/04
16
51010911A
THROTTLE BODY WIRING
17
28740281A
BY-PASS ADJUSTING SCREW
18
28740291A
REPAIR KIT
20
83010901A
BRACKET
21
74110111A
.PAD
22
069191030
pc - Collier
23
88641181A
O-Ring
24
58840111A
JOINT IN
25
58840041A
UNION, QUICK-COUPLING
