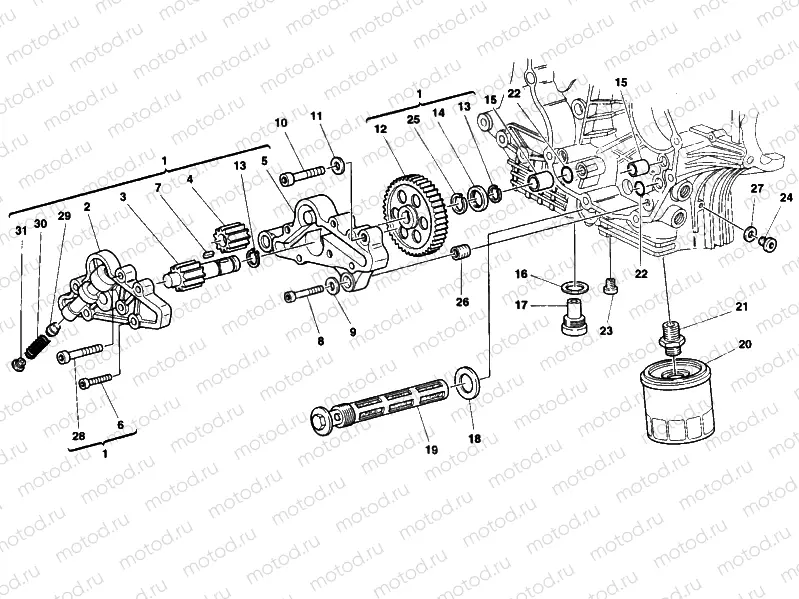

OIL PUMP - FILTER » LUBRICATION SYSTEM

OIL PUMP - FILTER » LUBRICATION SYSTEM
Например: 17420141B
1
17420141B
Pompe à huile
2
24711041A
Oil pump cover
3
17410021A
GEAR, OIL PUMP DRIVE
4
066070065
GEAR, PUMP DRIVEN
5
25020301A
PUMP BODY
6
77350678B
Vis
7
68010011B
2 pc - .WOODRUFF KEY 4X4X8
8
77110471A
pc - Vis
9
85310041A
.SPRING WASHER 6 MM
10
77151292B
.SCREW M8X40
11
85310021A
pc - Rondelle (spring)
12
17410121A
PUMP GEAR
13
88450361A
pc - Seeger
14
71010011A
SPINDLE, TAPER
15
075949280
Dowel pin
16
22032083A
Rondelle
17
89410091A
OIL DRAIN PLUG 996 R-RS/99
18
78710091A
Rondelle
19
89420041A
OIL NET FILTER
20
44440039A
Filtre à huile
21
81510281A
BOLT UNION
22
88641321A
O-Ring
23
77910262A
.SCREW M12X1
24
77911622A
5 pc - Vis
25
88440421A
.SPRING RING
26
067049310
BUSH
27
85211951A
Rondelle
28
77350712B
pc - Vis
29
59310181A
BY-PASS VALVE
30
79910551A
BYPASS SPRING
31
78010181A
.BYPASS CAP
