Главная Каталог товаров DUCATI EPC 1997 DUCATI Superbike 916 R DUCATI 1997 GEAR CHANGE MECHANISM » UNCLASSIFIED

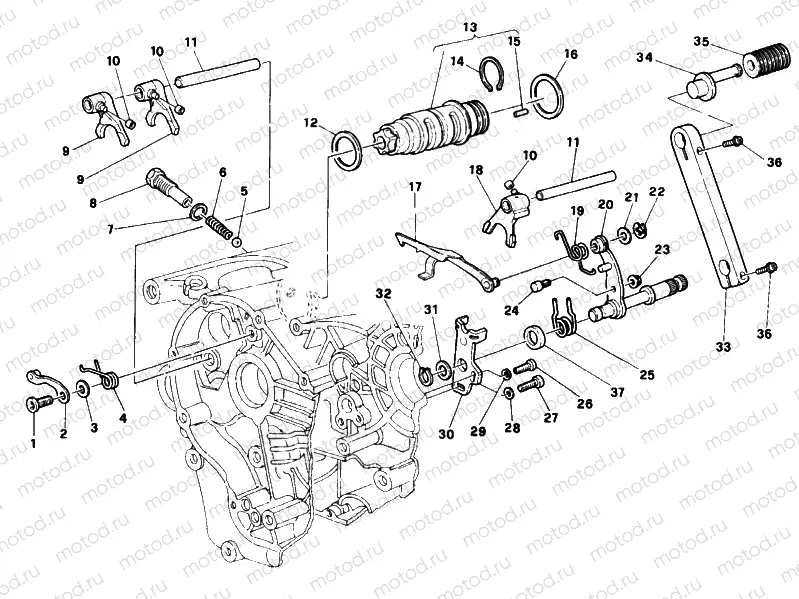

GEAR CHANGE MECHANISM » UNCLASSIFIED

GEAR CHANGE MECHANISM » UNCLASSIFIED
Например: 77910391A
1
77910391A
Vis (M8x21,5)
2
45520181A
GEAR FIXING CLICK ASSEMBLY
3
85210532A
Rondelle
4
79910491A
2 pc - SPRING, RETURN
5
768351134
0 pc - .BALL 11MM
6
066013143
pc - GEAR SELECTOR SPRING
7
027291090
pc - .GASKET 16.2X24X2
8
77912033A
.SCREW M16X1.5
9
18010092A
GEAR SELECTOR FORK,1ST/4TH-2ND/3RD
10
71010071A
BUSH
11
82113881A
FORK PIN
12
85210051A
pc - .THRUST WASHER 1 MM
12
85210061A
. THRUST WASHER 02MM
12
85210071A
. THRUST WASHER 0.3 MM
13
18220062B
FORK DRUM
14
88210061A
.NEEDLE RETAINING RING
15
82110701A
.SPECIAL ROLLER
16
066013060
.THRUST WASHER 45.2X49X1.0
16
066013061
.THRUST WASHER 45.2X49X0.2
16
066013062
.THRUST WASHER 45.2X49X0.3
17
18020261A
CONTROL FORK
18
18010102A
GEAR SELECTOR FORK 5TH/6TH
19
79912961A
Return spring
20
82110011A
GEAR SELECTOR SHAFT
21
076592205
.THRUST WASHER 10.5X15X0.2
22
88450341B
pc - . SPRING RING
23
74810401A
20 pc - Nut
24
066013165
.GEARCHANGE LEVER PIN
25
79915061A
SPRING, SHIFT RETURN
26
77150678B
pc - Vis
27
77151238C
0 pc - Vis (M8x18)
28
85310021A
pc - Rondelle (spring)
29
85211721A
Rondelle (6x14.2x1.3)
30
82610261A
STOPPER PLATE
31
040029126
.THRUST WASHER 15.5X22X0.5
32
735001542
Seeger
33
45610021A
Gear change pedal
34
82110691A
ECCENTRIC PIN
35
76510171A
Damper
36
77150668B
Vis
37
88110121A
CENTERING RING
