Главная Каталог товаров DUCATI EPC 1997 DUCATI Superbike 916 R DUCATI 1997 INTAKE MANIFOLD » INTAKE, CARBURETTOR

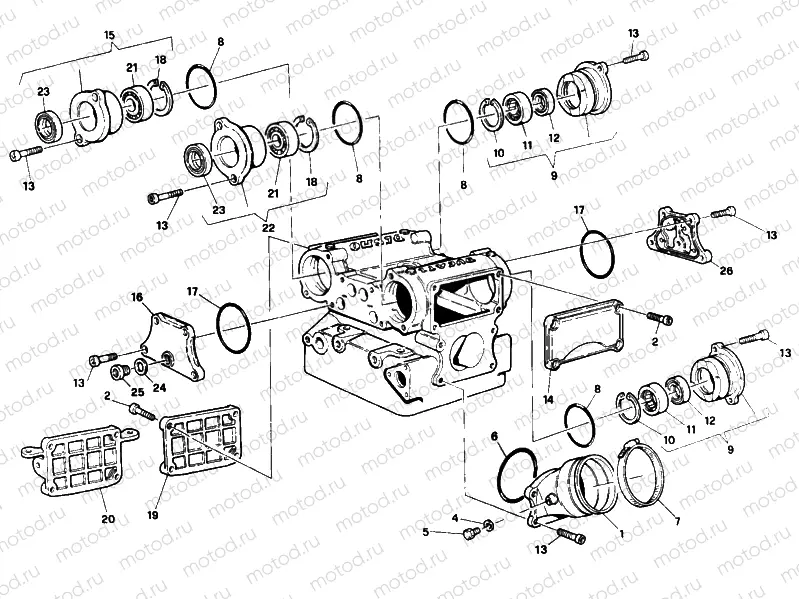

INTAKE MANIFOLD » INTAKE, CARBURETTOR

INTAKE MANIFOLD » INTAKE, CARBURETTOR
Например: 14010032B
1
14010032B
Pipe d’admission
2
77150648B
pc - Vis
4
025070223
10 pc - Rondelle
5
77650328A
Vis (M5x8)
6
88640251A
O-Ring
7
74140601A
2 pc - Collier
8
88650041A
2 pc - O-Ring
9
23520021AA
CAP
10
735033380
Seeger
11
757941542
Roulement
12
93040331A
.OIL SEAL
13
77150658B
Vis
14
24010011AB
COVER, INTAKE VALVE
15
23520101B
CAP
16
24710991AA
CENTRAL COVER
17
88650101A
O-Ring
18
735033683
Seeger
19
24010021A
EXHAUST VALVE COVER
20
24010151A
EXHAUST VALVE COVER
21
70250131A
BEARING
22
23520111B
CAP
23
937832235
.OIL SEAL 22-35-7
24
42020008A
10 pc - Rondelle
25
77110051A
Vis (spec)
26
24710991BA
CENTRAL COVER
