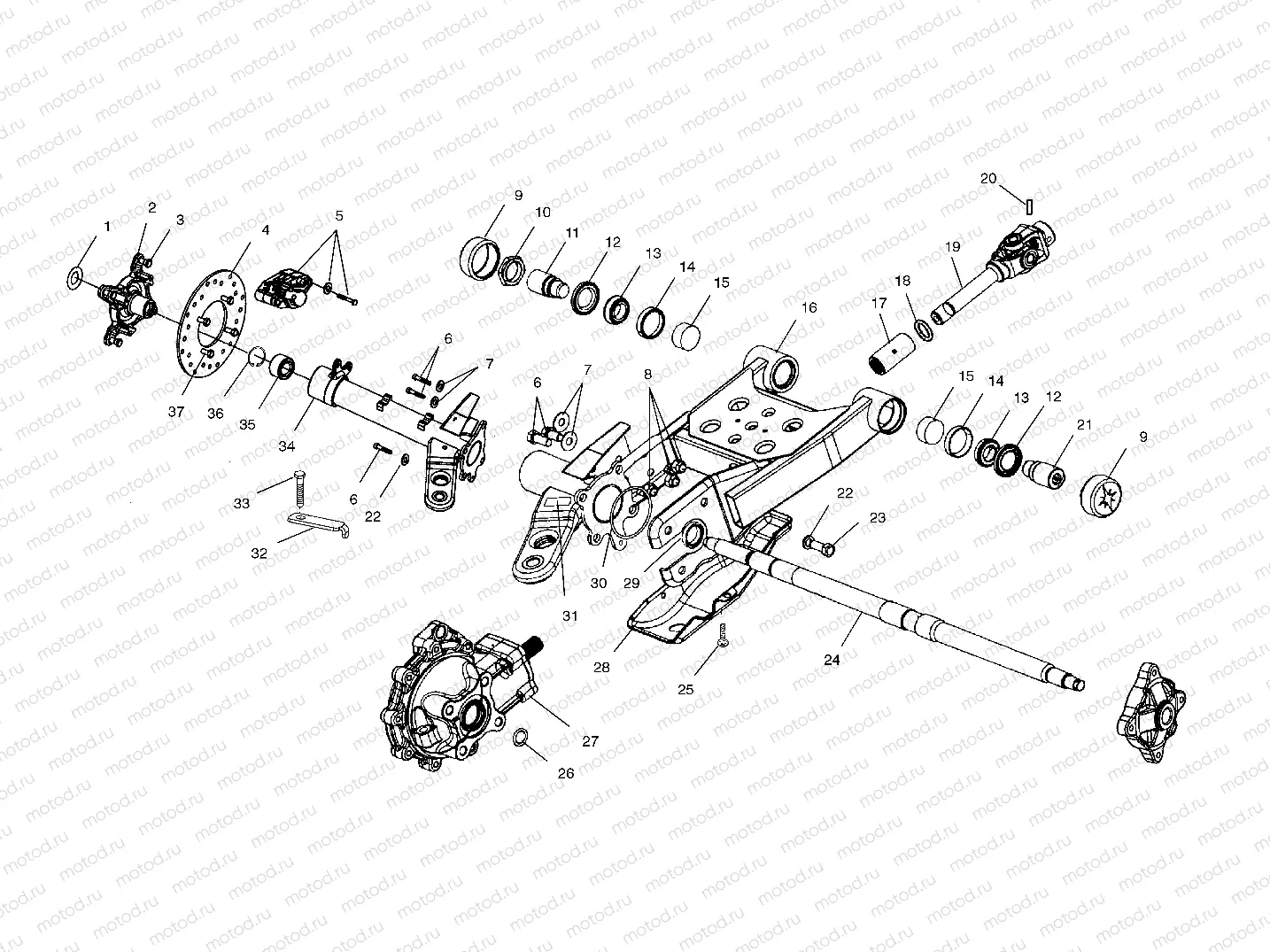

SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08) | SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08)

SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08) | SWING ARM/REAR GEARCASE MOUNTING - A02CB50FC (4974857485C08)
Например: 5412022
1
5412022
O-RING-0.739X0.879X0.070
2
5132627
HUB-WHEEL 2WD MACHINED
3
7515523
STUD
4
5244882
DISC-BRAKE REAR 8.125X.188
5
7552603
Rondelle (Lock)
5
LR--
CALIPER, BRAKE, RH
5
7515481
Vis
6
7517604
Vis
7
7555721
Rondelle
8
7547065
NUT-1/2-20 NYLOK Y
9
5411532
CAP,SWINGARM PIVOT
10
5131863
NUT JAM SWINGARMPIVOT
11
5131864
PIVOT SWINGARM THREADED
12
3610072
SEAL,SWINGARM PIVOT
13
3554506
BRG TAPER.ROLL.CONE
14
3554507
BRG TAPER ROLL CUP
15
5411602
SEAL-SWINGARM PIVOT
16
1541577
SWINGARM,ASM. (Incl. 14,15)
17
7080433
FITTING LUBRICATION THREADED(1
17
5132201
COUPLING-PROP SHAFT GREASED
18
5411092
O-RING
19
1380137
PROPSHAFT ASM REAR
20
7661913
PIN SPRING
21
5132683
PIVOT-SWINGARM RH
22
7553201
Rondelle (Lock)
23
7517585
BOLT-1/2-13X1 1/4 HXHD GR5-Z
24
5132699
AXLE-REAR
25
7517612
Vis
26
5411531
O-Ring
28
5242851-067
PLATE-SKID,REAR HOUSING,BLK
28
5811716
PAD-RUBBER
28
1012881
SKID PLATE,REAR
29
5132698
COLLAR-AXLE LOCK
30
5411707
O-Ring
31
7078261
DECAL-HITCH (1225)
32
5245050
CLAMP-BRAKE LINE REAR
33
7512017
Vis
34
1013264-067
AXLE TUBE LH BLK VL
35
3514634
BEARING-WHEEL 35X64X37MM
36
7710507
RING RET. 2.500 INTERNAL
37
7512325
Vis
